Fabtech Motorsports Basic System 6 Inch Lift Kit Suspension - K1024
Color
Black Components/ White Shock Absorbers
Front Lift Amount (IN)
6 Inch
Front Lift Type
Strut Assembly Spacer
Maximum Tire Size
35 x 12.50
Minimum Wheel Diameter
17
Rear Lift Amount (IN)
6 Inch
Rear Lift Type
Leaf Spring Block
Shock Type
Rear Hydraulic
Shocks
With Shocks In Kit
Wheel Backspacing (IN)
5.00
Wheel Offset (MM)
13
Share this page
Fabtech Motorsports Lift Kit Suspension

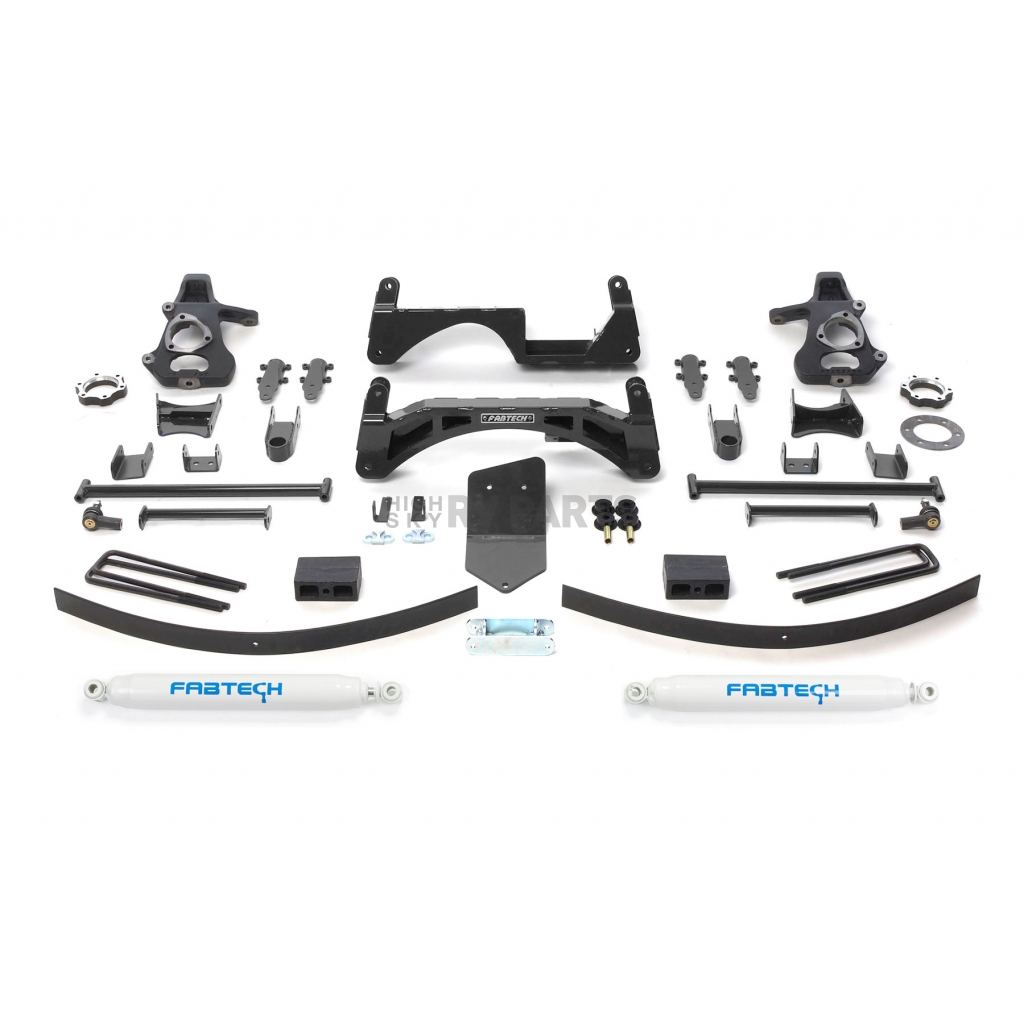

Lift Kit Suspension; Basic System; 6 Inch Front Lift; 6 Inch Rear Lift; With Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; Includes Front And Rear Crossmembers/ Driver And Passenger Differential Brackets/ Differential Skid Plate/ Crossmember Support Tube/ Shock Brackets And Extensions/ Driver And Passenger Spindles/ C.V. Spacer/ Sway Bar Frame Brackets/ Lift Blocks With Hardware and Bump Stops/ All Hardware
MPN: K1024
Our 6 Inch Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35 Inch tall Tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm cross members are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4 Inch thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. The Basic system features all the above componentry with a front coilover spacer system utilizing the factory coilover assembly for a stock like ride. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle's computer.
Front Lift Amount (IN): 6 Inch
Rear Lift Amount (IN): 6 Inch
Front Lift Type: Strut Assembly Spacer
Rear Lift Type: Leaf Spring Block
Maximum Tire Size: 35 x 12.50
Minimum Wheel Diameter: 17
Wheel Offset (MM): 13
Wheel Backspacing (IN): 5.00
Shocks: With Shocks In Kit
Shock Type: Rear Hydraulic
Color: Black Components/ White Shock Absorbers
Features
- Limited Lifetime Warranty
| Specifications of Fabtech Motorsports Basic System 6 Inch Lift Kit Suspension - K1024 | |
| Color | Black Components/ White Shock Absorbers |
| Front Lift Amount (IN) | 6 Inch |
| Front Lift Type | Strut Assembly Spacer |
| Maximum Tire Size | 35 x 12.50 |
| Minimum Wheel Diameter | 17 |
| Rear Lift Amount (IN) | 6 Inch |
| Rear Lift Type | Leaf Spring Block |
| Shock Type | Rear Hydraulic |
| Shocks | With Shocks In Kit |
| Wheel Backspacing (IN) | 5.00 |
| Wheel Offset (MM) | 13 |
2007-2013 Chevrolet Silverado 1500
2007 Chevrolet Silverado 1500
2008 Chevrolet Silverado 1500
2009 Chevrolet Silverado 1500
2010 Chevrolet Silverado 1500
2011 Chevrolet Silverado 1500
2012 Chevrolet Silverado 1500
2013 Chevrolet Silverado 1500
2008 Chevrolet Silverado 1500
2009 Chevrolet Silverado 1500
2010 Chevrolet Silverado 1500
2011 Chevrolet Silverado 1500
2012 Chevrolet Silverado 1500
2013 Chevrolet Silverado 1500
2007 GMC Sierra 1500
2008 GMC Sierra 1500
2009 GMC Sierra 1500
2010 GMC Sierra 1500
2011 GMC Sierra 1500
2012 GMC Sierra 1500
2013 GMC Sierra 1500
2008 GMC Sierra 1500
2009 GMC Sierra 1500
2010 GMC Sierra 1500
2011 GMC Sierra 1500
2012 GMC Sierra 1500
2013 GMC Sierra 1500
