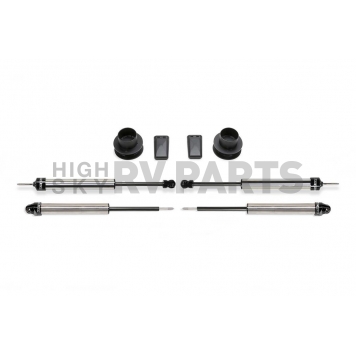

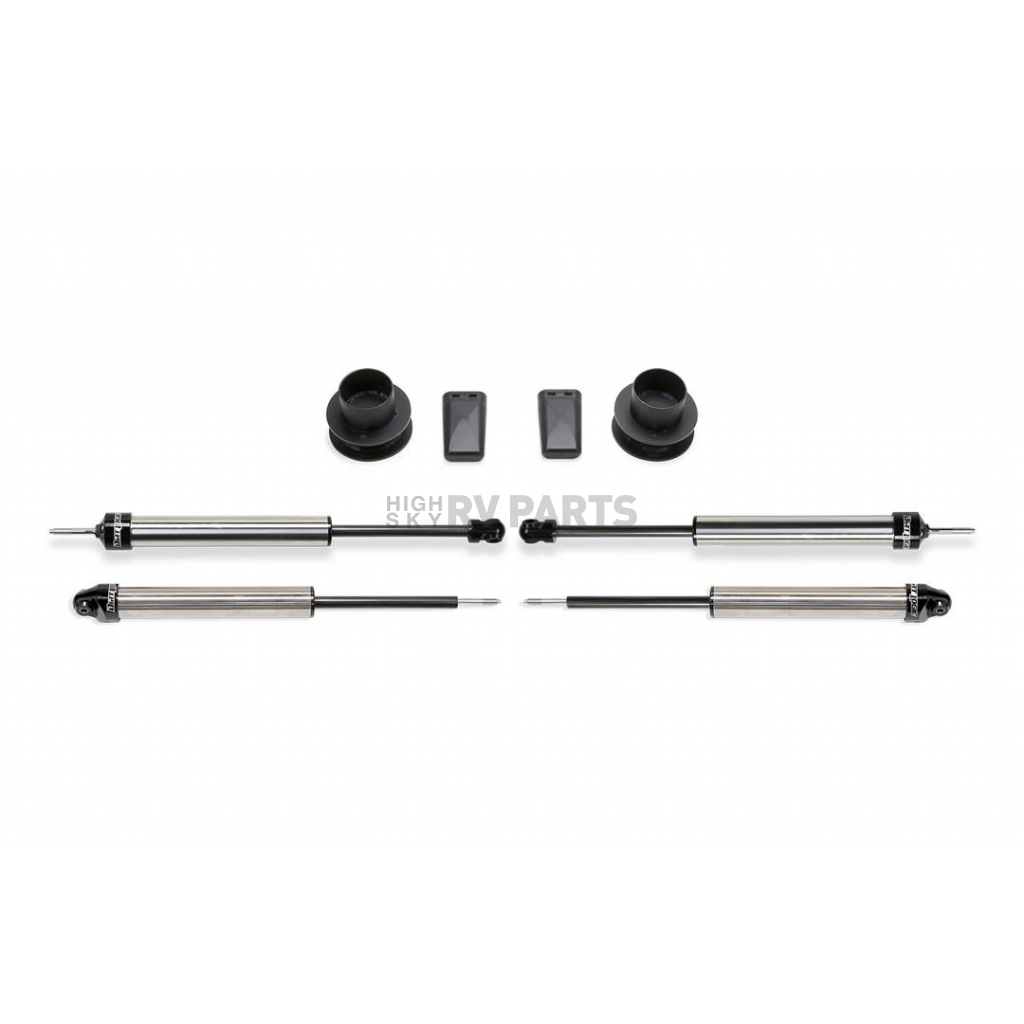

Fabtech Motorsports Leveling Kit Suspension - K3061DL

Authorized Dealer
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: K3061DL
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $1,843.79
Price: $1,755.99
You Save: $87.80
Amount Raised Or Lowered
 2-1/2 Inch Lift
Color
 Silver
Estimated Install Time (Hours)
 2
Includes Shock/Struts
 Yes
Material
 Steel
Maximum Tire Size
 325/65
Minimum Wheel Diameter
 18
Position On Vehicle
 Front
Series
Dirt Logic
Type
 Coil Spring Spacer
Wheel Backspacing (IN)
 4.62
Share this page

Leveling Kit Suspension; Dirt Logic SS; 2-1/2 Inch Lift; Coil Spring Spacers; With Coil Spring Spacers/ Bump Stop Extensions/ Front And Rear Dirt Logic SS Shock Absorbers

MPN: K3061DL

The 2.5 Inch Lift system for 2014 3500 Rams, with Radius Arm front suspension, features more than just basic spacers. Dodge designed the front coil springs with a large bow to increase vehicle stability and handling. Unlike other flat spacers on the market, Fabtech’s angled spacers retain this important feature preserving the factory ride characteristics. The front shocks are replaced with longer length units to allow for full suspension travel while improving the damping of the front suspension. Extended length bump stops are included in this kit to prevent the coil springs from binding at full compression while also eliminating Trac Bar interference.

Position On Vehicle: Front
Amount Raised Or Lowered: 2-1/2 Inch Lift
Type: Coil Spring Spacer
Maximum Tire Size: 325/65
Includes Shock/Struts: Yes
Minimum Wheel Diameter: 18
Wheel Backspacing (IN): 4.62
Wheel Offset (MM): -10
Color: Silver
Material: Steel
Estimated Install Time (Hours): 2

Features

  • Radius Arm Front Suspension, Features More Than Just Basic Spacers
  • The Front Coil Springs With A Large Bow To Increase Vehicle Stability And Handling
  • The Front Shocks Are Replaced With Longer Length Units To Allow For Full Suspension Travel While Improving The Damping Of The Front Suspension
  • Made In USA
  • Limited Lifetime Warranty
Specifications of Fabtech Motorsports Leveling Kit Suspension - K3061DL
Amount Raised Or Lowered  2-1/2 Inch Lift
Color  Silver
Estimated Install Time (Hours)  2
Includes Shock/Struts  Yes
Material  Steel
Maximum Tire Size  325/65
Minimum Wheel Diameter  18
Position On Vehicle  Front
Series Dirt Logic
Type  Coil Spring Spacer
Wheel Backspacing (IN)  4.62
Wheel Offset (MM)  -10

2013 Ram 2500
2014 Ram 2500
2015 Ram 2500
2016 Ram 2500
2017 Ram 2500
2018 Ram 2500
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
2022 Ram 2500
