Fabtech Motorsports Leveling Kit Suspension - K2340DL

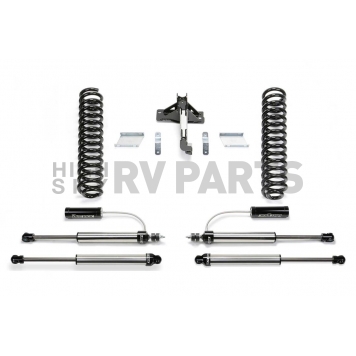

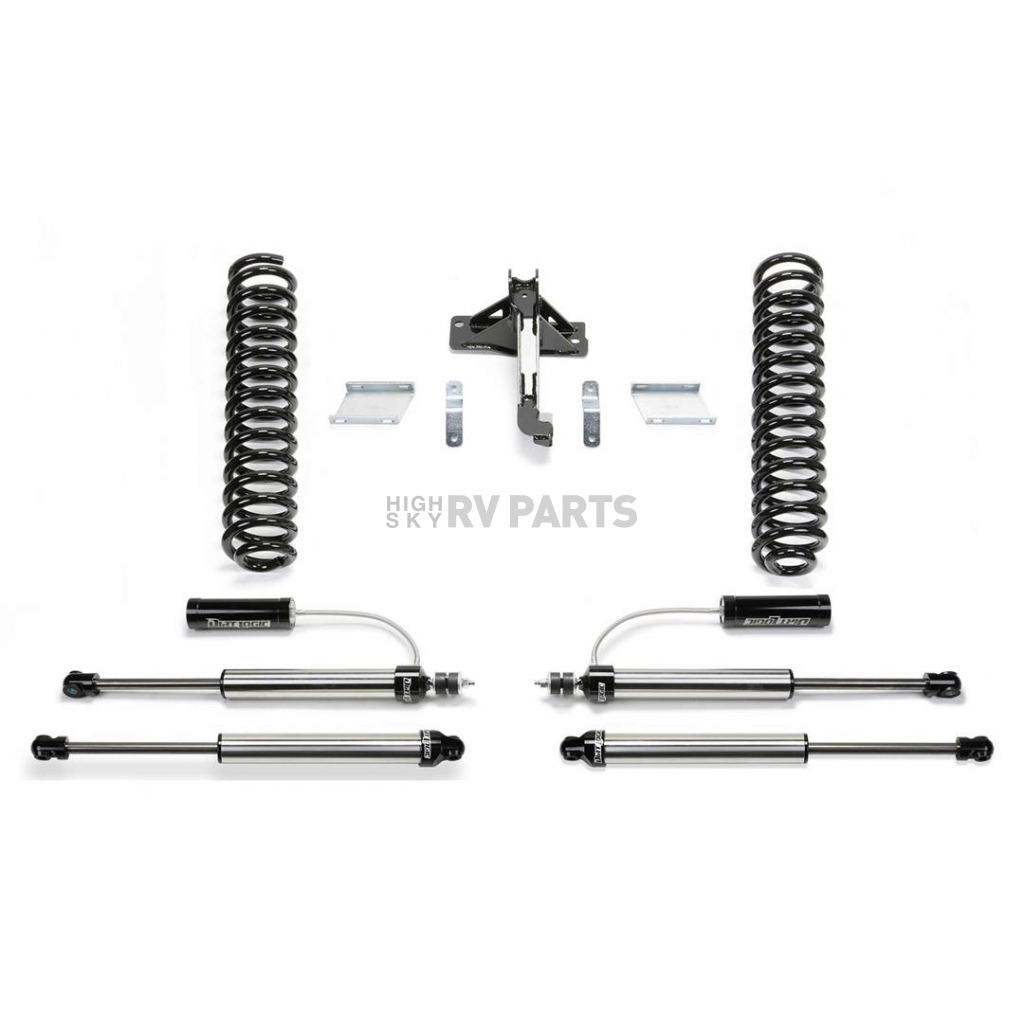

Leveling Kit Suspension; Basic; 2-1/2 Inch Lift; Coil Springs; With Coil Springs/ Track Bar Bracket/ Front Dirt Logic Remote Reservoir And Rear Dirt Logic Shock Absorbers/ Installation Hardware
MPN: K2340DL
This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheelwell openings and this quality 2-1/2 Inch lift kit, you can run 35 Inch tall tires with ease. Fabtech's coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. Typically, once a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar and the location. To address this issue Fabtech provides a heavy-duty 1/4 Inch thick steel Track Bar mount. It repositions the track bar and front axle under the vehicle to the factory specifications. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit comes with Dirt Logic 2.25 shocks. They are constructed with a stainless steel body and a NitroSteel ® piston rod for maximum corrosion resistance and durability. They will provide a superior ride quality both on and offroad with excellent damping for offroad use.Features
- Provide A Superior Ride Quality Both On And Off-Road With Excellent Damping For Off-Road Use
- Provides Bind Free, Reliable Operation
- Constructed With A Stainless Steel Body And A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- To Ensure Product Quality, Fabtech Builds All Of Its Componentry In House
- Limited Lifetime Warranty
Specifications of Fabtech Motorsports Leveling Kit Suspension - K2340DL | |
Amount Raised Or Lowered | 2-1/2 Inch Lift |
Color | Black Component/ Silver Shocks |
Estimated Install Time (Hours) | 2 |
Includes Shock/Struts | Yes |
Material | Stainless Steel |
Maximum Tire Size | 35 x 12.50 |
Minimum Wheel Diameter | 17 |
Series | Dirt Logic |
Type | Coil Spring |
Wheel Backspacing (IN) | 4.75 |
Wheel Offset (MM) | 6.35 |
2017-2023 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2021 Ford F-250 Super Duty
2022 Ford F-250 Super Duty
2023 Ford F-250 Super Duty
2017-2023 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
2021 Ford F-350 Super Duty
2022 Ford F-350 Super Duty
2023 Ford F-350 Super Duty
