Fabtech Motorsports Leveling Kit Suspension - K2333M

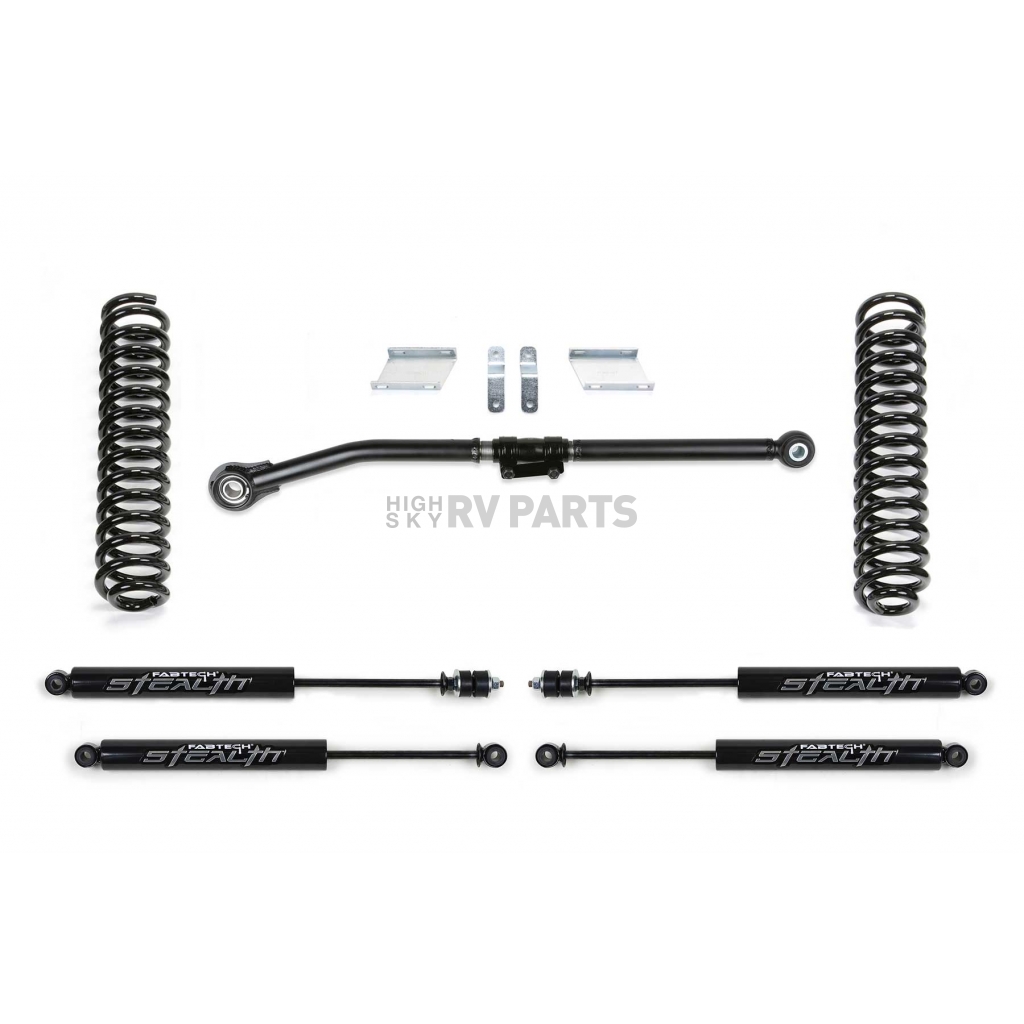

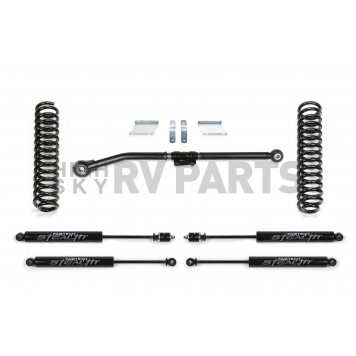

Leveling Kit Suspension; Basic; 2-1/2 Inch Lift; Coil Springs; With Coil Springs/ Track Bar/ Front And Rear Stealth Shock Absorbers/ Installation Hardware
MPN: K2333M
This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheelwell openings and this quality 2-1/2 Inch lift kit, you can run 35 Inch tall tires with ease. Fabtech's coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. To help keep the factory alignment specifications of the vehicle, Fabtech includes 2 degree adjustable alignment ball joint inserts. They help retain the factory caster specifications for optimum driveability. After a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar. To address this issue Fabtech provides a heavy-duty adjustable track bar. The Fabtech track bar allows for on the vehicle adjustment to center the axle under the vehicle. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit includes Fabtech Stealth shocks. They are a sealed monotube shock that has a Nitrocarb piston rod for corrosion resistance and resist rock chipping. They will provide a great highway ride with good offroad damping capacity.Features
- Provide A Superior Ride Quality Both On And Off-Road With Excellent Damping For Off-Road Use
- Provides Bind Free, Reliable Operation
- Sealed Monotube Shock That Has A Nitrocarb Piston Rod For Corrosion Resistance And Resist Rock Chipping
- To Ensure Product Quality, Fabtech Builds All Of Its Componentry In House
- Limited Lifetime Warranty
Specifications of Fabtech Motorsports Leveling Kit Suspension - K2333M | |
Amount Raised Or Lowered | 2-1/2 Inch Lift |
Color | Black |
Estimated Install Time (Hours) | 2 |
Includes Shock/Struts | Yes |
Maximum Tire Size | 35 x 12.50 |
Minimum Wheel Diameter | 17 |
Type | Coil Spring |
Wheel Backspacing (IN) | 4.75 |
Wheel Offset (MM) | 6.35 |
2017-2021 Ford F-250 Super Duty
2018 Ford F-250 Super Duty
2019 Ford F-250 Super Duty
2020 Ford F-250 Super Duty
2021 Ford F-250 Super Duty
2017-2021 Ford F-350 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-350 Super Duty
2021 Ford F-350 Super Duty
