Fabtech Motorsports Leveling Kit Suspension - K1056DL

Authorized Dealer
Brand: Fabtech Motorsports Fabtech Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: K1056DL
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $2,680.64
Price: $2,552.99
You Save: $127.65
Amount Raised Or Lowered
 4 Inch Lift
Color
 Silver
Estimated Install Time (Hours)
 2
Includes Shock/Struts
 Yes
Material
 Steel
Maximum Tire Size
 35 x 13.50
Minimum Wheel Diameter
 18
Series
Dirt Logic
Type
 Torsion Bar Key
Wheel Backspacing (IN)
 5.75
Wheel Offset (MM)
 19
Share this page

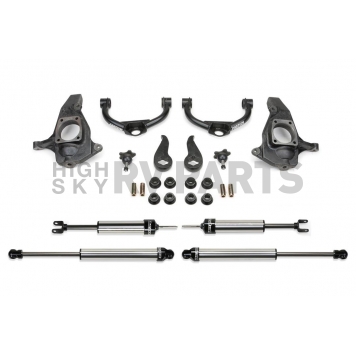

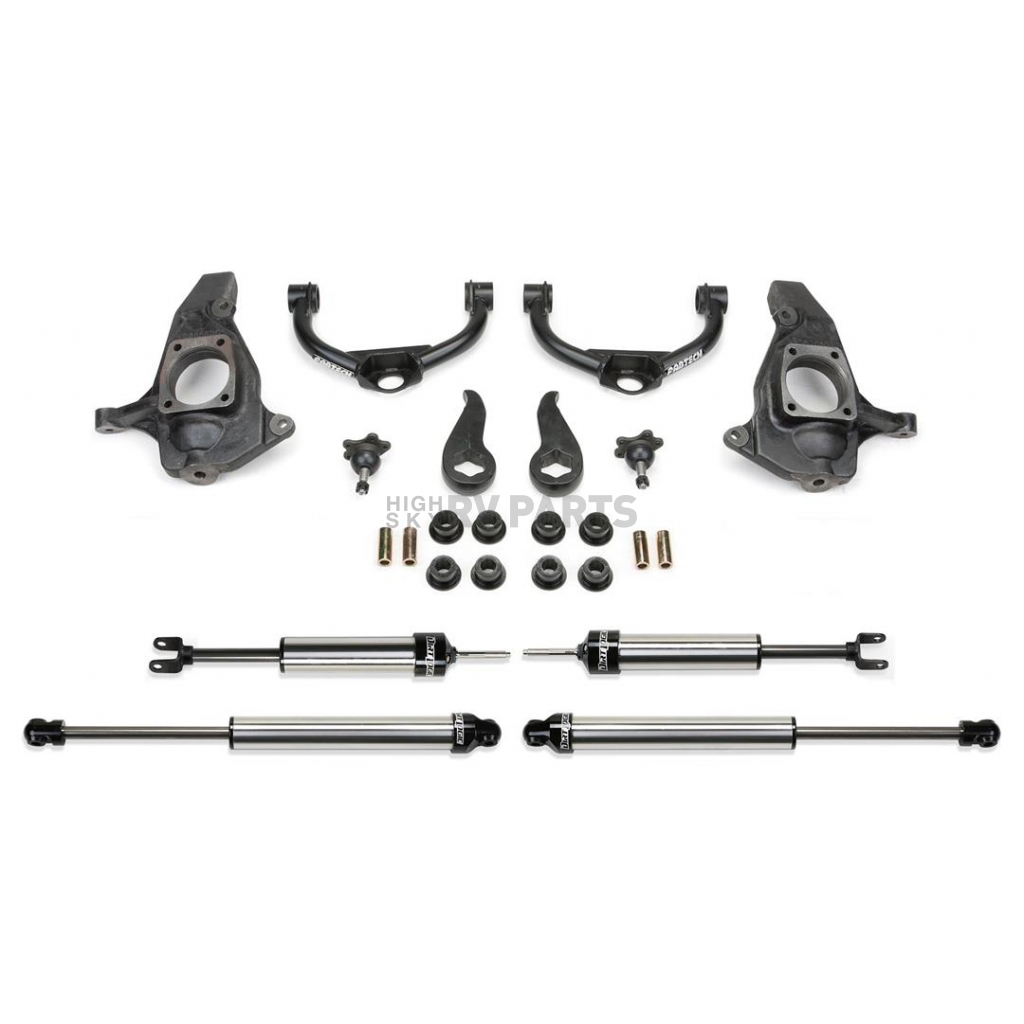

Leveling Kit Suspension; Dirt Logic SS; 4 Inch Lift; Torsion Keys; With Front And Rear Dirt Logic SS Shock Absorbers/ Ball Joint Upper Control Arms/ Torsion Keys/ Front Spindles/ Installation Hardware

MPN: K1056DL

Our 3-1/2 Inch System provides less lift than our 6 Inch RTS ™ system but still allows use of 33 Inch or 35 Inch tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1-1/2 Inch OD 0.120 Inch thick wall DOM tubing that attaches to heavy-duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension.

Amount Raised Or Lowered: 4 Inch Lift
Type: Torsion Bar Key
Maximum Tire Size: 35 x 13.50
Includes Shock/Struts: Yes
Minimum Wheel Diameter: 18
Wheel Backspacing (IN): 5.75
Wheel Offset (MM): 19
Color: Silver
Material: Steel
Estimated Install Time (Hours): 2

Features

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • Extended Range Ball Joints
  • Ductile Iron Steering Knuckles
  • Forged Torsion Bar Keys
  • Limited Lifetime Warranty
Specifications of Fabtech Motorsports Leveling Kit Suspension - K1056DL
Amount Raised Or Lowered  4 Inch Lift
Color  Silver
Estimated Install Time (Hours)  2
Includes Shock/Struts  Yes
Material  Steel
Maximum Tire Size  35 x 13.50
Minimum Wheel Diameter  18
Series Dirt Logic
Type  Torsion Bar Key
Wheel Backspacing (IN)  5.75
Wheel Offset (MM)  19

2011 Chevrolet Silverado 2500 HD
2012 Chevrolet Silverado 2500 HD
2013 Chevrolet Silverado 2500 HD
2014 Chevrolet Silverado 2500 HD
2015 Chevrolet Silverado 2500 HD
2016 Chevrolet Silverado 2500 HD
2017 Chevrolet Silverado 2500 HD
2018 Chevrolet Silverado 2500 HD
2019 Chevrolet Silverado 2500 HD

2011 Chevrolet Silverado 3500 HD
2012 Chevrolet Silverado 3500 HD
2013 Chevrolet Silverado 3500 HD
2014 Chevrolet Silverado 3500 HD
2015 Chevrolet Silverado 3500 HD
2016 Chevrolet Silverado 3500 HD
2017 Chevrolet Silverado 3500 HD
2018 Chevrolet Silverado 3500 HD
2019 Chevrolet Silverado 3500 HD

2011 GMC Sierra 2500 HD
2012 GMC Sierra 2500 HD
2013 GMC Sierra 2500 HD
2014 GMC Sierra 2500 HD
2015 GMC Sierra 2500 HD
2016 GMC Sierra 2500 HD
2017 GMC Sierra 2500 HD
2018 GMC Sierra 2500 HD
2019 GMC Sierra 2500 HD

2011 GMC Sierra 3500 HD
2012 GMC Sierra 3500 HD
2013 GMC Sierra 3500 HD
2014 GMC Sierra 3500 HD
2015 GMC Sierra 3500 HD
2016 GMC Sierra 3500 HD
2017 GMC Sierra 3500 HD
2018 GMC Sierra 3500 HD
2019 GMC Sierra 3500 HD
