Fabtech Motorsports 5 Inch Lift Kit Suspension Stealth Series - K4177M
Color
Black Components
Front Lift Amount (IN)
5 Inch
Front Lift Type
Coil Springs And Lower Control Arms
Maximum Tire Size
37 x 12.50 Stock Fenders/ 40 x 12.50 High Clearance Fenders
Minimum Wheel Diameter
17
Rear Lift Amount (IN)
5 Inch
Rear Lift Type
Coil Springs And Lower Control Arms
Shocks
With Shocks In Kit
Wheel Backspacing (IN)
4.5
Wheel Offset (MM)
-12.7
Share this page
Fabtech Lift Kit Suspension

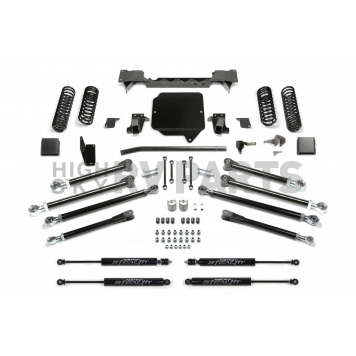

Lift Kit Suspension; Stealth; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Stealth Shock Absorbers In Kit; Black Components; With Front And Rear Coil Springs/ Front And Rear Lower Control Arms/ Stabilizer Bar Links/ Bump Stop Spacers/ Drag Link Flip/ Front And Rear Track Bar Brackets/ Installation Hardware
MPN: K4177M
Front Lift Amount (IN): 5 Inch
Rear Lift Amount (IN): 5 Inch
Front Lift Type: Coil Springs And Lower Control Arms
Rear Lift Type: Coil Springs And Lower Control Arms
Maximum Tire Size: 37 x 12.50 Stock Fenders/ 40 x 12.50 High Clearance Fenders
Minimum Wheel Diameter: 17
Wheel Offset (MM): -12.7
Wheel Backspacing (IN): 4.5
Shocks: With Shocks In Kit
Color: Black Components
Features
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Providing Increased Suspension Travel For Offroad Use
- Brackets Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Stealth Shocks Extended Length Monotube Shocks Have A Nitro Carborized Piston Rod For Corrosion Resistance And Resist Rock Chipping
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Draglink Flip System Provides Bind Free Operation At Full Articulation And Eliminates Bump Steer Throughout The Travel
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Limited Lifetime Warranty
| Specifications of Fabtech Motorsports 5 Inch Lift Kit Suspension Stealth Series - K4177M | |
| Color | Black Components |
| Front Lift Amount (IN) | 5 Inch |
| Front Lift Type | Coil Springs And Lower Control Arms |
| Maximum Tire Size | 37 x 12.50 Stock Fenders/ 40 x 12.50 High Clearance Fenders |
| Minimum Wheel Diameter | 17 |
| Rear Lift Amount (IN) | 5 Inch |
| Rear Lift Type | Coil Springs And Lower Control Arms |
| Shocks | With Shocks In Kit |
| Wheel Backspacing (IN) | 4.5 |
| Wheel Offset (MM) | -12.7 |
2020 Jeep Gladiator JT
