Fabtech Leveling Kit Suspension K3191M

Brand: Fabtech Motorsports Fabtech Motorsports
  • Have a product question? Ask us
  • Part Number: K3191M
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 06
Retail: $704.54
Price: $670.99
You Save: $33.55
Amount Raised Or Lowered
 2-1/2 Inch Lift
Estimated Install Time (Hours)
 2
Maximum Tire Size
 325/60
Minimum Wheel Diameter
 18
Position On Vehicle
 Front
Series
Stealth
Type
 Coil Spring Spacer
Wheel Backspacing (IN)
 4.5
Wheel Offset (MM)
 -12.7
Share this page

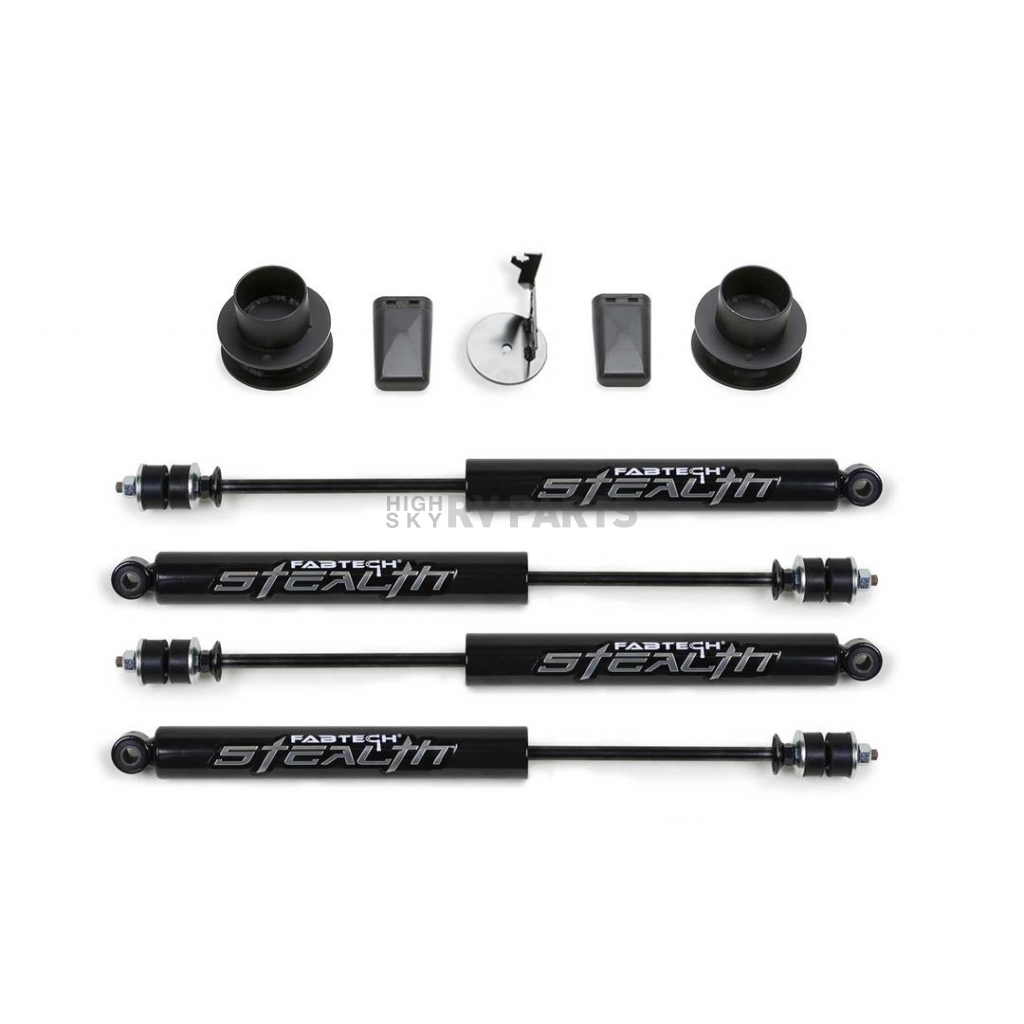

Leveling Kit Suspension; Stealth; 2-1/2 Inch Lift; Coil Spring Spacers; With Coil Spring Spacers/ Bump Stops/ Front And Rear Stealth Shock Absorbers

MPN: K3191M

This 2.5 Inch Ram Lift Kit Has Been Designed To Help Level The Vehicle While Keeping The Stock Ride Quality. It’s Perfect For Ram Owners Looking For A Mild Lift To Clear 35 Inch Tall Tires. The Factory Front Ram Coil Springs Have A Purpose Built Bow In Them To Aid In Vehicle Stabilization And Handling. Fabtech’s Exclusive Front Coil Spacers Retain The Factory Coil Seat Angle And Spring Bow For Stock Like Ride Characteristics. The Front Shocks Are Replaced With Longer Length Units To Allow For Full Suspension Travel While Improving The Damping Of The Ram Suspension. Extended Length Bump Stops Are Included In This Kit To Prevent The Coils From Bind At Full Compression While Eliminating Track Bar Interference. The Stealth Shocks In This Ram Lift Kit Provide A Great Highway Ride With Good Offroad Damping Capacity.

Position On Vehicle: Front
Amount Raised Or Lowered: 2-1/2 Inch Lift
Type: Coil Spring Spacer
Maximum Tire Size: 325/60
Minimum Wheel Diameter: 18
Wheel Backspacing (IN): 4.5
Wheel Offset (MM): -12.7
Estimated Install Time (Hours): 2

Features

  • Angled Coil Spacers Retain Proper Factory Coil Bow For Handling
  • Replacement Shocks Allow For Full Travel With Increased Damping
  • Extended Length Bump Stops Eliminate Coil Bind And Track Bar Interference
  • Limited Lifetime Warranty
Specifications of Fabtech Leveling Kit Suspension K3191M
Amount Raised Or Lowered  2-1/2 Inch Lift
Estimated Install Time (Hours)  2
Maximum Tire Size  325/60
Minimum Wheel Diameter  18
Position On Vehicle  Front
Series Stealth
Type  Coil Spring Spacer
Wheel Backspacing (IN)  4.5
Wheel Offset (MM)  -12.7

2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
2022 Ram 2500
