Edelbrock Supercharger Kit - 1562
Charger Type
Roots Style
Color
Black
Engine Compatibility
GMC LS Series 6.2L
Fuel Delivery Application
Multi-Port Injection
Material
Aluminum Valley Cover
Pulley Style
3-7/8 Inch Supercharger
Share this page

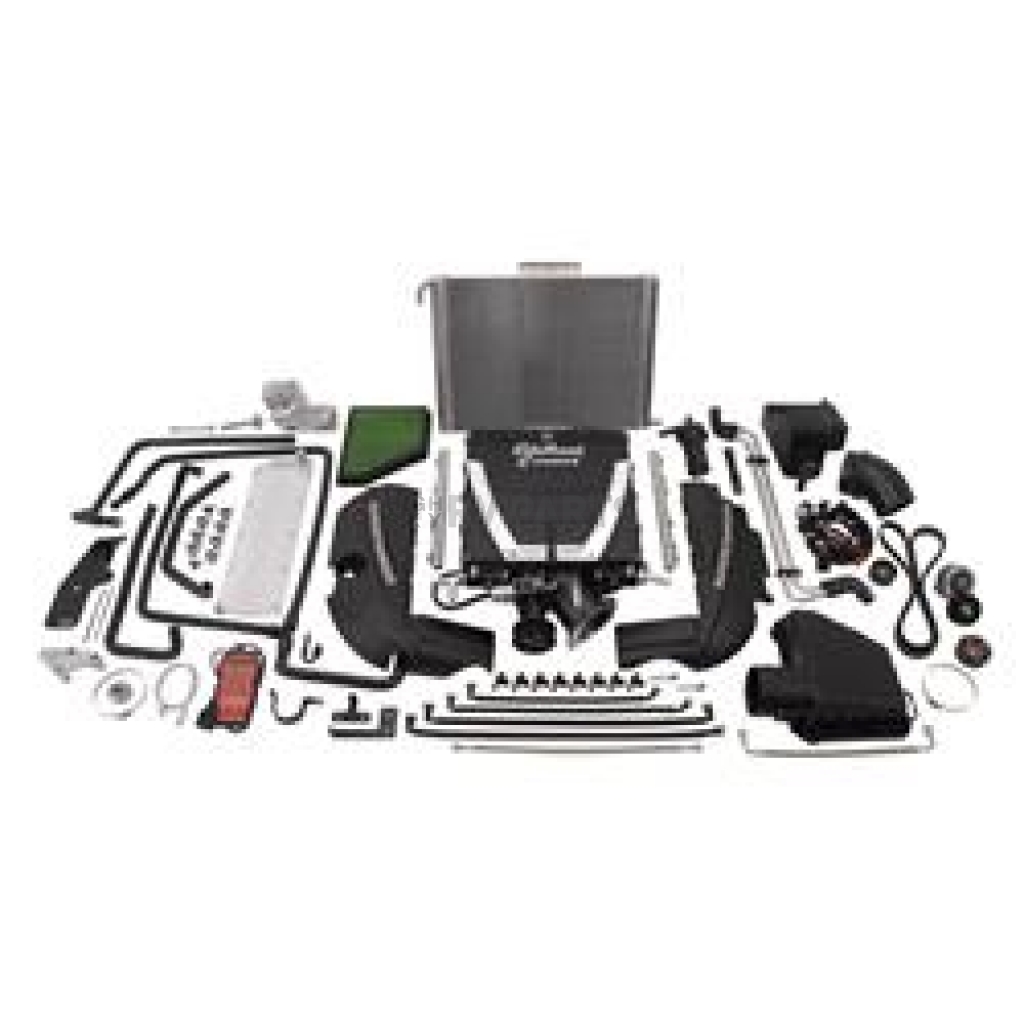

Edelbrock Supercharger Kit
Supercharger Kit; E-Force; GM 6.2L Engines; Low Profile Roots Style; Multi-Port Injection; With Supercharger Manifold/ Tensioner Brackets/ Idler Brackets/ Belt Tensioner/ Belts/ Supercharger Pulley/ Idler Pulley/ Intake Tube/ Air Filter/ Aluminum Valley Cover/ Handheld Calibration Module/ Electrical Harness
MPN: 1562
Edelbrock E-Force Supercharger systems deliver excellent horsepower and torque in a complete, street-legal kit that fits under the factory hood. The core of each system is the Eaton Gen VI 2300 TVS® Supercharger rotating assembly. Eaton's assembly features a four lobe design with 160 Degree of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The supercharger assembly has been integrated into the intake manifold for a seamless design with minimal components, eliminating the possibility of vacuum leaks between gasket surfaces. Edelbrock's inverted supercharger assembly is uniquely oriented, allowing for an incredible amount of intake runner length for maximizing low end torque. An integrated bypass valve helps eliminate parasitic loss under light throttle for improved mileage potential. E-Force superchargers feature the most unique and efficient inlet configuration on the market. This results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. Finally... the Edelbrock E-Force Supercharger system is not just a performance upgrade, it also has great looks! The supercharger assembly and matching aluminum coil covers (on applicable systems) are black powdered coated for durability with highlighted fins and Edelbrock logo for a unique appearance that will give any engine compartment a custom look.
Engine Compatibility: GMC LS Series 6.2L
Charger Type: Roots Style
Fuel Delivery Application: Multi-Port Injection
Pulley Style: 3-7/8 Inch Supercharger
Color: Black
Material: Aluminum Valley Cover
Features
- Everything Fits Right Out Of The Box, No Welding, Cutting Or Grinding
- Self Contained Oil System With 100,000 Mile Service Interval (No Drilling Or Plumbing Required)
- High Flow Mass Air Flow Sensor (MAFS) On Some Applications
- Integrated Bypass Valve For Little To No Decrease In Fuel Economy
- Individual Runners For Each Cylinder Allow For Maximum Low End Torque And Instant Throttle Response
- Limited 3 Year Warranty
| Specifications of Edelbrock Supercharger Kit - 1562 | |
| Charger Type | Roots Style |
| Color | Black |
| Engine Compatibility | GMC LS Series 6.2L |
| Fuel Delivery Application | Multi-Port Injection |
| Material | Aluminum Valley Cover |
| Pulley Style | 3-7/8 Inch Supercharger |
2014 Chevrolet Camaro
2015 Chevrolet Camaro
2015 Chevrolet Camaro
1900-1900 Chevrolet LT1 Small Block 2013+
1900 Chevrolet LT1 Small Block 2013+
