Edelbrock Intake Manifold - 7141

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 7141
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $2,441.24
Price: $2,324.99
You Save: $116.25
Basic Operating RPM - High
6800
Basic Operating RPM - Low
1500
Color
Red And Gray
EGR
Non-EGR
Engine Compatibility
Chevy LS3-L92-L76 Series
Finish
Powder Coated
Fuel Delivery Type
Throttle Body Fuel Injected
Includes Fuel Rail
Yes
Material
Aluminum
Port Shape
Rectangular
Recommended Use
Racing
Share this page

Edelbrock Intake Manifold

Intake Manifold; Cross-Ram; For Use With GM LS3/ L92/ L76 Series Engines; EFI; Dual 90MM LS3 Throttle Body Flanges; Dual Plenum; 1500-6800 RPM Range; Red And Grey Powder Coated; Aluminum

MPN: 7141

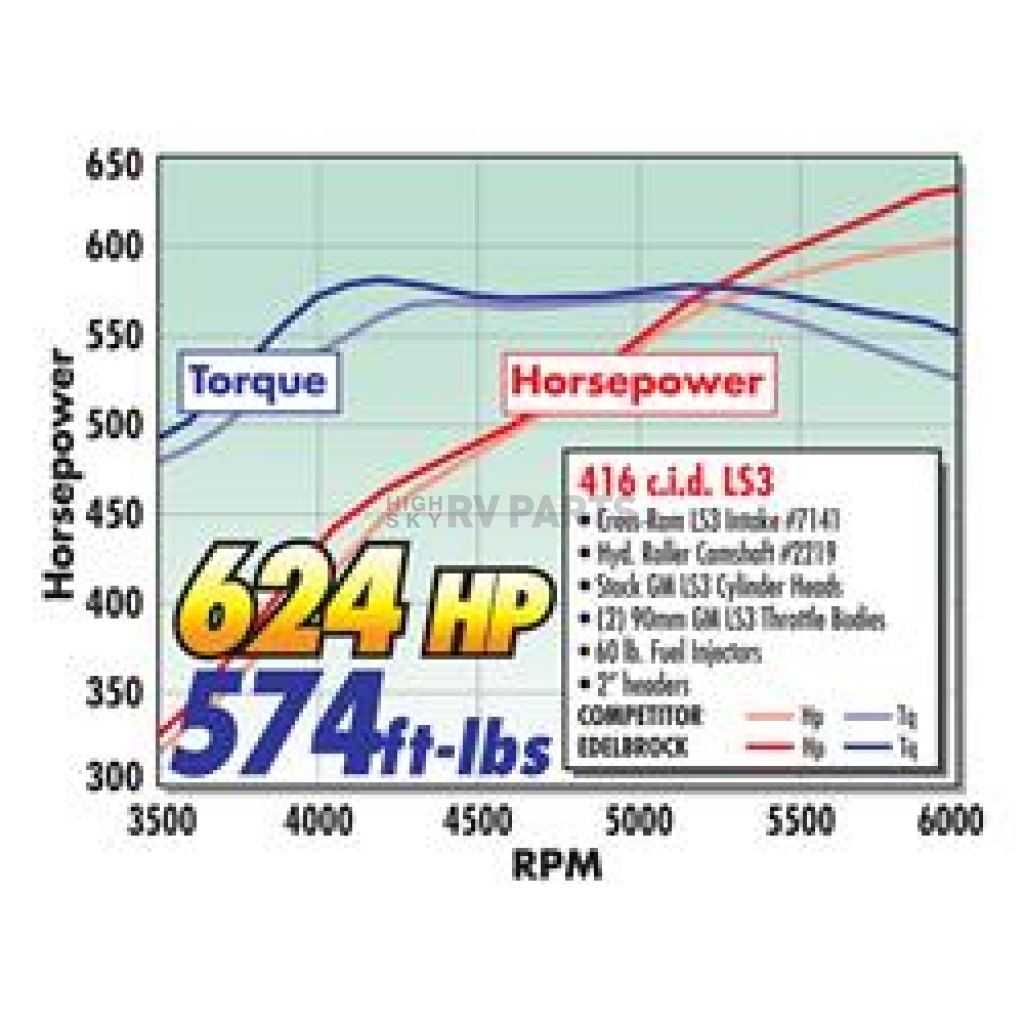

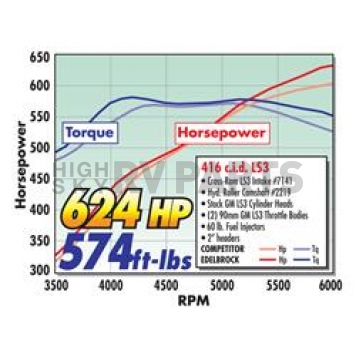

Designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance. The unique dual-plenum design features 13 Inch long runners with flanges that will accept two, 90 Millimeter GM LS3 throttle bodies. The unique cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 Horsepower and 28 Foot Pounds of Torque over a popular aftermarket manifold.
Engine Compatibility: Chevy LS3-L92-L76 Series
Recommended Use: Racing
Basic Operating RPM - Low: 1500
Basic Operating RPM - High: 6800
Type: Dual Plenum
Fuel Delivery Type: Throttle Body Fuel Injected
Port Shape: Rectangular
EGR: Non-EGR
Finish: Powder Coated
Color: Red And Gray
Material: Aluminum
Includes Fuel Rail: Yes

Features

  • Designed For Gen IV Engines
  • Combines Great Looks And Outstanding Performance
  • Unique Dual-Plenum Design Features 13 Inch Long Runners With Flanges That Will Accept Two, 90 Millimeter GM LS3 Throttle Bodies
  • Unique Cross-Ram Dual-Plenum Design Is Ideal For Twin Turbo Applications
  • Dyno Tested
  • Limited 1 Year Warranty
Specifications of Edelbrock Intake Manifold - 7141
Basic Operating RPM - High 6800
Basic Operating RPM - Low 1500
Color Red And Gray
EGR Non-EGR
Engine Compatibility Chevy LS3-L92-L76 Series
Finish Powder Coated
Fuel Delivery Type Throttle Body Fuel Injected
Includes Fuel Rail Yes
Material Aluminum
Port Shape Rectangular
Recommended Use Racing
Type Dual Plenum

1900 Chevrolet LS Small Block Gen 3 1997-2007

1900 Chevrolet LS Small Block Gen 4 2005+
