Edelbrock Intake Manifold - 28002

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 28002
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 02
Retail: $1,202.24
Price: $1,144.99
You Save: $57.25
Basic Operating RPM - High
8500
Basic Operating RPM - Low
3500
Carburetor Count
4-Barrel
Color
Silver
Cylinder Block Design
Tall
Deck Height
10.2 Inch
EGR
Non-EGR
Engine Compatibility
Chevy Big Block V8 396-502 Cubic Inch
Finish
Natural
Flange Type
Spread Bore
Fuel Delivery Type
Carbureted
Share this page

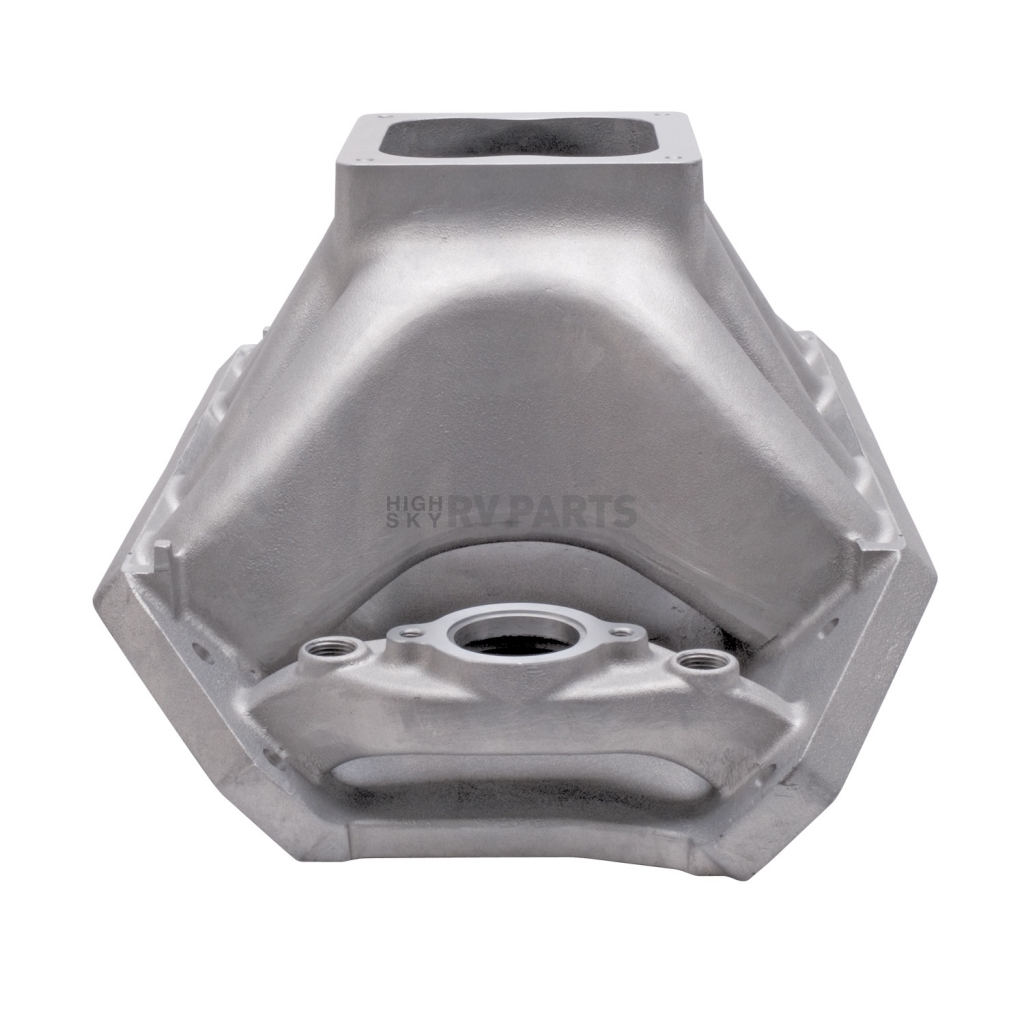

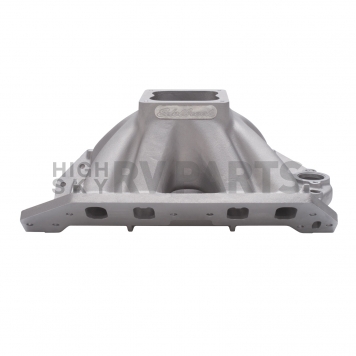

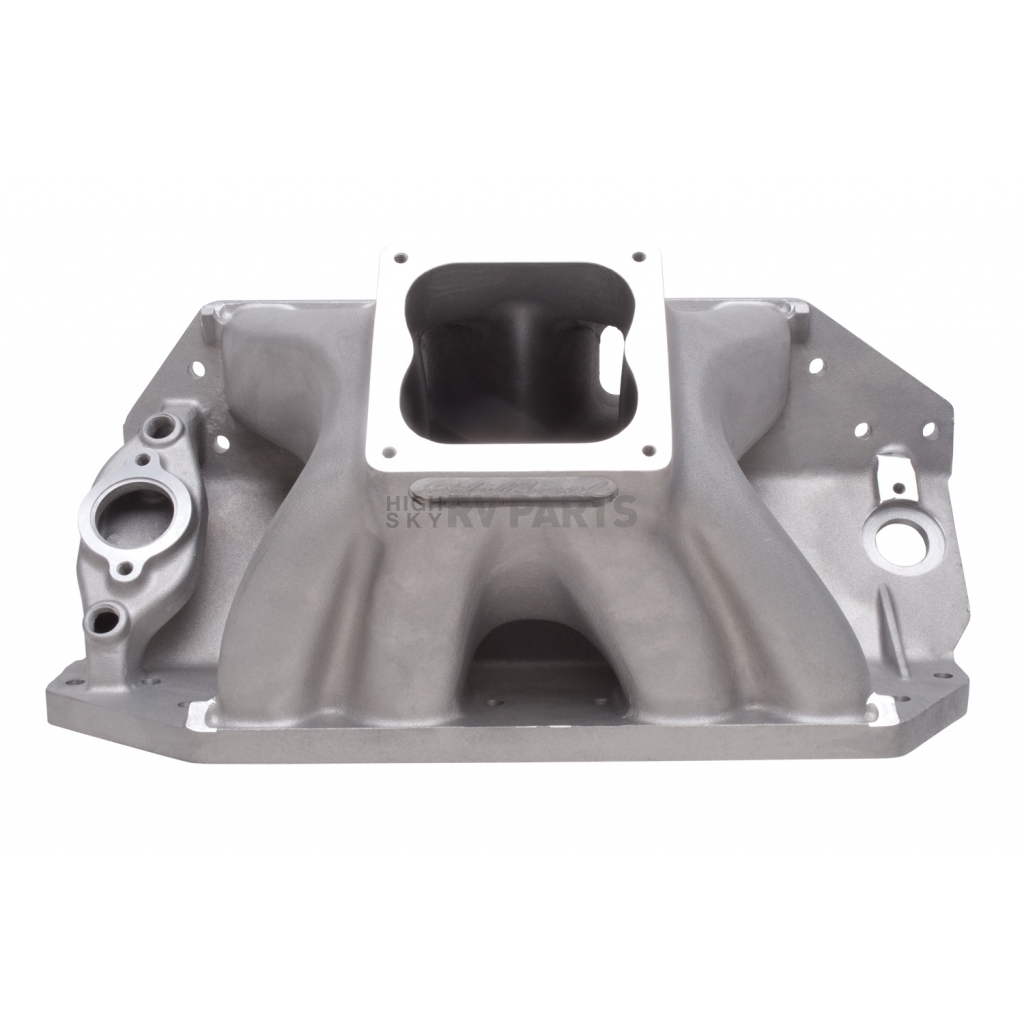

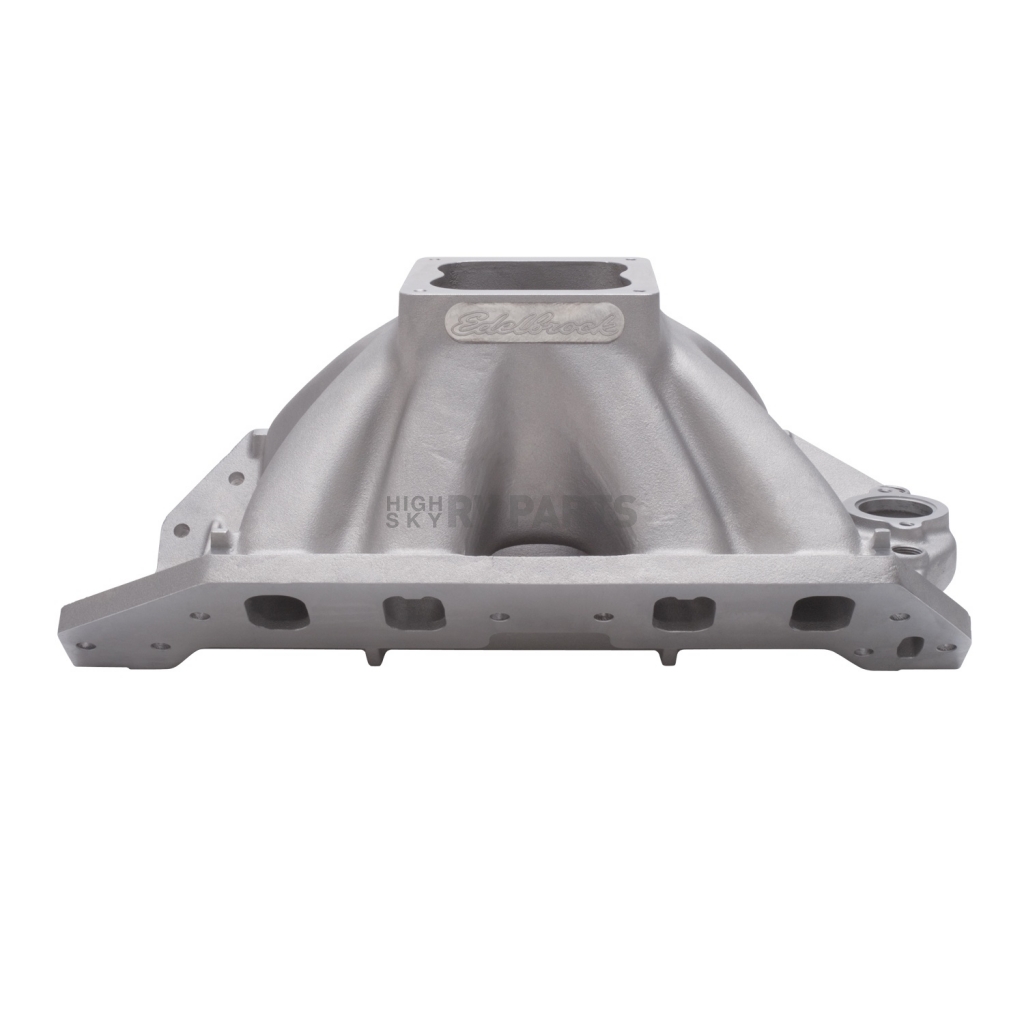

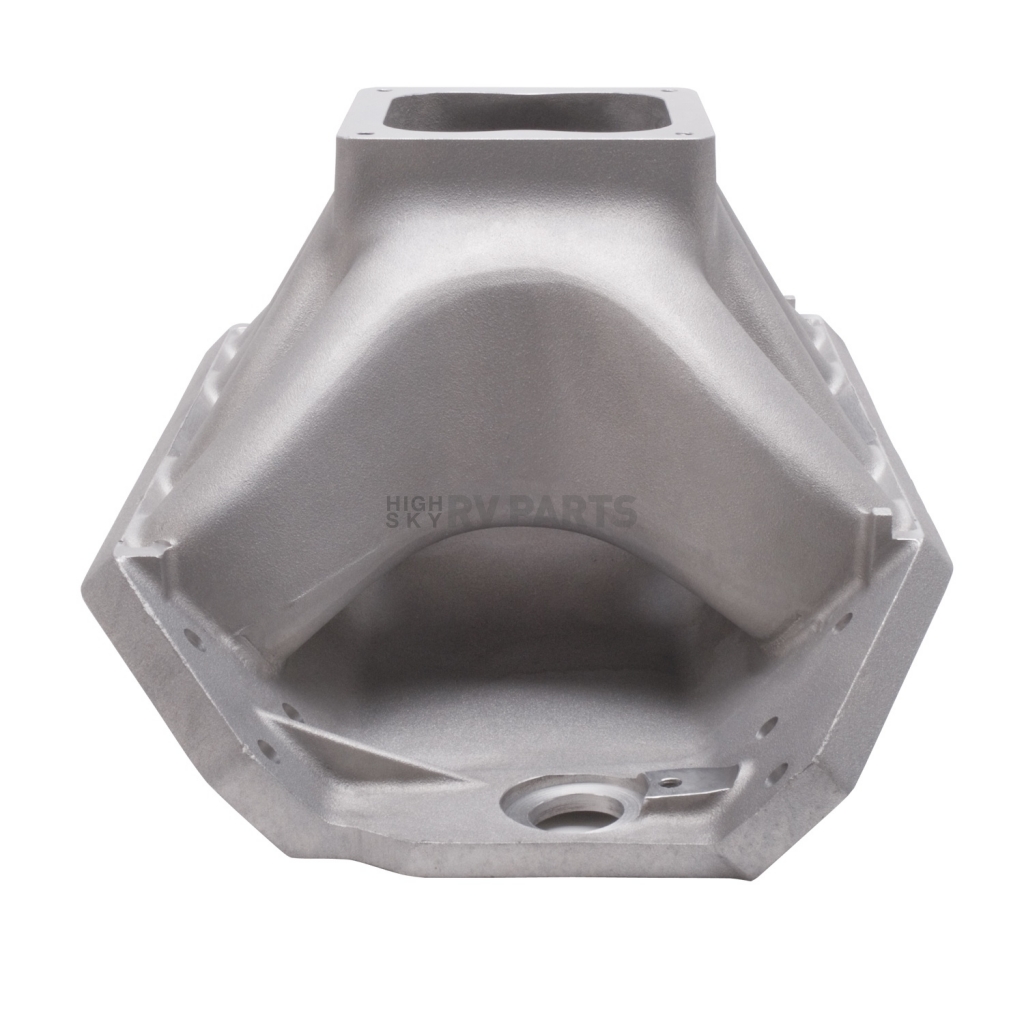

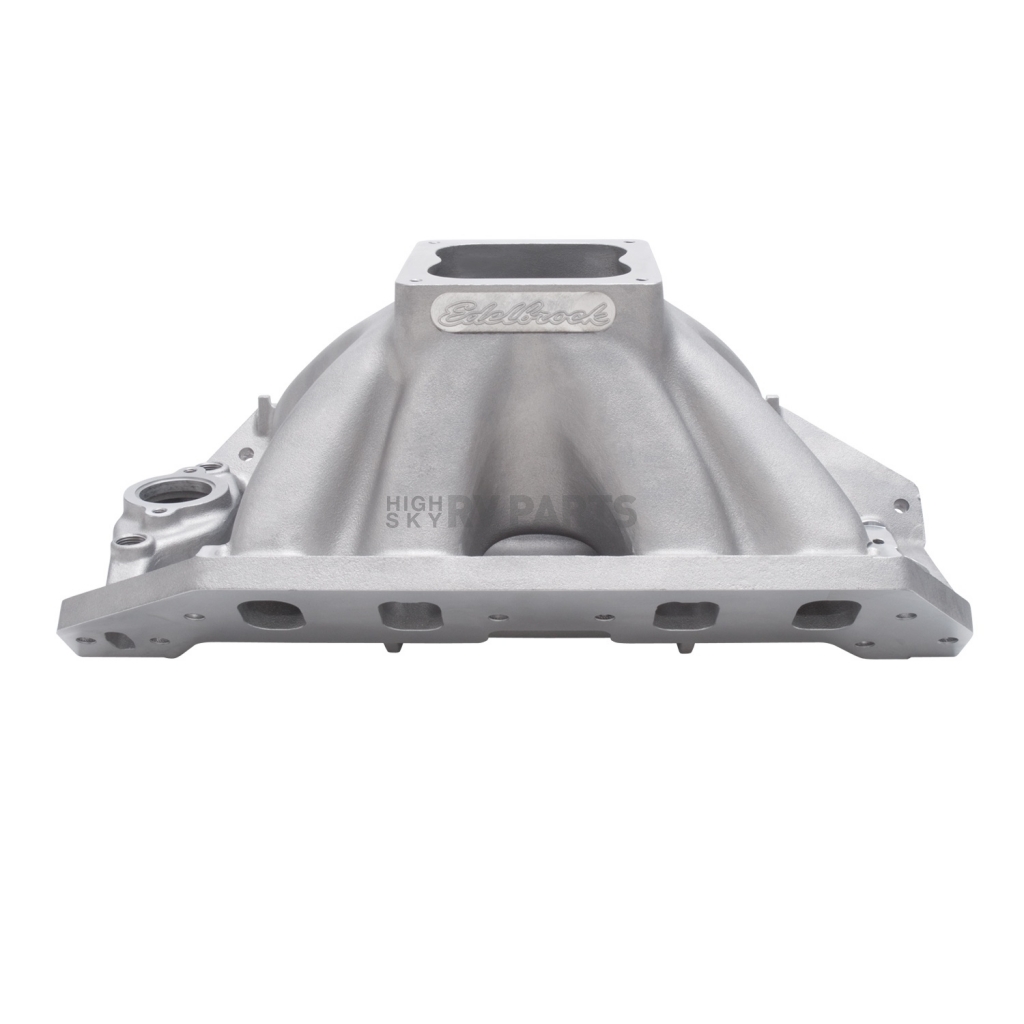

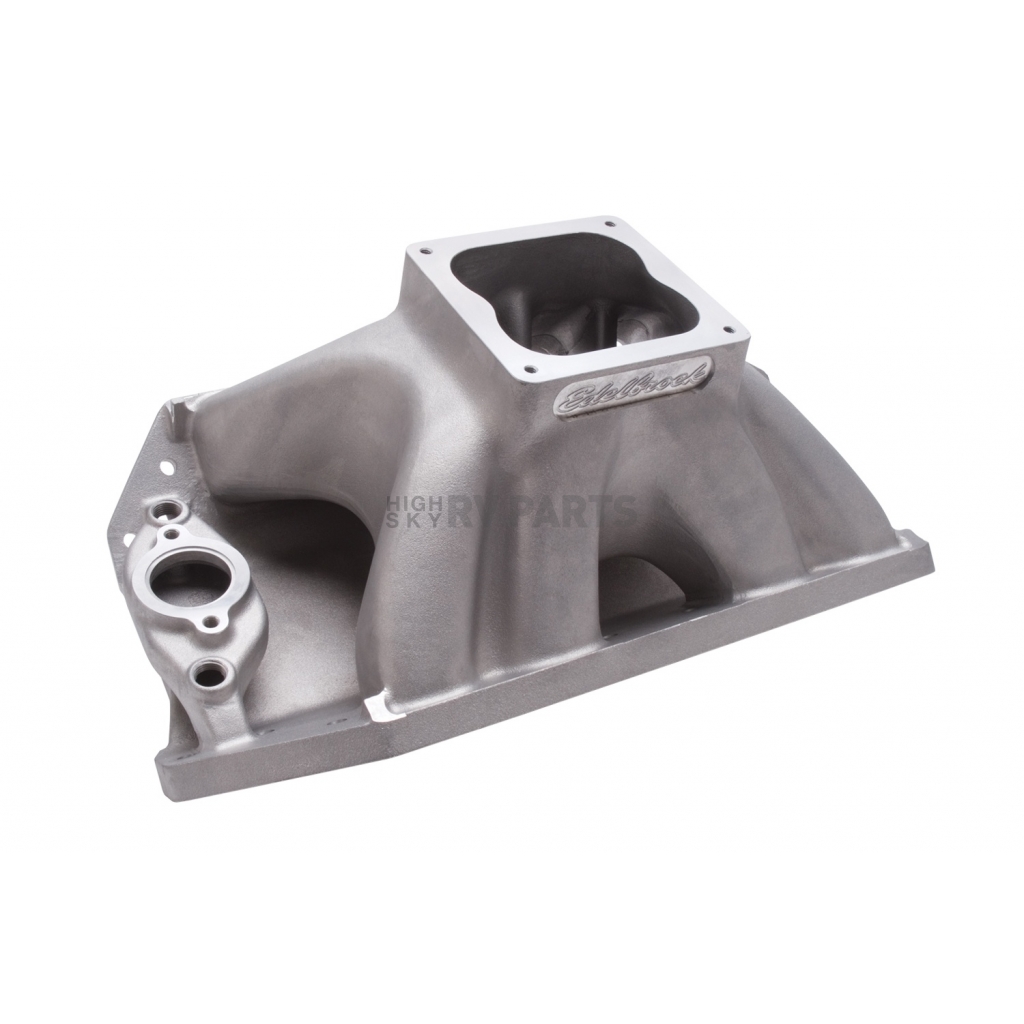

Edelbrock Intake Manifold

Intake Manifold; Big Victor 2; 3500-8500 RPM Range; Single-Plane; 4-Barrel Carburetor; Aluminum; Natural

MPN: 28002

Single plane, high rise intakes designed for maximum race winning power at higher engine speeds. Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. Victor manifolds are available for single or multiple carburetor Set-Up's
Engine Compatibility: Chevy Big Block V8 396-502 Cubic Inch
Recommended Use: Racing
Basic Operating RPM - Low: 3500
Basic Operating RPM - High: 8500
Carburetor Count: 4-Barrel
Type: Single Plane
Fuel Delivery Type: Carbureted
Flange Type: Spread Bore
Cylinder Block Design: Tall
Deck Height: 10.2 Inch
Port Shape: Oval
EGR: Non-EGR
Finish: Natural
Color: Silver
Material: Aluminum
Includes Fuel Rail: No

Features

  • Designed For Large Cubic Inch Or High RPM Drag Racing Big Blocks With Spread Port Cylinder Heads
  • The Runners Have A Minimum Corner Radius Of 0.500 Inch, From The Plenum To The Exit, Allowing The Oval Port Shape To Be Used
  • The Plenum Is Longer (Front To Back) For Better Top End Horsepower While Maintaining Consistency And Throttle Response Off The Stop
  • 5 Percent Taper In Runner Cross-Sectional Area
  • Limited 90 Day Warranty
Specifications of Edelbrock Intake Manifold - 28002
Basic Operating RPM - High 8500
Basic Operating RPM - Low 3500
Carburetor Count 4-Barrel
Color Silver
Cylinder Block Design Tall
Deck Height 10.2 Inch
EGR Non-EGR
Engine Compatibility Chevy Big Block V8 396-502 Cubic Inch
Finish Natural
Flange Type Spread Bore
Fuel Delivery Type Carbureted
Includes Fuel Rail No
Material Aluminum
Port Shape Oval
Recommended Use Racing
Type Single Plane

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
