Edelbrock Fuel Pump Electric - 1792
Estimated Install Time (Hours)
1
Free Flow Rate
160 Gallon Per Hour
Fuel Type
Gasoline
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
1/2 Inch NPT
Maximum Pressure (PSI)
12 Pounds Per Square Inch
Mounting Style
In-Line
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
1/2 Inch NPT
Share this page

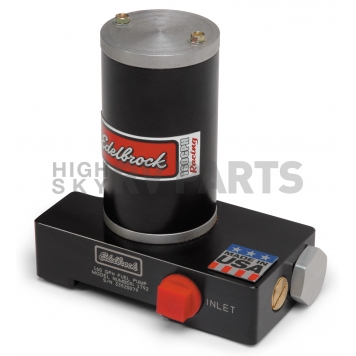

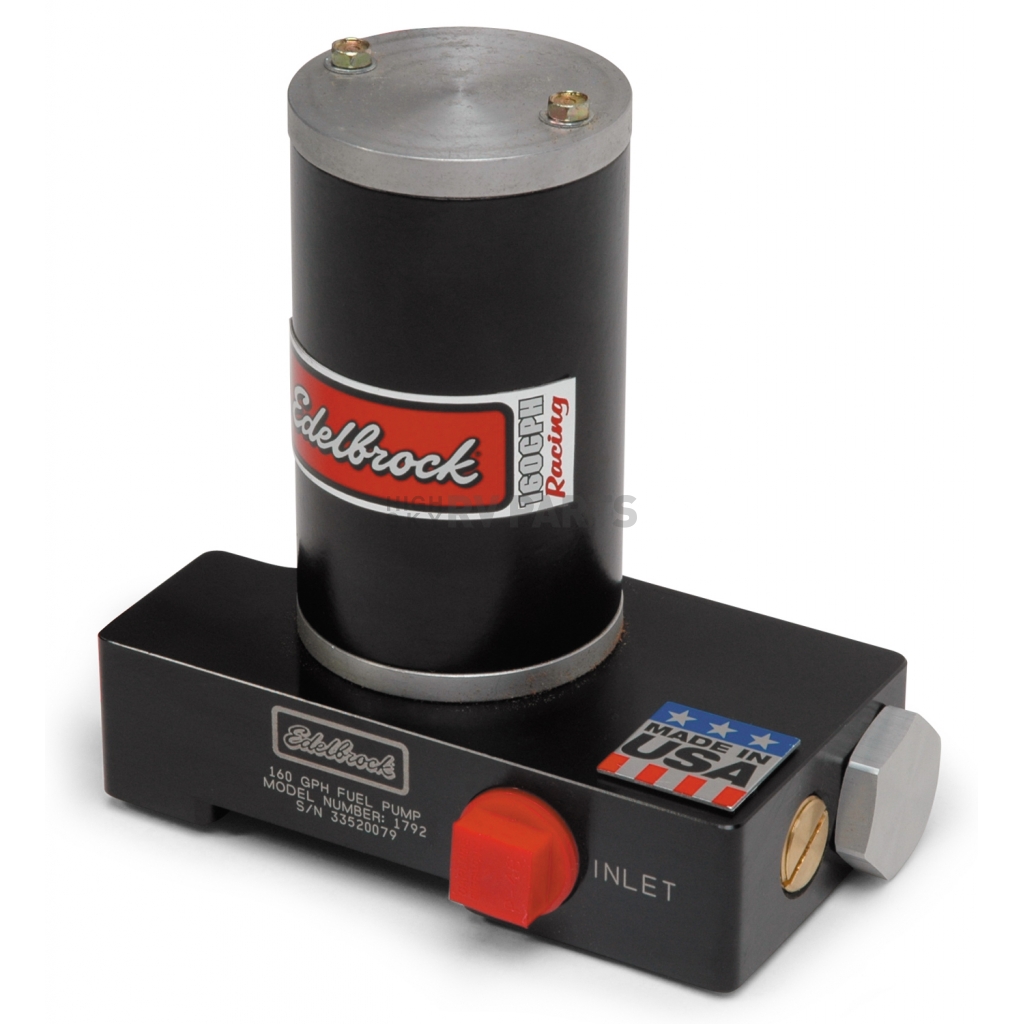

Edelbrock Fuel Pump Electric
Fuel Pump Electric; Quiet-Flo; 160 GPH; 12 PSI Max Pressure; Without Regulator; 1/2 Inch NPT Inlet/Outlet; 12 Volts; Black; Must Be Used With Fuel Pressure Regulator
MPN: 1792

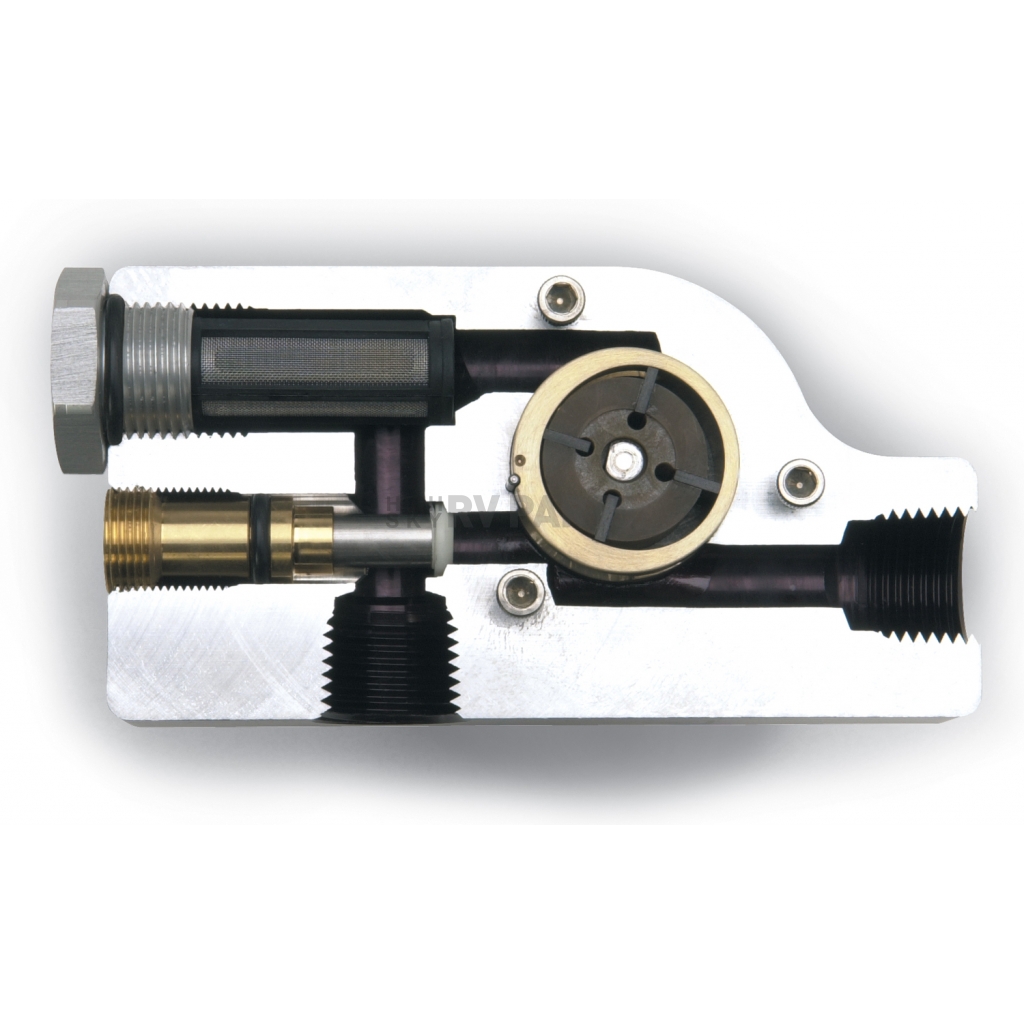

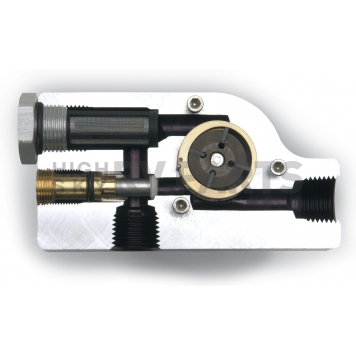

Manufactured by Essex industries, one of the most renowned fuel system manufacturers, these State-Of-The-Art electric fuel pumps offer maximum performance in a compact package. With anodized aluminum housings and high quality internals, they are both strong and durable. Each pump is factory tested and includes mounting brackets. The carbon fiber vanes and composite rotors give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 Decibel quieter than competitors pumps at the same pressure, with a replaceable screen type inlet filter and the free flow rate of 120 Gallon Per Hour is sufficient to supply 600 Horsepower. This pump is factory preset to 12 PSI and requires an external regulator
Mounting Style: In-Line
Fuel Type: Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 160 Gallon Per Hour
Maximum Pressure (PSI): 12 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 1/2 Inch NPT
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 1/2 Inch NPT
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 1
Features
- Anodized Aluminum Housings And High Quality Internals
- Includes Mounting Brackets
- Limited 5 Year Warranty
| Specifications of Edelbrock Fuel Pump Electric - 1792 | |
| Estimated Install Time (Hours) | 1 |
| Free Flow Rate | 160 Gallon Per Hour |
| Fuel Type | Gasoline |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 1/2 Inch NPT |
| Maximum Pressure (PSI) | 12 Pounds Per Square Inch |
| Mounting Style | In-Line |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 1/2 Inch NPT |
| Voltage Rating | 12 Volt |
| With Mounting Hanger | Yes |
| With Sending Unit | No |
