Edelbrock Fuel Pressure Regulator - 174132

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 174132
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $208.94
Price: $198.99
You Save: $9.95
Color
Blue
Finish
Anodized
Fuel Type
Gasoline/ Methanol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Single
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Share this page

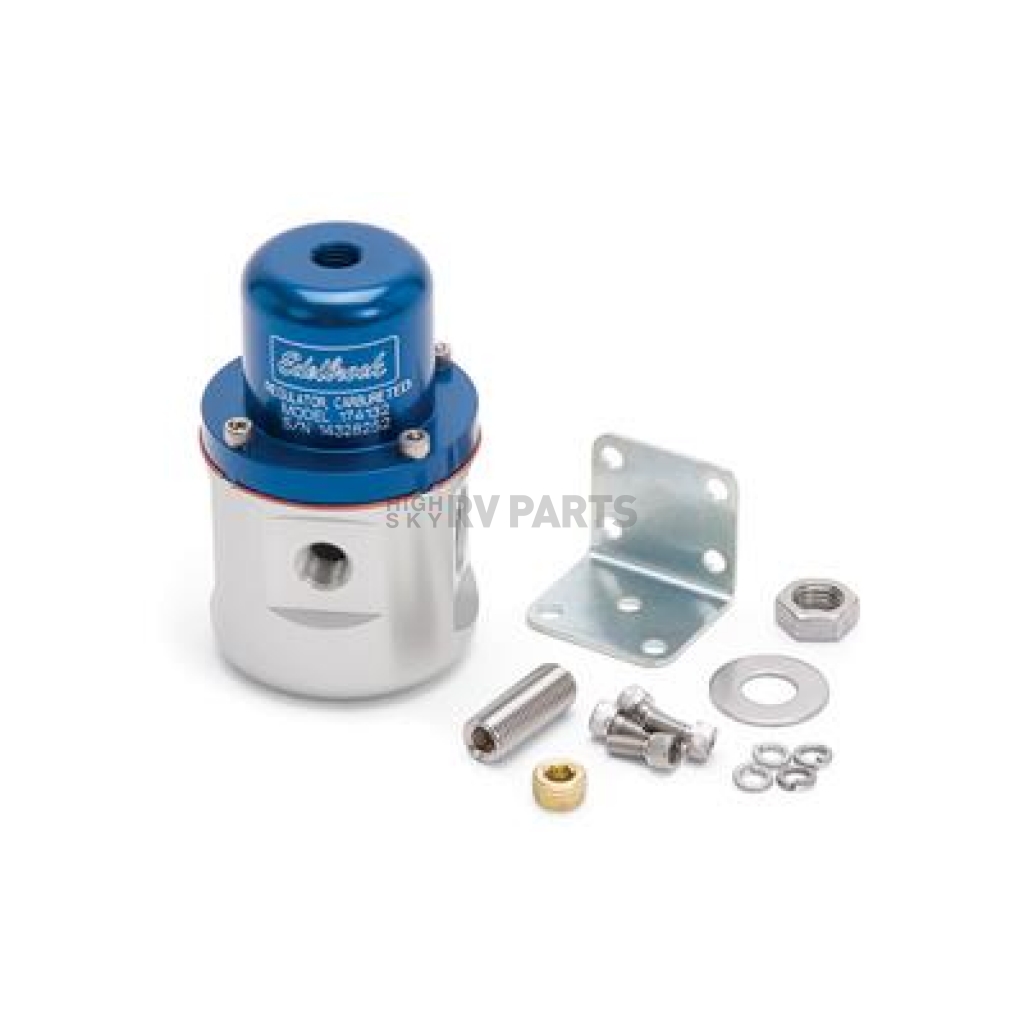

Edelbrock Fuel Pressure Regulator

Fuel Pressure Regulator; 5-10 PSI; 3/8 Inch NPT Inlet/ Outlet/ Return; Gasoline/ Methanol; Blue; Aluminum; Without Boost Reference Port; With 1/8 Inch NPT Gauge Port

MPN: 174132

These fuel pressure regulators are machined from aircraft quality aluminum for those who demand the best. They have fluorosilicone diaphragm material for extended life and high temperature protection. Select regulators available with 1/8 Inch NPT gauge port and a boost reference fitting for blow through or pressurized carb applications (even beyond 30 PSI of boost). Pressure regulation slope is 0.75 PSI Per Gallons of flow rate change. Will hold fuel system pressure for at least 20 Minutes after pump shutdown. They are compatible with all grades of gasoline or methanol. Developed for optimum compatibility with Edelbrock Quiet-Flo fuel pumps.
Fuel Type: Gasoline/ Methanol
Pressure Range (PSI): 5 To 10 Pounds Per Square Inch
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female Threads
Inlet Quantity: Single
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Single
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch NPT
Finish: Anodized
Color: Blue
Material: Aluminum

Features

  • Machined From Aircraft Quality Aluminum
  • Have Fluorosilicone Diaphragm Material For Extended Life And High Temperature Protection
  • Hold Fuel System Pressure For At Least 20 Minutes After Pump Shutdown
  • Compatible With All Grades Of Gasoline Or Methanol
  • Limited 1 Year Warranty
Specifications of Edelbrock Fuel Pressure Regulator - 174132
Color Blue
Finish Anodized
Fuel Type Gasoline/ Methanol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female Threads
Inlet Quantity Single
Inlet Size 3/8 Inch (-6 AN)
Material Aluminum
Outlet Attachment Female Threads
Outlet Quantity Single
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 5 To 10 Pounds Per Square Inch
Regulator Type Return
Return Port Size 3/8 Inch NPT
