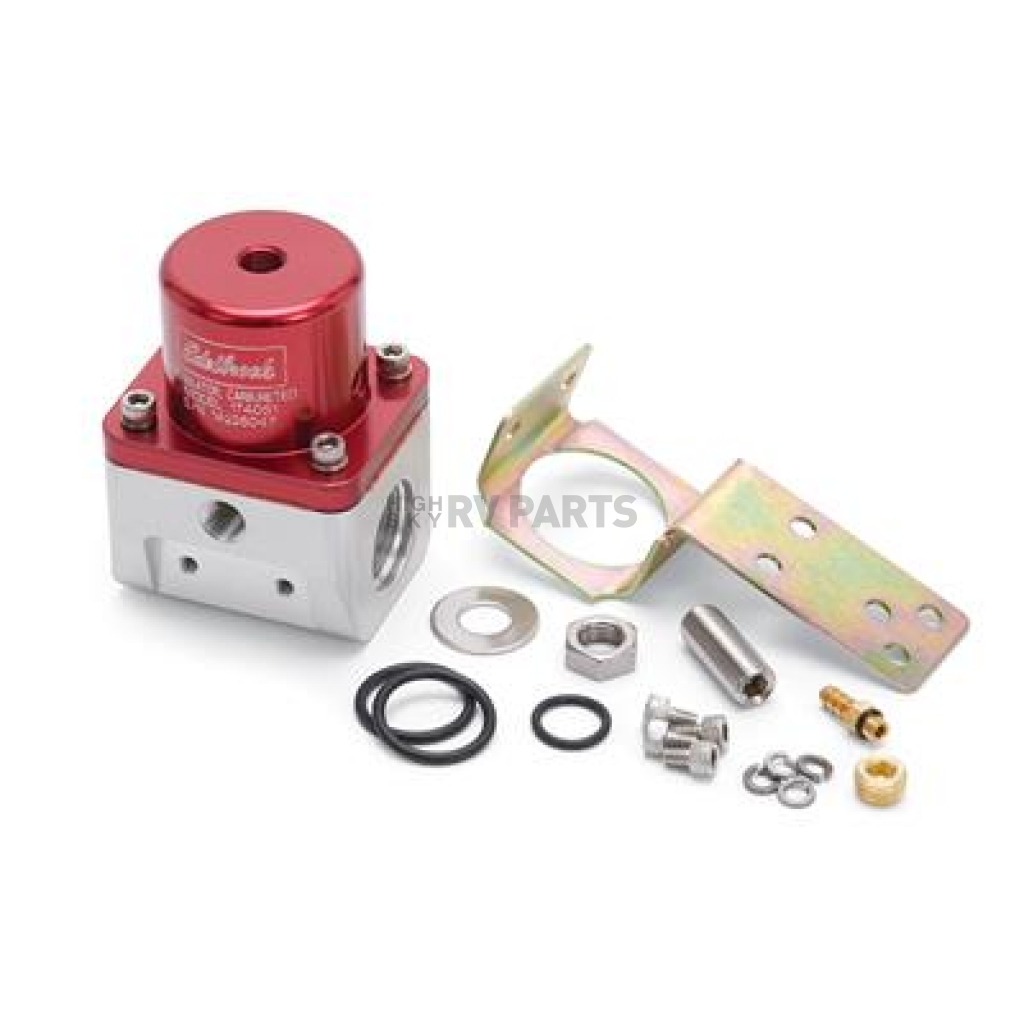

Edelbrock Fuel Pressure Regulator - 174051
Edelbrock Fuel Pressure Regulator
Fuel Pressure Regulator; 5-10 PSI; 10AN Inlet/ Outlet And 6AN Return; Gasoline/ Methanol; Red; Aluminum; With Boost Reference Port; With 1/8 Inch NPT Gauge Port
MPN: 174051
Features
- Machined From Aircraft Quality Aluminum
- Have Fluorosilicone Diaphragm Material For Extended Life And High Temperature Protection
- Hold Fuel System Pressure For At Least 20 Minutes After Pump Shutdown
- Compatible With All Grades Of Gasoline Or Methanol
- Limited 1 Year Warranty
Specifications of Edelbrock Fuel Pressure Regulator - 174051 | |
Color | Red |
Finish | Anodized |
Fuel Type | Gasoline/ Methanol |
Gauge Port | Yes |
Includes Fittings | Yes |
Includes Mounting Brackets | Yes |
Inlet Attachment | Female Threads |
Inlet Quantity | Single |
Inlet Size | 5/8 Inch (-10 AN) |
Material | Aluminum |
Outlet Attachment | Female Threads |
Outlet Quantity | Single |
Outlet Size | 5/8 Inch (-10 AN) |
Pressure Range (PSI) | 5 To 10 Pounds Per Square Inch |
Regulator Type | Return |
Return Port Size | 3/8 Inch (-6 AN) |
