Edelbrock Fuel Pressure Regulator - 174021

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 174021
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $283.49
Price: $269.99
You Save: $13.50
Color
Red
Finish
Anodized
Fuel Type
Gasoline/ Methanol
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Dual
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Share this page

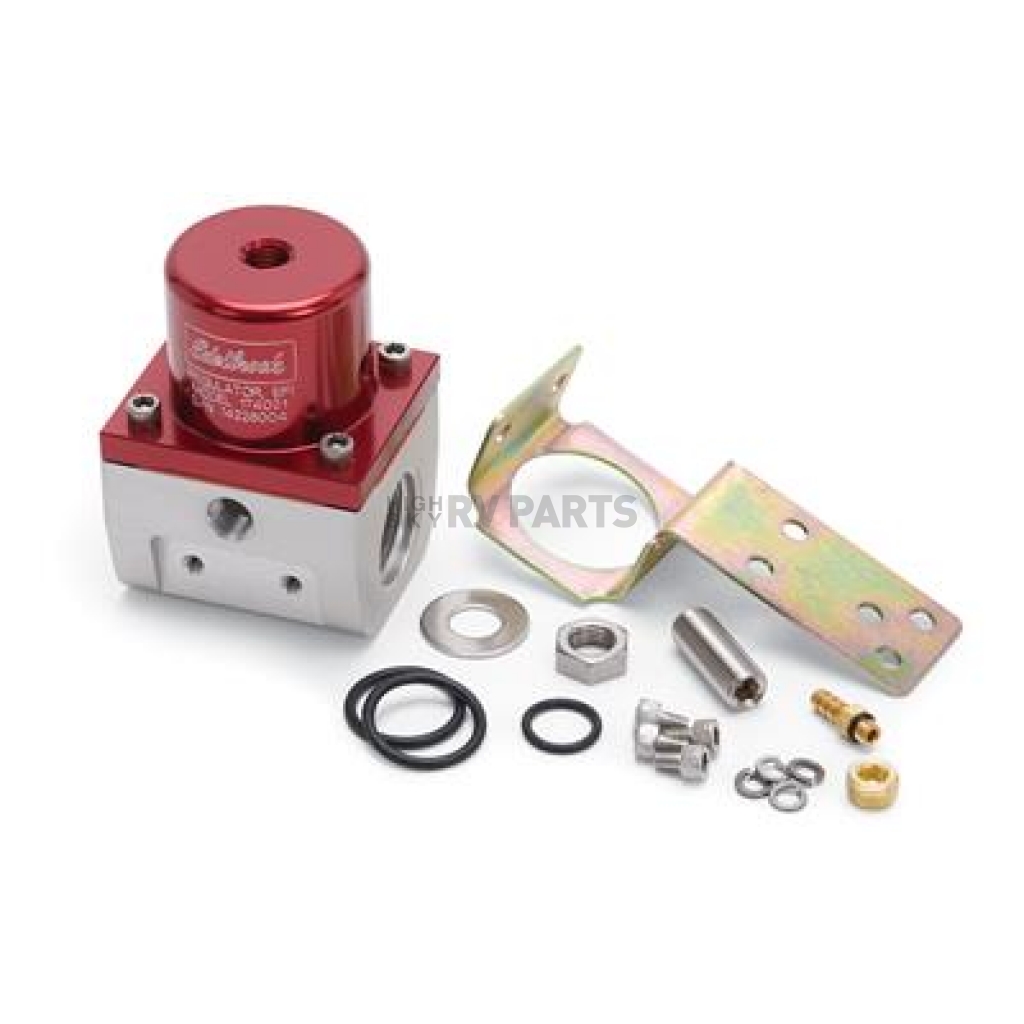

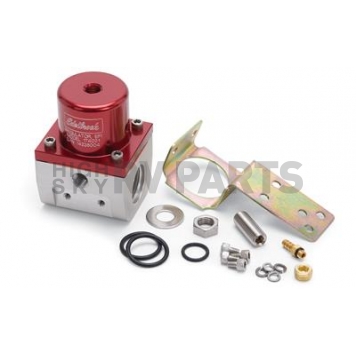

Edelbrock Fuel Pressure Regulator

Fuel Pressure Regulator; 35-90 PSI; 180 GPH; 10AN Inlet/ Outlet And 6AN Return; Gasoline/ Methanol; Red; Aluminum; With Boost Reference Port; With 1/8 Inch NPT Gauge Port

MPN: 174021

These fuel pressure regulators are machined from aircraft quality aluminum for those who demand the best. They have a diaphragm made of fluorosilicone for extended life and high temperature protection. These regulators will hold fuel system pressure for at least 20 Minutes after pump shutdown. They are compatible with all grades of gasoline/methanol. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
Fuel Type: Gasoline/ Methanol
Pressure Range (PSI): 35 To 90 Pounds Per Square Inch
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female Threads
Inlet Quantity: Dual
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Single
Outlet Size: 3/8 Inch (-6 AN)
Shape: Square
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch (-6 AN)
Finish: Anodized
Color: Red
Material: Aluminum

Features

  • Machined From Aircraft Quality Aluminum
  • Diaphragm Made Of Fluorosilicone For Extended Life And High Temperature Protection
  • Holds Fuel System Pressure For At Least 20 Minutes After Pump Shutdown
  • Compatible With All Grades Of Gasoline/Methanol
  • Features A Vacuum/Boost Compensating Port For A Supercharger, Turbo Or Intake Manifold Vacuum Connection
  • Limited 1 Year Warranty
Specifications of Edelbrock Fuel Pressure Regulator - 174021
Color Red
Finish Anodized
Fuel Type Gasoline/ Methanol
Gauge Port Yes
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female Threads
Inlet Quantity Dual
Inlet Size 5/8 Inch (-10 AN)
Material Aluminum
Outlet Attachment Female Threads
Outlet Quantity Single
Outlet Size 3/8 Inch (-6 AN)
Pressure Range (PSI) 35 To 90 Pounds Per Square Inch
Regulator Type Return
Return Port Size 3/8 Inch (-6 AN)
Shape Square
