Edelbrock Cylinder Head 79949

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 79949
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $2,232.29
Price: $2,125.99
You Save: $106.30
CNC-Machined
Yes
Combustion Chamber Volume (cc)
65 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy LS1/ LS2 Gen III/ IV Engine
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
76 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.57 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
Yes
Includes Valves
Yes
Share this page

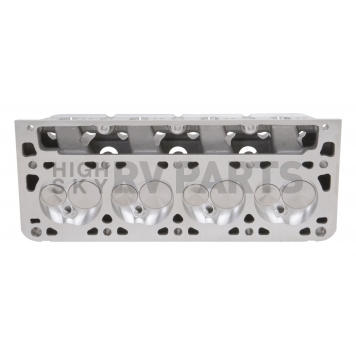

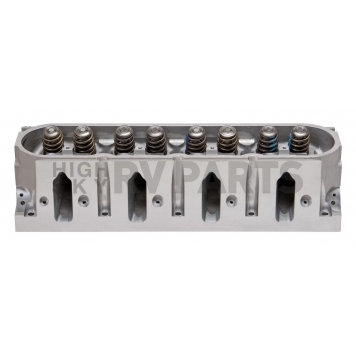

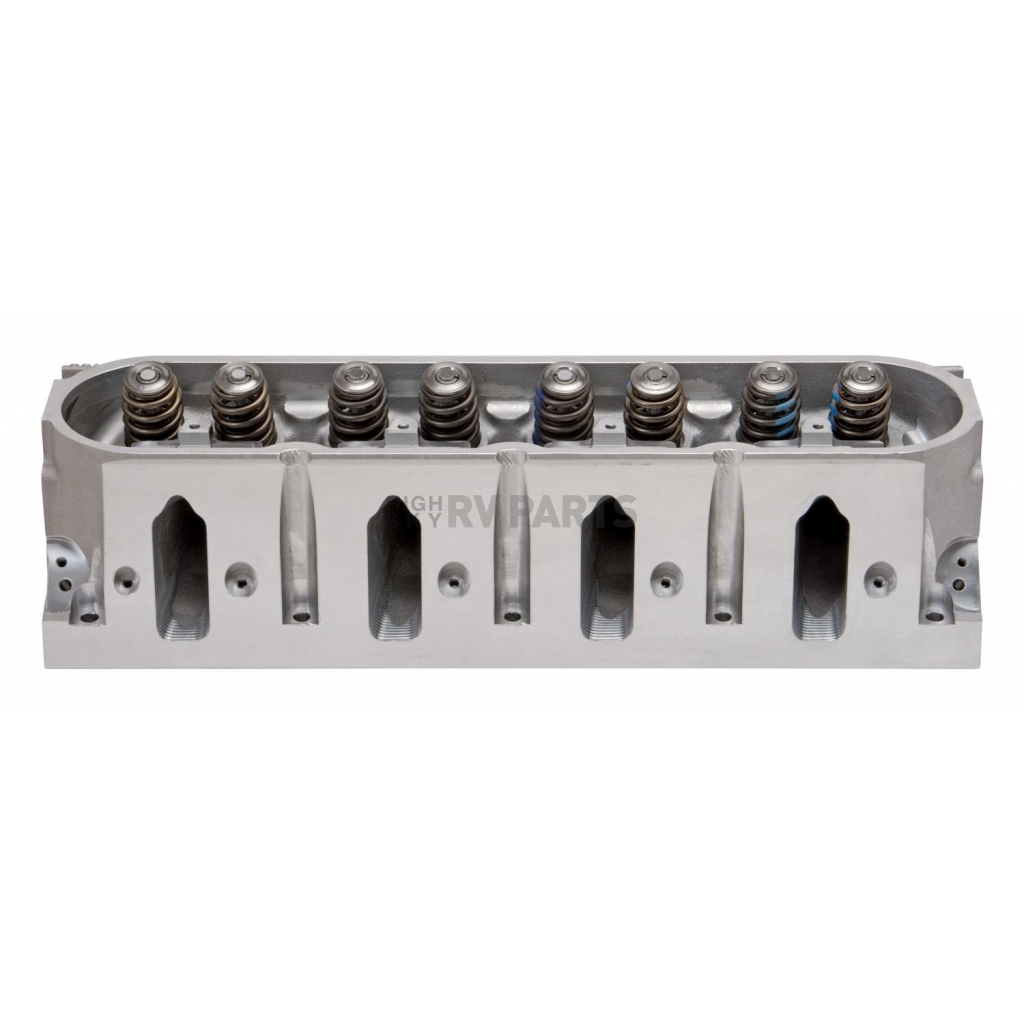

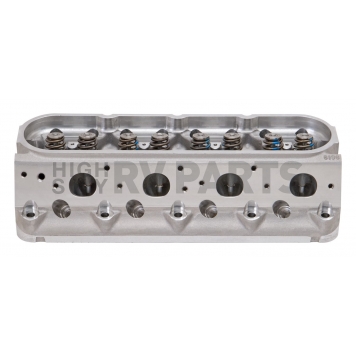

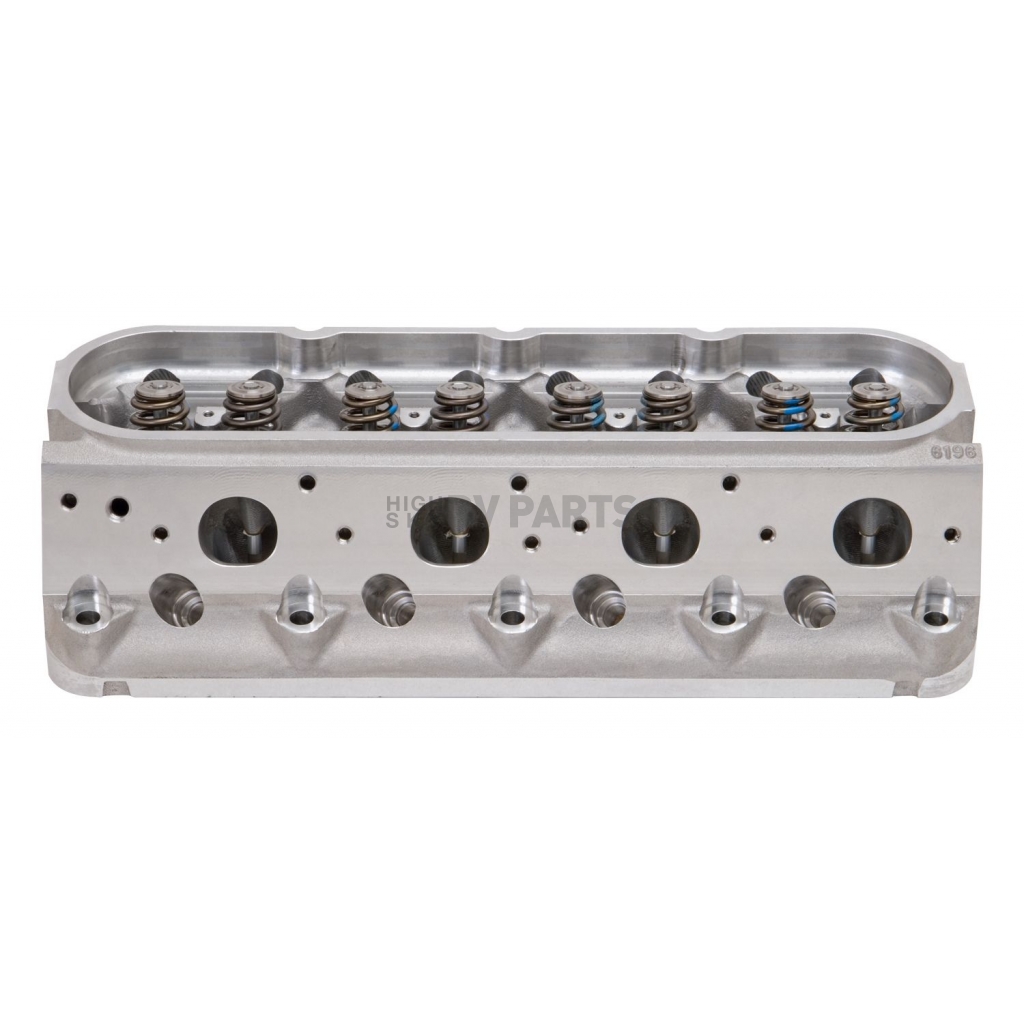

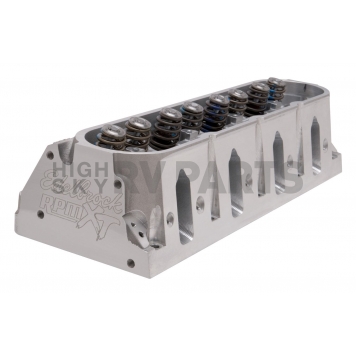

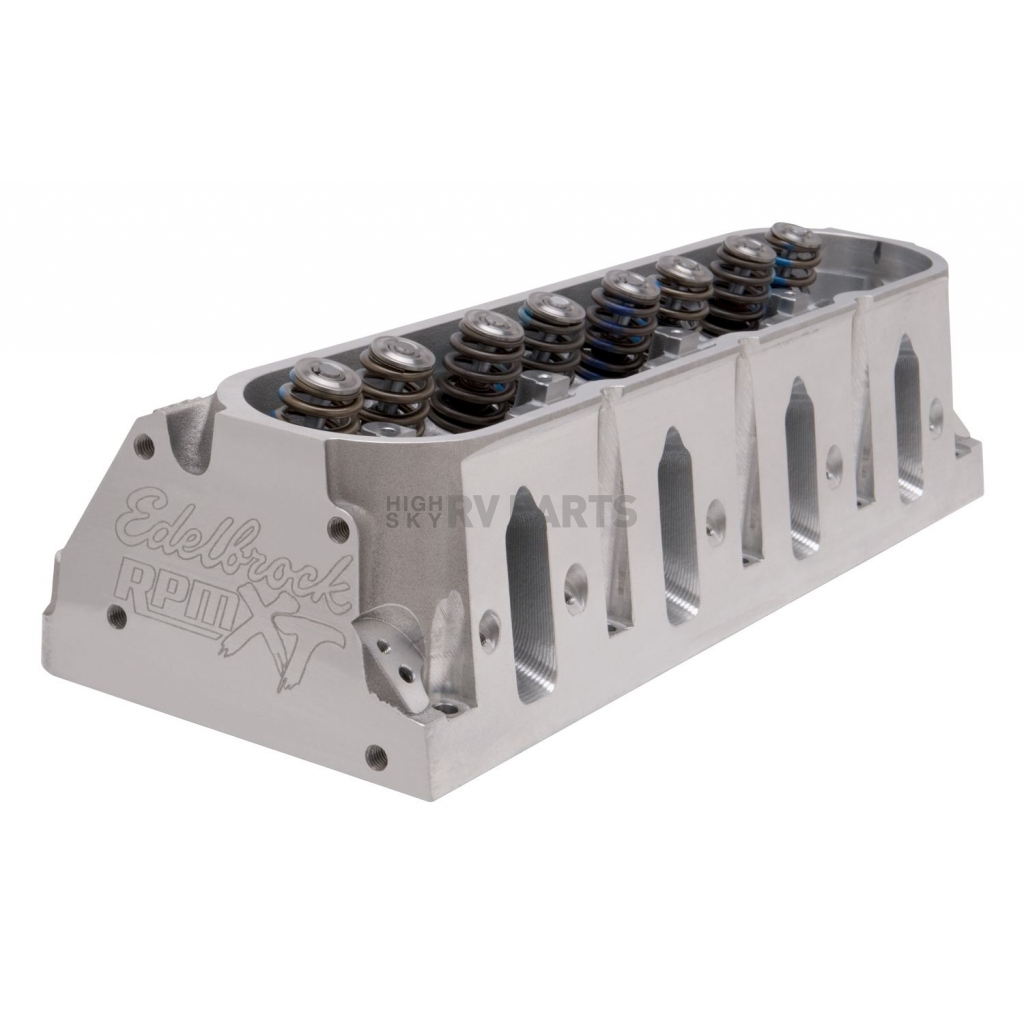

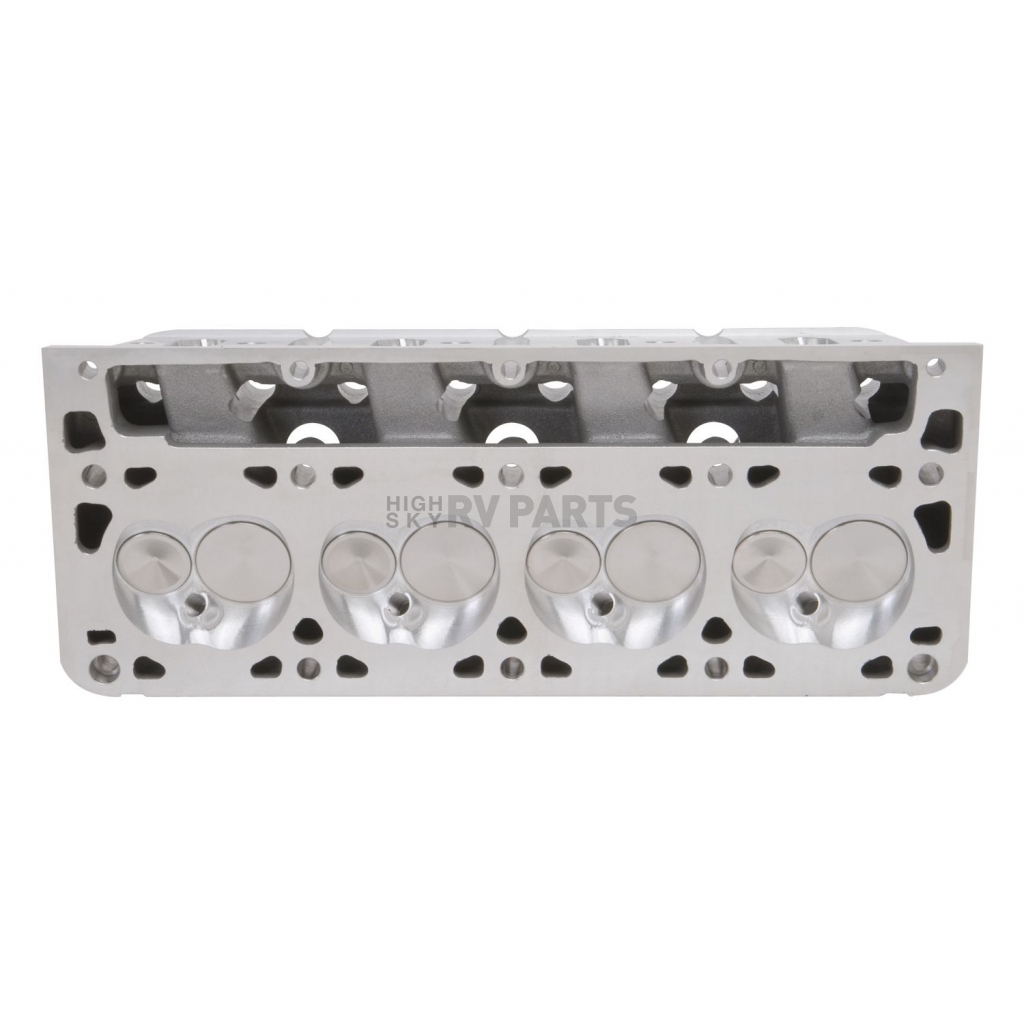

Edelbrock Cylinder Head

Cylinder Head; E-CNC Series; Assembled; Chevy LS1/LS2 Gen III/IV Engine; Aluminum; 215 CC Intake Port/ 76 CC Exhaust Port; 65 CC Chamber Volume; 2.02 Inch Intake Valve/ 1.57 Inch Exhaust Valve; 1.30 Inch Spring Diameter; Single; With Guides/ Seats

MPN: 79949

E-CNC 215 head is 50 State street legal. For the ultimate performance, E-CNC heads are fully CNC ported for added Horsepower and Torque over our standard Performer and Performer RPM models. They are ideal for high-performance street and entry-level race applications
Condition: New
Engine Compatibility: Chevy LS1/ LS2 Gen III/ IV Engine
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 65 Cubic Centimeter
Intake Runner Volume (CC): 215 Cubic Centimeter
Exhaust Runner Volume (CC): 76 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.02 Inch
Exhaust Valve Diameter (IN): 1.57 Inch
Includes Valves: Yes
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: No Rocker Arm Nut
Valve Lock Type: 7 Degree
Valve Stem Seal Type: Umbrella
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: Single
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: Yes
Includes Damper Spring: No

Features

  • Feature Fully CNC'd Intake Ports, Combustion Chambers And Exhaust Ports For Improved Air Flow
  • Dyno Tests Proved These Heads Are Capable Of 457 Horsepower And 438 Feet/Pounds Of Torque
  • High Quality Conical Beehive Springs Are Secured With Steel Retainers And Valve Locks For Performance Up To 0.6 Degree Valve Lift
  • Limited 1 Year Warranty
Specifications of Edelbrock Cylinder Head 79949
CNC-Machined Yes
Combustion Chamber Volume (cc) 65 Cubic Centimeter
Condition New
Engine Compatibility Chevy LS1/ LS2 Gen III/ IV Engine
Exhaust Port Location Standard
Exhaust Runner Volume (CC) 76 Cubic Centimeter
Exhaust Valve Diameter (IN) 1.57 Inch
Finish Satin
Includes Damper Spring No
Includes Guideplates Yes
Includes Valves Yes
Intake Port Location Standard
Intake Runner Volume (CC) 215 Cubic Centimeter
Intake Valve Diameter (IN) 2.02 Inch
Machined For O-Ring No
Material Aluminum
Number Of Springs Per Valve Single
Port Shape Rectangular
Rocker Arm Nut Thread Size No Rocker Arm Nut
Spark Plug Angle Straight
Steam Holes Drilled No
Style Assembled
Valve Guide Material Manganese Bronze
Valve Lock Type 7 Degree
Valve Seats Machined Yes
Valve Stem Seal Type Umbrella

2006 Cadillac CTS
2007 Cadillac CTS

1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro

1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette

1900 Chevrolet LS Small Block Gen 3 1997-2007

1900 Chevrolet LS Small Block Gen 4 2005+

2005 Chevrolet SSR
2006 Chevrolet SSR

2006 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer

1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird

2004 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO

2008 Saab 9-7x
2009 Saab 9-7x
