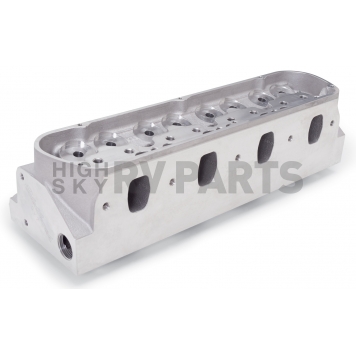

Edelbrock Cylinder Head 77319

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 77319
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by April 30
Retail: $1,822.79
Price: $1,735.99
You Save: $86.80
CNC-Machined
Yes
Combustion Chamber Volume (cc)
24 Cubic Centimeter
Condition
New
Engine Compatibility
Ford Small Block V8 302-351 Cubic Inch
Exhaust Valve Diameter (IN)
1.64 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Includes Valves
No
Intake Valve Diameter (IN)
2.24 Inch
Share this page

Edelbrock Cylinder Head

Cylinder Head; Glidden Victor II; Bare; Unported; These Cylinder Heads Can Not Be Used Without Professional Head Preparation; For Use With Small Block Ford Engines; 11.3 Degree Valve Angle; 24CC Combustion Chamber; 1.34 Inch X 1.77 Inch Intake Port Entry; 1.66 Inch X 1.43 Inch Exhaust Port Exit; Use With 2.24 Inch Intake Valves And 1.64 Inch Exhaust Valves; 1.930 Inch Valve Spacing; Aluminum; Single; Valve Seats And Valve Guides Included But Not Installed

MPN: 77319

These unported versions of race winning Edelbrock Victor series CNC heads are designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock cylinder heads, Pro-Port units are also casted in the USA at the State-Of-The-Art Edelbrock foundry with extra thick walls to allow for custom CNC porting. In most cases, seats and manganese bronze valve guides are included
Condition: New
Engine Compatibility: Ford Small Block V8 302-351 Cubic Inch
Style: Bare
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 24 Cubic Centimeter
Intake Valve Diameter (IN): 2.24 Inch
Exhaust Valve Diameter (IN): 1.64 Inch
Includes Valves: No
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: No Springs
Includes Guideplates: No
Includes Damper Spring: No

Features

  • Edelbrock Victor Series CNC Heads Are Designed Specifically For The Professional Cylinder Head Porter And Engine Builder
  • Pro-Port Units Are Also Casted In The USA At The State-Of-The-Art Edelbrock Foundry With Extra Thick Walls To Allow For Custom CNC Porting
  • Limited 1 Year Warranty
Specifications of Edelbrock Cylinder Head 77319
CNC-Machined Yes
Combustion Chamber Volume (cc) 24 Cubic Centimeter
Condition New
Engine Compatibility Ford Small Block V8 302-351 Cubic Inch
Exhaust Valve Diameter (IN) 1.64 Inch
Finish Satin
Includes Damper Spring No
Includes Guideplates No
Includes Rocker Arm Studs No
Includes Valves No
Intake Valve Diameter (IN) 2.24 Inch
Material Aluminum
Number Of Springs Per Valve No Springs
Style Bare
Valve Guide Material Manganese Bronze
Valve Lock Type No Valve Lock
Valve Stem Seal Type No Valve Stem Seal

1900 Ford Small Block 221-351W

1900 Ford Small Block 347
