Edelbrock Cylinder Head 61729
CNC-Machined
Yes
Combustion Chamber Volume (cc)
58 Cubic Centimeter
Condition
New
Engine Compatibility
Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
62 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.6 Inch
Finish
Satin
Includes Guideplates
Yes
Includes Rocker Arm Studs
No
Includes Valves
Yes
Share this page

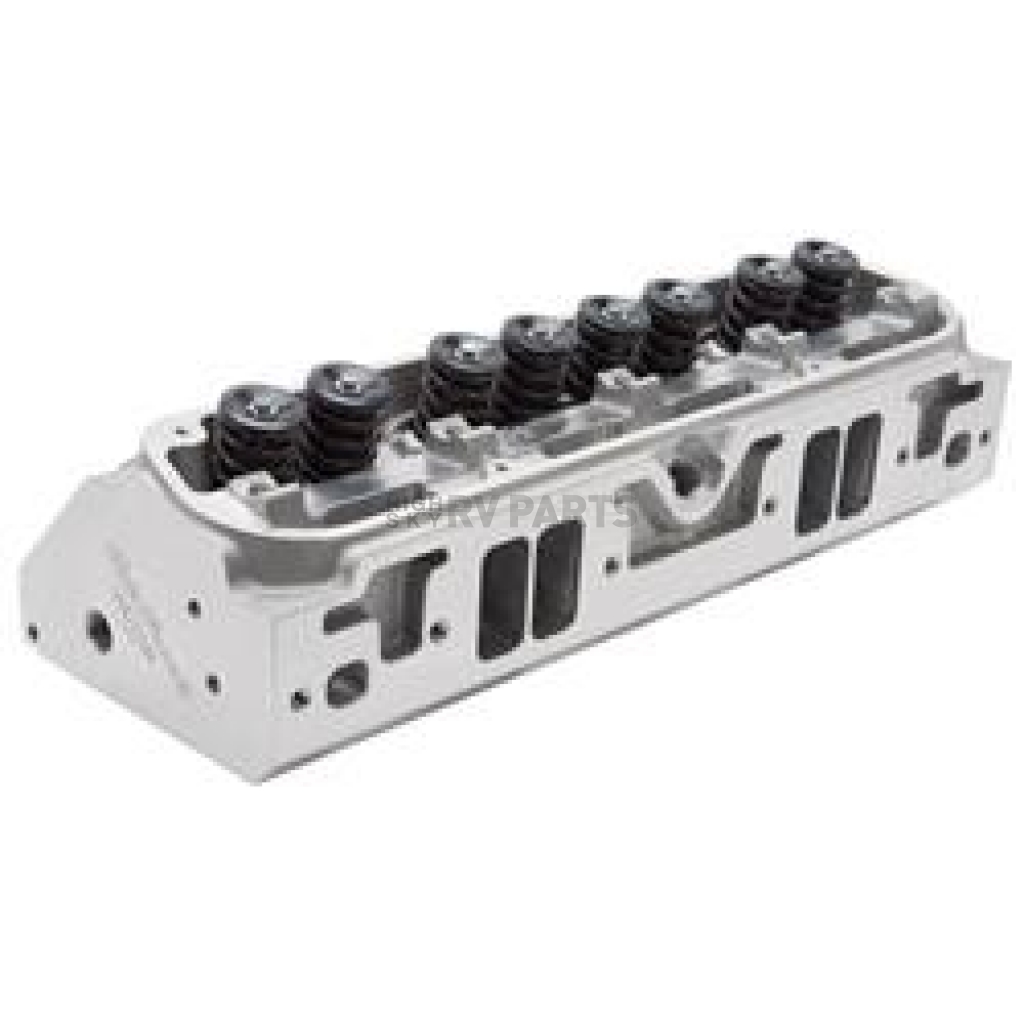

Edelbrock Cylinder Head
Cylinder Head; Victor; Assembled; Chrysler LA Small Block 5.2L-5.9L/318-360 Cubic Inch; Aluminum; 225 CC Intake Port/ 62 CC Exhaust Port; 58 CC Chamber Volume; 2.15 Inch Intake Valve/ 1.60 Inch Exhaust Valve; 1.55 Inch Spring Diameter; Single
MPN: 61729
These new Victor series cylinder heads are for use on C.I. Chrysler LA engines. They feature fully CNC ported 58 Cubic Centimeters combustion chambers and have an intake port volume of 225 Cubic Centimeters. these heads are an In-Line valve design incorporating a 16 Degrees valve angle (stock is 18 Degrees) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4 Inch and the flange has also been extended to accommodate a stock (race) intake manifold such as our super Victor. Finally, a 5.56 Inch Overall length valve (Plus 0.600 Inch from stock) and raised rocker cover permit larger port Cross-Sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro-Port raw. End-seal spacers are provided
Condition: New
Engine Compatibility: Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 58 Cubic Centimeter
Intake Runner Volume (CC): 225 Cubic Centimeter
Exhaust Runner Volume (CC): 62 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.15 Inch
Exhaust Valve Diameter (IN): 1.6 Inch
Includes Valves: Yes
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: No Rocker Arm Nut
Includes Rocker Arm Studs: No
Valve Guide Material: Manganese Bronze
Machined For O-Ring: No
Includes Guideplates: Yes
Features
- They Feature Fully CNC Ported 58 Cubic Centimeters Combustion Chambers And Have An Intake Port Volume Of 225 Cubic Centimeters
- They Also Feature The Chrysler W5 Bolt Pattern And Have Raised Exhaust Ports
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 61729 | |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 58 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 62 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.6 Inch |
| Finish | Satin |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | No |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 225 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.15 Inch |
| Machined For O-Ring | No |
| Material | Aluminum |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | No Rocker Arm Nut |
| Spark Plug Angle | Straight |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
1900 Chrysler 273-360 LA
