Edelbrock Cylinder Head 61569
CNC-Machined
No
Combustion Chamber Volume (cc)
87 Cubic Centimeter
Condition
New
Engine Compatibility
Pontiac V8 6.4L-7.5L 389-455 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
145 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.66 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Share this page

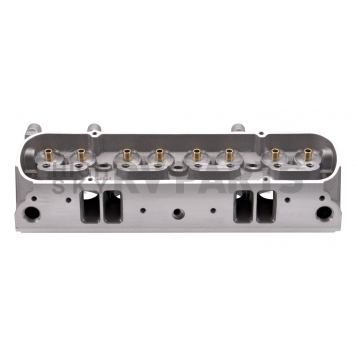

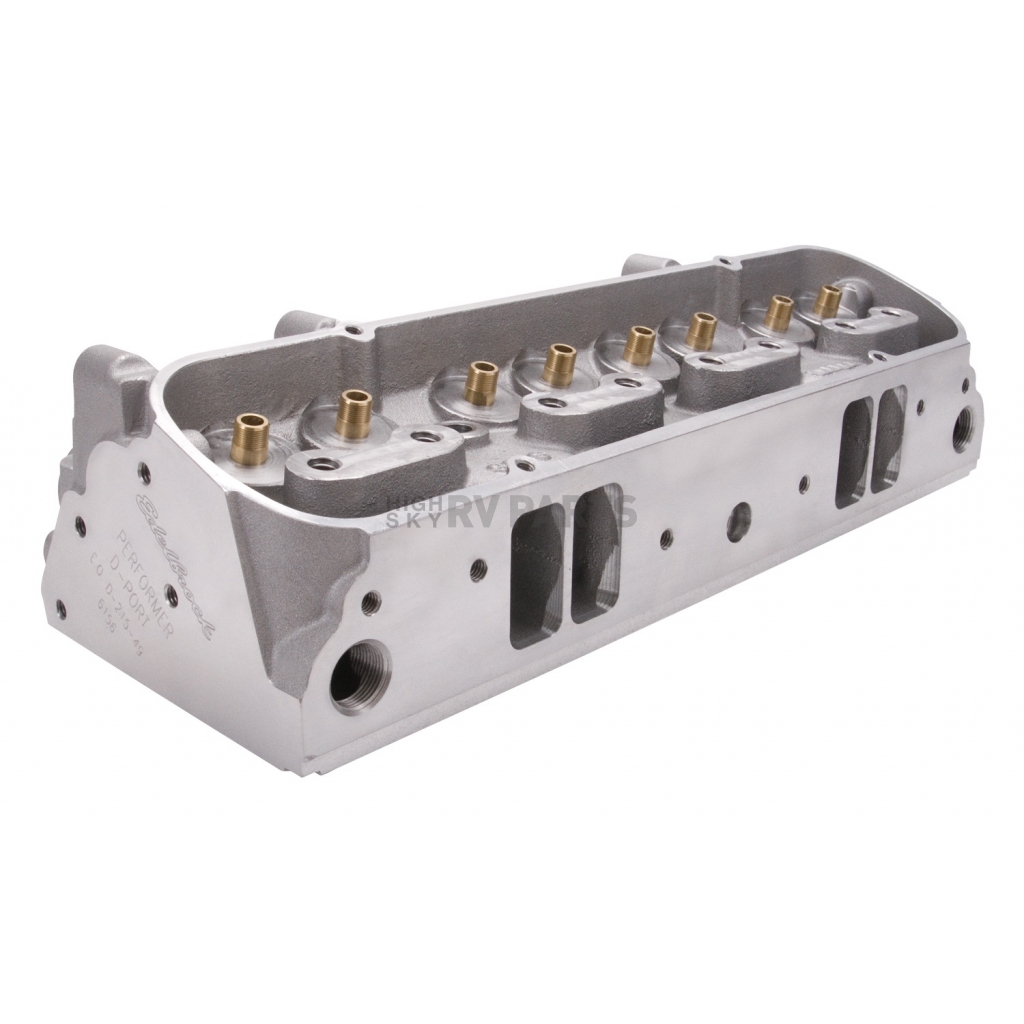

Edelbrock Cylinder Head
Cylinder Head; Performer; Bare; Pontiac 6.4L-7.5L/389-455 Cubic Inch; Natural Aluminum; 195 CC Intake Port; 145 CC D-Shape Exhaust Port; 87 CC Chamber Volume; Single; With Valve Guides
MPN: 61569

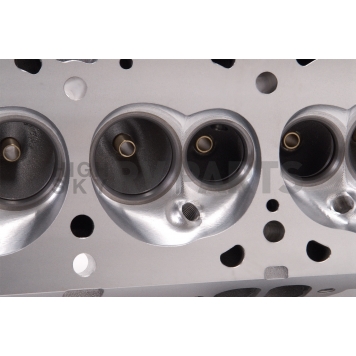

These heads are an all new design that utilizes the D-Port exhaust port configuration for use with standard D-Port aftermarket exhaust systems. Performer Pontiac heads are designed for Pontiac engines with a 4.060 Inch or larger bore. Manufactured with optimized oil return passages for increased oil flow. The casting is manufactured from A356 aluminum and heat treated to T6 specification for superior quality. These heads are available in three dual quench combustion chamber sizes, including 65 Cubic Centimeters, 72 Cubic Centimeters, and 87 Cubic Centimeters. The 65 Cubic Centimeters combustion chambers are As-Cast while the 72 Cubic Centimeters and 87 Cubic Centimeters chambers are fully CNC’d to provide a 9.5:1 compression ratio when used with flat top pistons. The spark plug has been relocated closer to the exhaust valve for improved performance. These heads are cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete heads include guide plates, rocker studs and high quality valvetrain for direct Bolt-On application. Heat crossover is machined for 50 state emissions legal performance
Condition: New
Engine Compatibility: Pontiac V8 6.4L-7.5L 389-455 Cubic Inch
Style: Bare
Finish: Satin
Material: Aluminum
CNC-Machined: No
Combustion Chamber Volume (cc): 87 Cubic Centimeter
Intake Runner Volume (CC): 195 Cubic Centimeter
Exhaust Runner Volume (CC): 145 Cubic Centimeter
Port Shape: D-Shape
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.11 Inch
Exhaust Valve Diameter (IN): 1.66 Inch
Includes Valves: No
Rocker Arm Nut Thread Size: 7/16 Inch
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: No Springs
Includes Guideplates: No
Includes Damper Spring: No
Features
- Choice Of Fully CNC Ported 72 Cubic Centimeters Or 87 Cubic Centimeters Combustion Chamber, Or As Cast 65 Cubic Centimeters Chamber
- Cast With Extra Thick Port Walls And A Compact Port Size, Making Them Ideal For CNC And Hand Porting
- Spark Plugs Relocated Closer To Exhaust Valve
- Improved Oil Return Passages
- Includes Machined Heat Crossover Passage
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 61569 | |
| CNC-Machined | No |
| Combustion Chamber Volume (cc) | 87 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Pontiac V8 6.4L-7.5L 389-455 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 145 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.66 Inch |
| Finish | Satin |
| Includes Damper Spring | No |
| Includes Guideplates | No |
| Includes Rocker Arm Studs | No |
| Includes Valves | No |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 195 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.11 Inch |
| Material | Aluminum |
| Number Of Springs Per Valve | No Springs |
| Port Shape | D-Shape |
| Rocker Arm Nut Thread Size | 7/16 Inch |
| Style | Bare |
| Valve Guide Material | Manganese Bronze |
| Valve Lock Type | No Valve Lock |
| Valve Stem Seal Type | No Valve Stem Seal |
1900 Pontiac V8 326-455
