Edelbrock Cylinder Head 61515
CNC-Machined
Yes
Combustion Chamber Volume (cc)
87 Cubic Centimeter
Condition
New
Engine Compatibility
Pontiac V8 389-455 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
175 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.66 Inch
Finish
Satin
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Includes Valves
Yes
Share this page

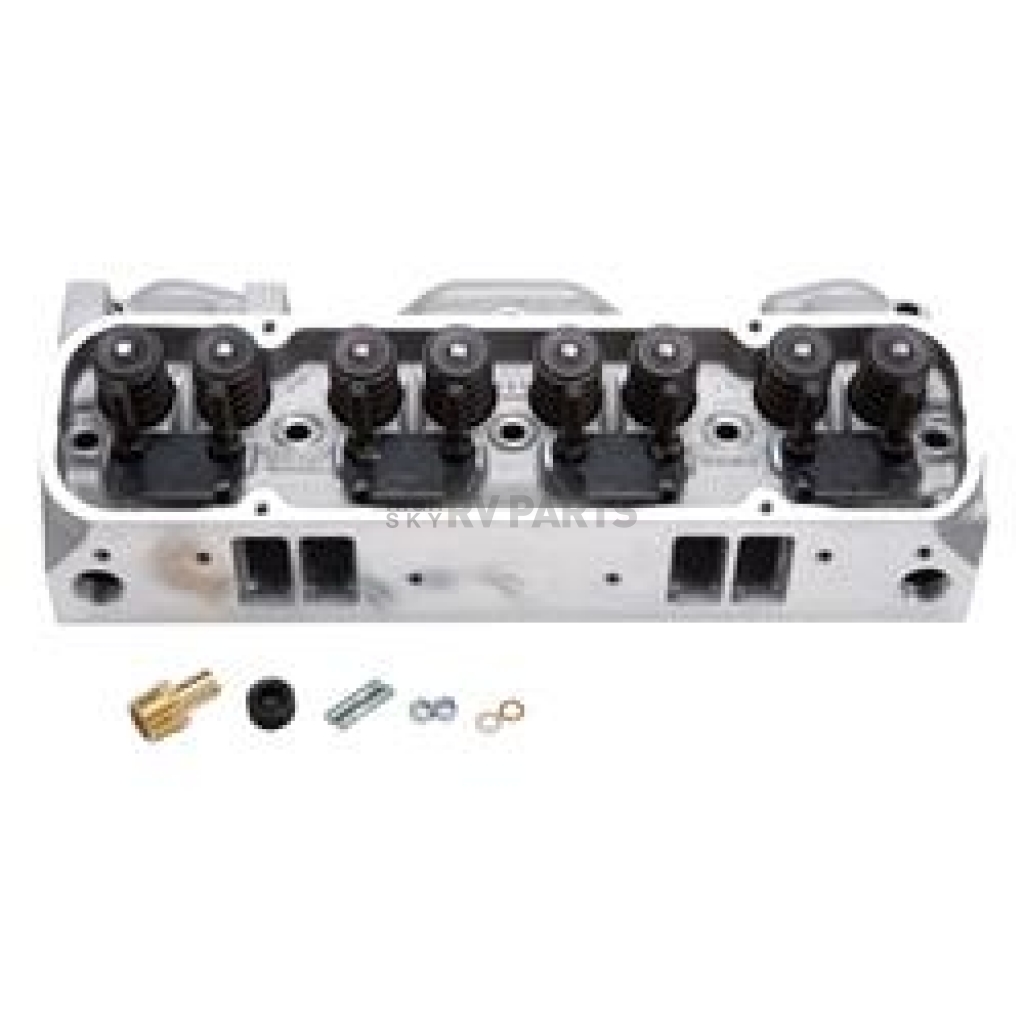

Edelbrock Cylinder Head
Cylinder Head; Performer RPM; Assembled; Pontiac 455 Cubic Inch Engine; Aluminum; 215 CC Intake Port/ 175 CC Exhaust Port; CNC Machined 87 CC Chamber Volume; 2.11 Inch Intake Valve/ 1.66 Inch Exhaust Valve; 1.46 Inch Spring Diameter; Single; With Valves/ Guides/ Seats/ Springs For Hydraulic Roller Cam; Not For Sale Or Use On Pollution Controlled Vehicles
MPN: 61515
Performer RPM CNC cylinder heads have the same specifications as our popular Performer RPM cylinder heads for 1962 to 79 455cid Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder heads are available in two chamber sizes. The 87 Cubic Centimeter chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. Performer RPM CNC cylinder heads with 72 Cubic Centimeter chambers are best for higher compression engines. Both are patterned after the same port flange configuration as the 1969 to 1970 Ram Air IV Pontiac cylinder head.
Condition: New
Engine Compatibility: Pontiac V8 389-455 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 87 Cubic Centimeter
Intake Runner Volume (CC): 215 Cubic Centimeter
Exhaust Runner Volume (CC): 175 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.11 Inch
Exhaust Valve Diameter (IN): 1.66 Inch
Includes Valves: Yes
Rocker Arm Nut Thread Size: 7/16 Inch
Includes Rocker Arm Studs: Yes
Valve Guide Material: Manganese Bronze
Machined For O-Ring: No
Includes Guideplates: Yes
Features
- The CNC Machined Chamber Results In A Consistent And Precise Chamber For Improved Flow Performance
- Performer RPM CNC Cylinder Heads Are Available In Two Chamber Sizes
- 87 Cubic Centimeter Chamber Version Is Ideal For 9.5:1 Engines And Will Deliver Excellent Street Performance On Low Octane Fuel
- Performer RPM CNC Cylinder Heads With 72 Cubic Centimeter Chambers Are Best For Higher Compression Engines
- Both Are Patterned After The Same Port Flange Configuration As The 1969 To 1970 Ram Air IV Pontiac Cylinder Head
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 61515 | |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 87 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Pontiac V8 389-455 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 175 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.66 Inch |
| Finish | Satin |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | Yes |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 215 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.11 Inch |
| Machined For O-Ring | No |
| Material | Aluminum |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | 7/16 Inch |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
1900 Pontiac V8 326-455
