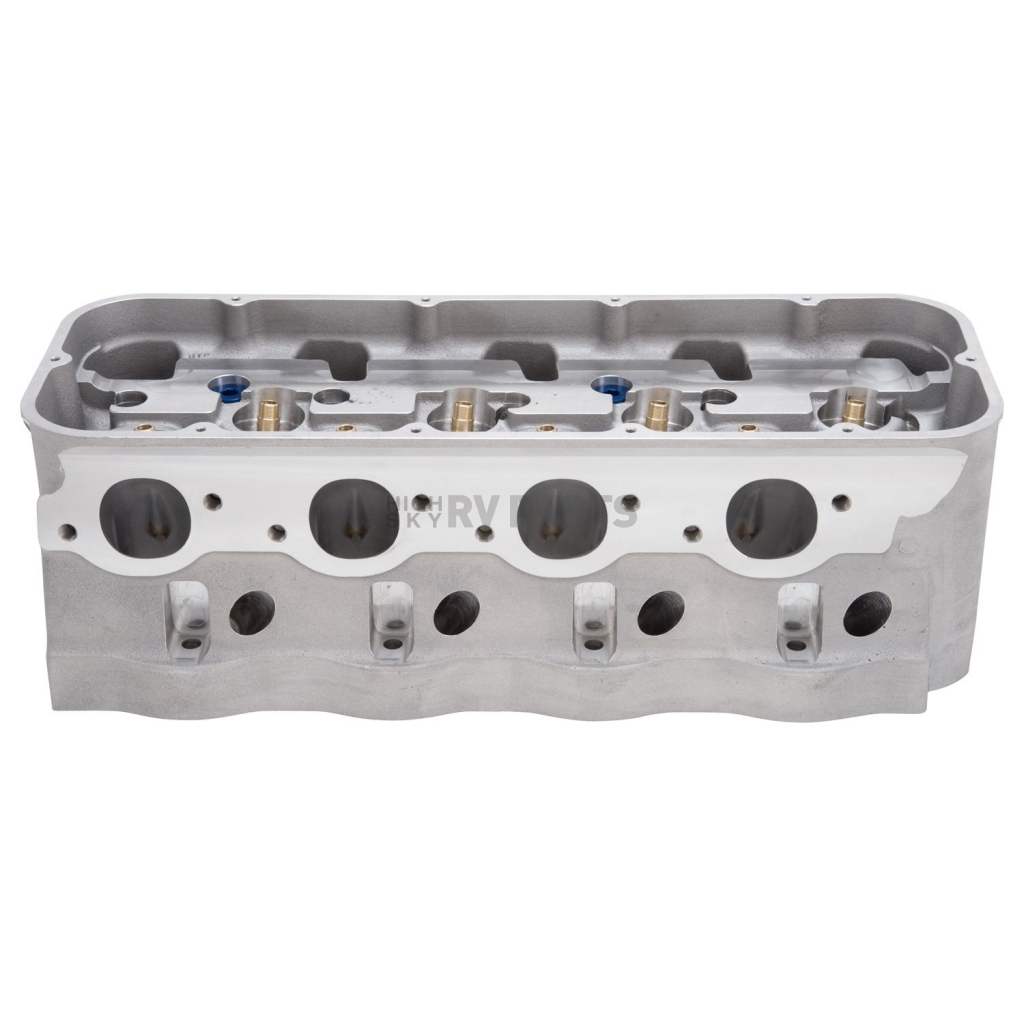

Edelbrock Cylinder Head 614669

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 614669
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $3,182.54
Price: $3,030.99
You Save: $151.55
CNC-Machined
Yes
Condition
New
Engine Compatibility
Chevy Big Block 11 Degree V8 396-454 Cubic Inch
Exhaust Port Location
Standard
Exhaust Valve Diameter (IN)
1.89 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Includes Valves
No
Intake Port Location
Standard
Share this page

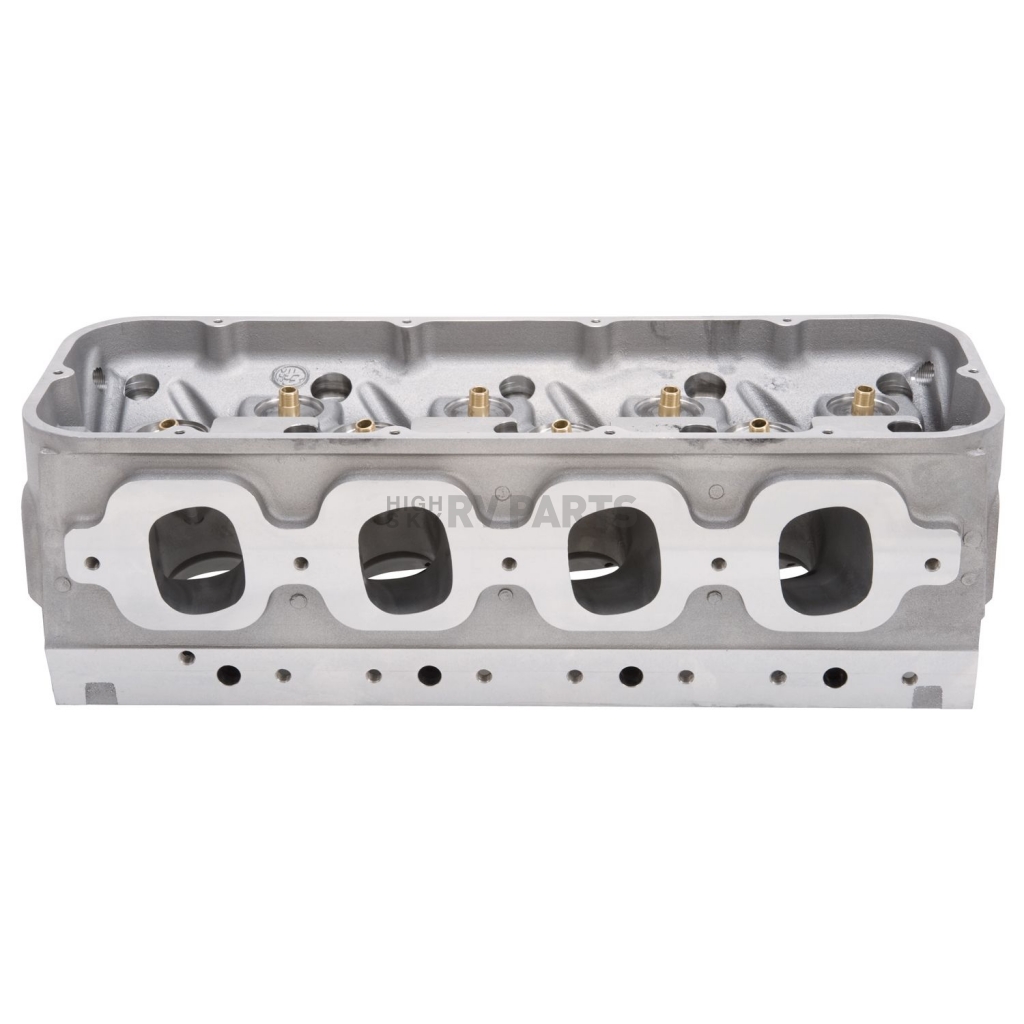

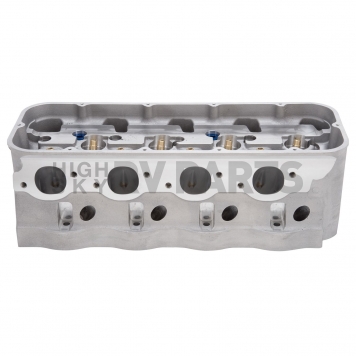

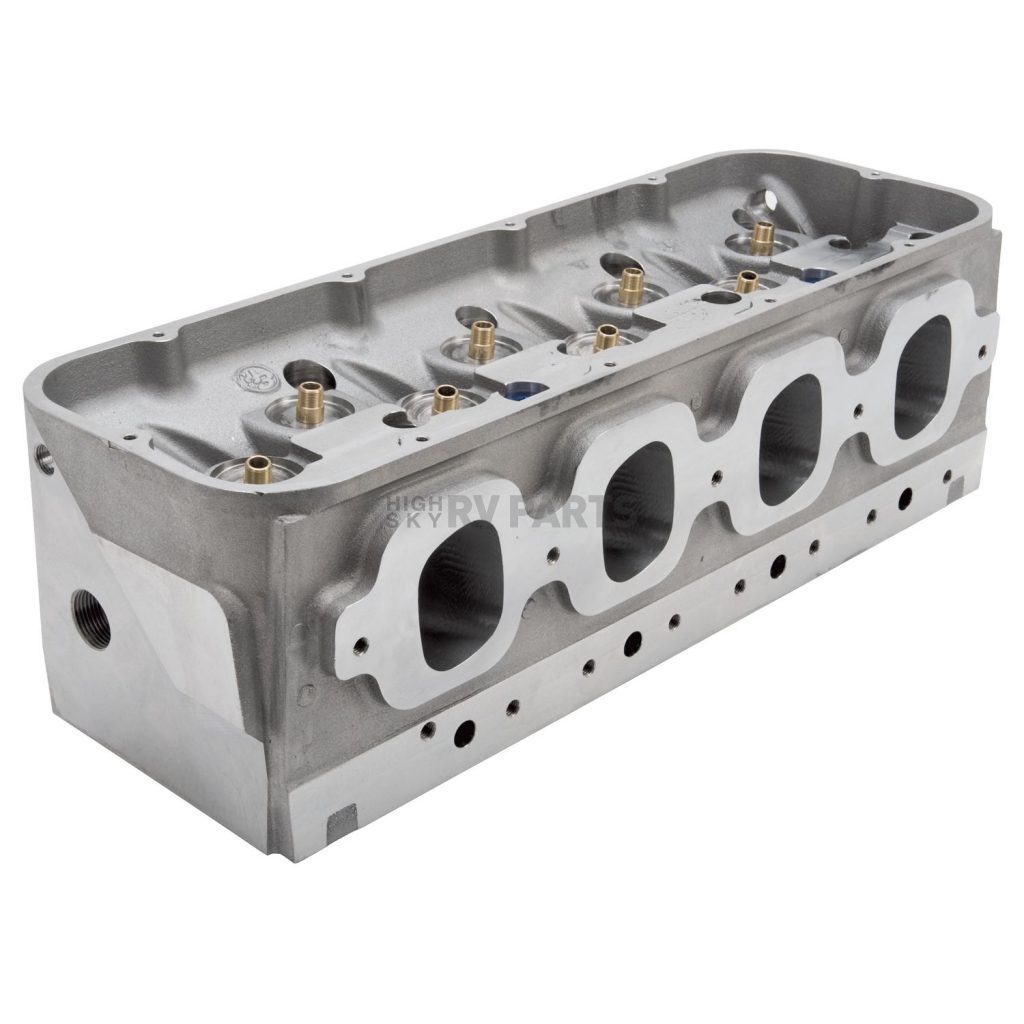

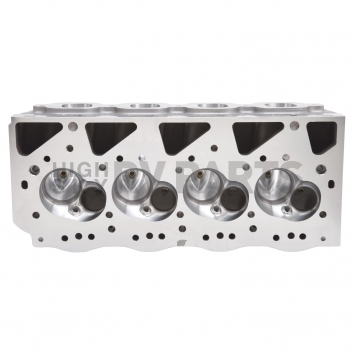

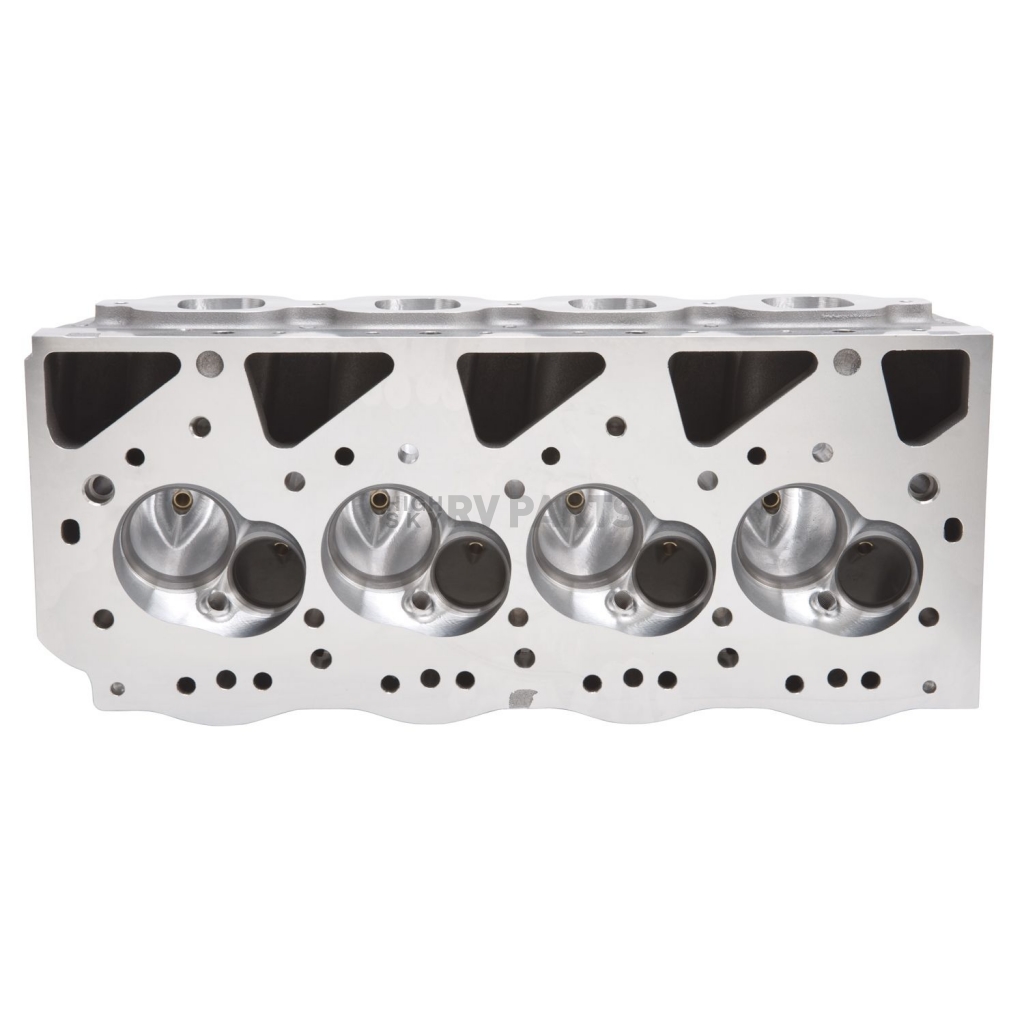

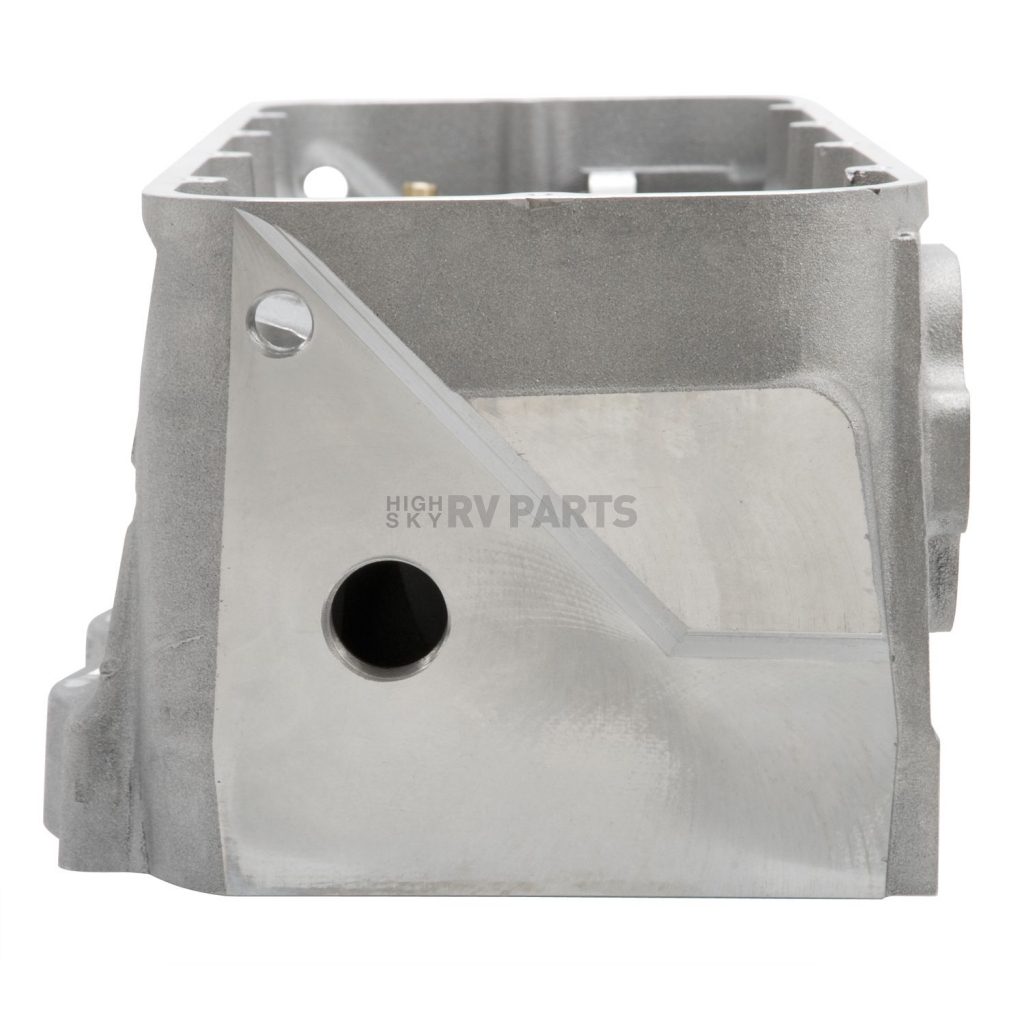

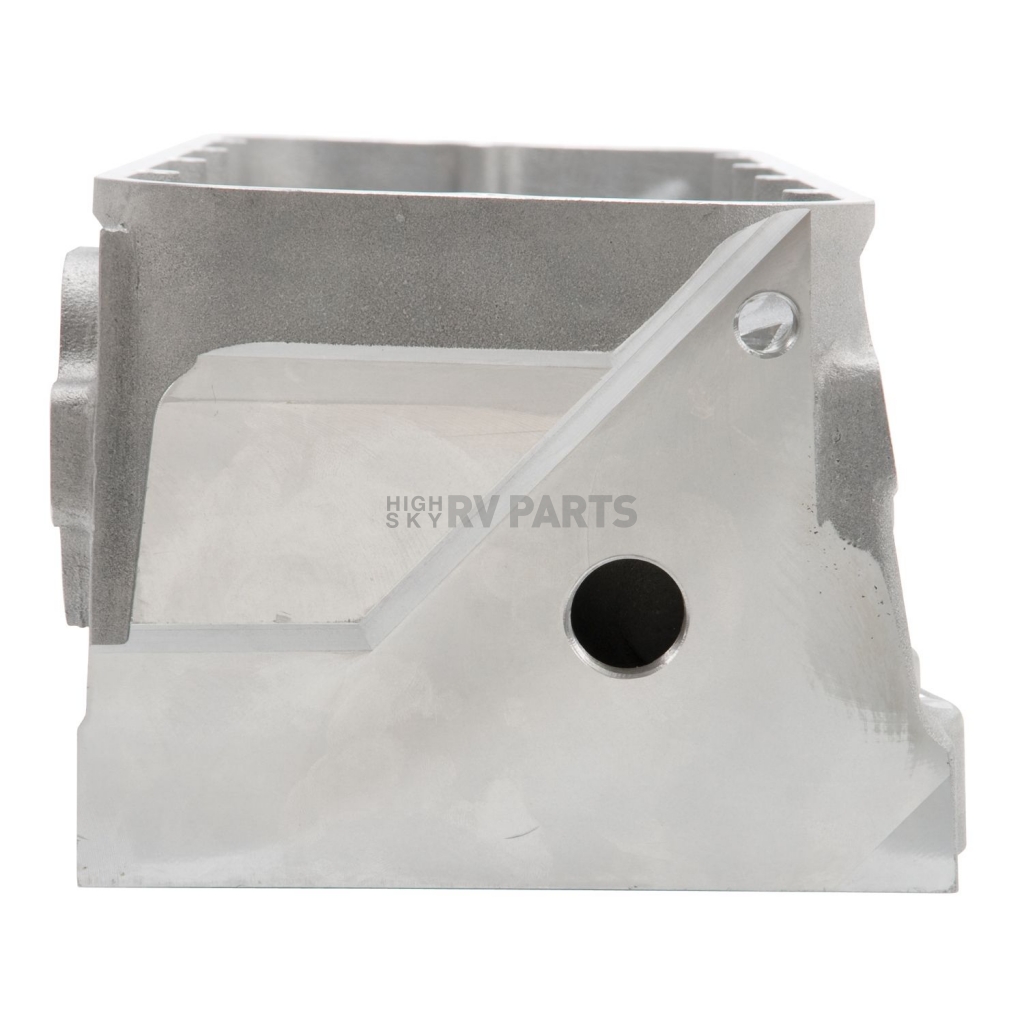

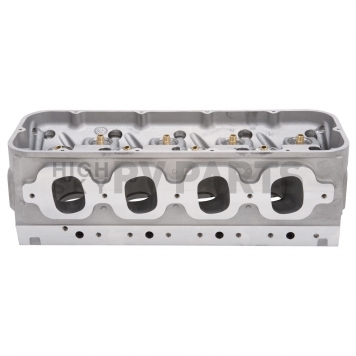

Edelbrock Cylinder Head

Cylinder Head; Big Victor III; Bare; Unported; These Cylinder Heads Can Not Be Used Without Professional Head Preparation; For Use With Big Block Chevy Engines; 4.84 Inch Bore Spacing; 11 Degree Valve Angle; 2.52 Inch X 2.15 Inch Intake Port Entry; 1.84 Inch X 1.50 Inch Exhaust Port Exit; Use With 2.52 Inch Intake Valves And 1.90 Inch Exhaust Valves; Hot Isostatic Pressing (HIP) Process; Natural; Aluminum; Single; Valve Guides Included But Not Installed

MPN: 614669

Big Victor III Pro-Port raw cylinder heads are an exciting next generation in high output Edelbrock big block Chevrolet cylinder head performance. These heads are an all new design aimed at giving the sportsman racer a symmetrical port design, similar to the pro stock DRCE3, for increased air flow and power. All Edelbrock Pro-Port raw cylinder heads include extra material in the casting to allow professional cylinder head porters and engine builders to apply their own unique CNC programs. Big Victor III heads are available in 11 Degrees and 14 Degrees valve angles for improved air flow compared to existing 18 Degrees designs and also in 4.84 Inch and 5 Inch bore spacing configurations. They have more oil drain backs than traditional spread-port heads for improved oil flow and distribution. These heads also include an exclusive new water passage design for more efficient cooling when matched with the optional valley plate. Also includes a traditional water passage design for a variety of applications. These cylinder heads have a redesigned In-Line valvetrain geometry for improved stability, delivering consistency and reliability up to 10000 RPM. Requires the use of a jesel or tandd shaft mounted rocker system. Castings Are Made From A356 Aluminum And Are Hot Isostatic Pressing(HIP) processed for superior strength, durability and exceptional finish quality. Custom valves and pistons will be required
Condition: New
Engine Compatibility: Chevy Big Block 11 Degree V8 396-454 Cubic Inch
Style: Bare
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.52 Inch
Exhaust Valve Diameter (IN): 1.89 Inch
Includes Valves: No
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: No Springs
Includes Guideplates: No
Includes Damper Spring: No

Features

  • They Have More Oil Drain Backs Than Traditional Spread-Port Heads For Improved Oil Flow And Distribution
  • Include An Exclusive New Water Passage Design For More Efficient Cooling
  • These Cylinder Heads Have A Redesigned In-Line Valvetrain Geometry For Improved Stability, Delivering Consistency And Reliability Up To 10,000 RPM
  • Castings Are Made From A356 Aluminum And Are Hot Isostatic Pressing(HIP) Processed For Superior Strength, Durability And Exceptional Finish Quality
  • Limited 1 Year Warranty
Specifications of Edelbrock Cylinder Head 614669
CNC-Machined Yes
Condition New
Engine Compatibility Chevy Big Block 11 Degree V8 396-454 Cubic Inch
Exhaust Port Location Standard
Exhaust Valve Diameter (IN) 1.89 Inch
Finish Satin
Includes Damper Spring No
Includes Guideplates No
Includes Rocker Arm Studs No
Includes Valves No
Intake Port Location Standard
Intake Valve Diameter (IN) 2.52 Inch
Material Aluminum
Number Of Springs Per Valve No Springs
Port Shape Rectangular
Style Bare
Valve Guide Material Manganese Bronze
Valve Lock Type No Valve Lock
Valve Stem Seal Type No Valve Stem Seal

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
