Edelbrock Cylinder Head 60769
CNC-Machined
Yes
Combustion Chamber Volume (cc)
63 Cubic Centimeter
Condition
New
Engine Compatibility
Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
77 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.6 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Share this page

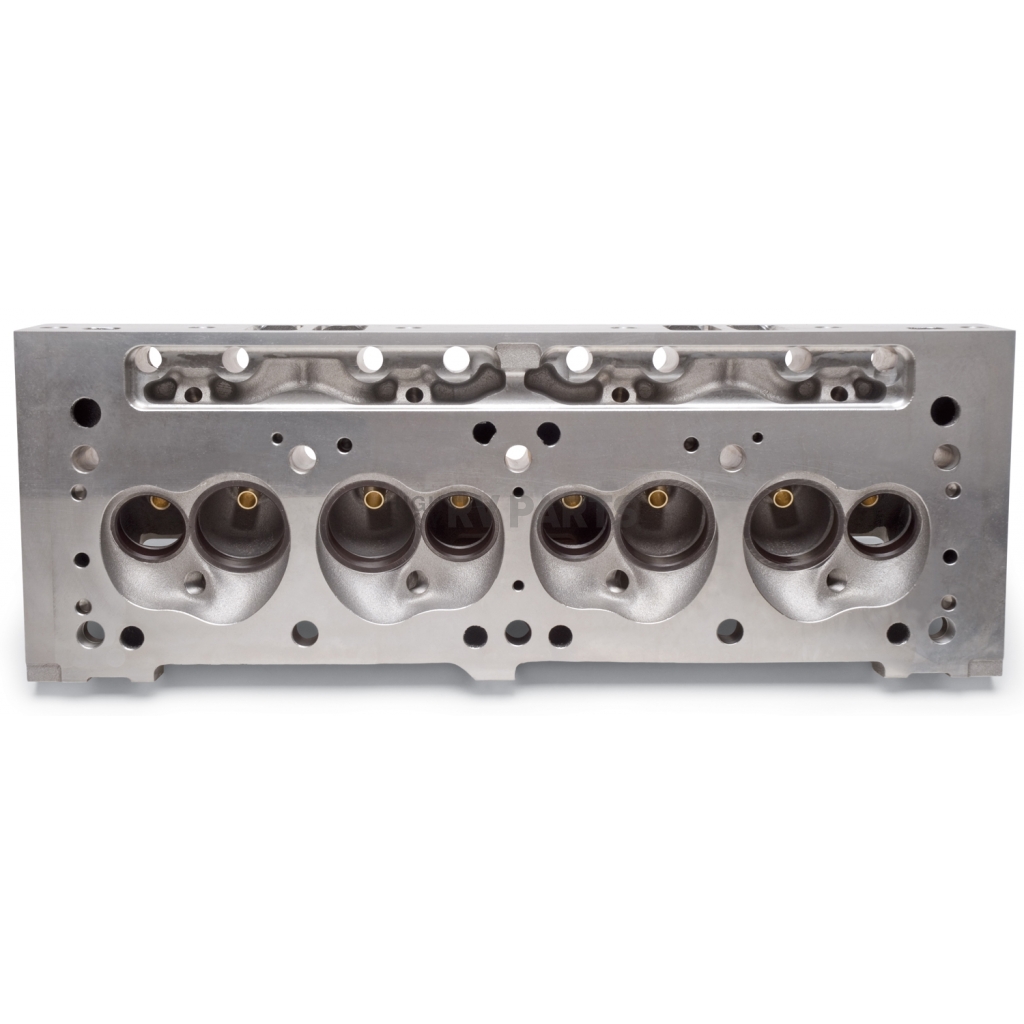

Edelbrock Cylinder Head
Cylinder Head; Performer RPM; Bare; Chrysler 5.2L-5.9L/318-360 Cubic Inch; Natural Aluminum; 171 CC Intake Port; 77 CC Exhaust Port; 63 CC Chamber Volume; Single; With Valve Guides
MPN: 60769
Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where Seat-Of-The-Pants performance is needed. These heads give great Torque and Horsepower up to 6500 RPM
Condition: New
Engine Compatibility: Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch
Style: Bare
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 63 Cubic Centimeter
Intake Runner Volume (CC): 171 Cubic Centimeter
Exhaust Runner Volume (CC): 77 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.02 Inch
Exhaust Valve Diameter (IN): 1.6 Inch
Includes Valves: No
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: No Rocker Arm Nut
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: No Springs
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: No
Includes Damper Spring: No
Features
- RPM Chrysler 340 Heads Have Chambers Machined 0.060 Inch For Clearance With Early High Compression Engines
- These Heads Are Capable Of 417 Horsepower And 397 Foot/Pound Of Torque On Pump Gas With An Edelbrock Performer RPM Intake Manifold And Matching Camshaft
- These Heads Give Great Torque And Horsepower Up To 6500 RPM
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 60769 | |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 63 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Chrysler Small Block V8 5.2L-5.9L 318-360 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 77 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.6 Inch |
| Finish | Satin |
| Includes Damper Spring | No |
| Includes Guideplates | No |
| Includes Rocker Arm Studs | No |
| Includes Valves | No |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 171 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.02 Inch |
| Machined For O-Ring | No |
| Material | Aluminum |
| Number Of Springs Per Valve | No Springs |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | No Rocker Arm Nut |
| Spark Plug Angle | Straight |
| Steam Holes Drilled | No |
| Style | Bare |
| Valve Guide Material | Manganese Bronze |
| Valve Lock Type | No Valve Lock |
| Valve Seats Machined | Yes |
| Valve Stem Seal Type | No Valve Stem Seal |
1900 Chrysler 273-360 LA
