Edelbrock Cylinder Head 60509
CNC-Machined
No
Combustion Chamber Volume (cc)
72 Cubic Centimeter
Condition
New
Engine Compatibility
Pontiac V8 6.4L-7.5L 389-455 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
175 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.66 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
No
Includes Rocker Arm Studs
No
Share this page

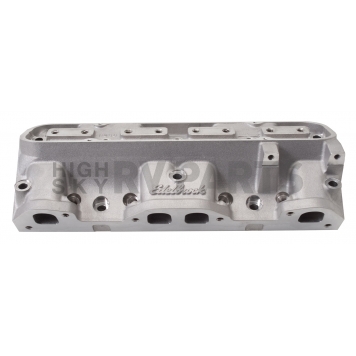

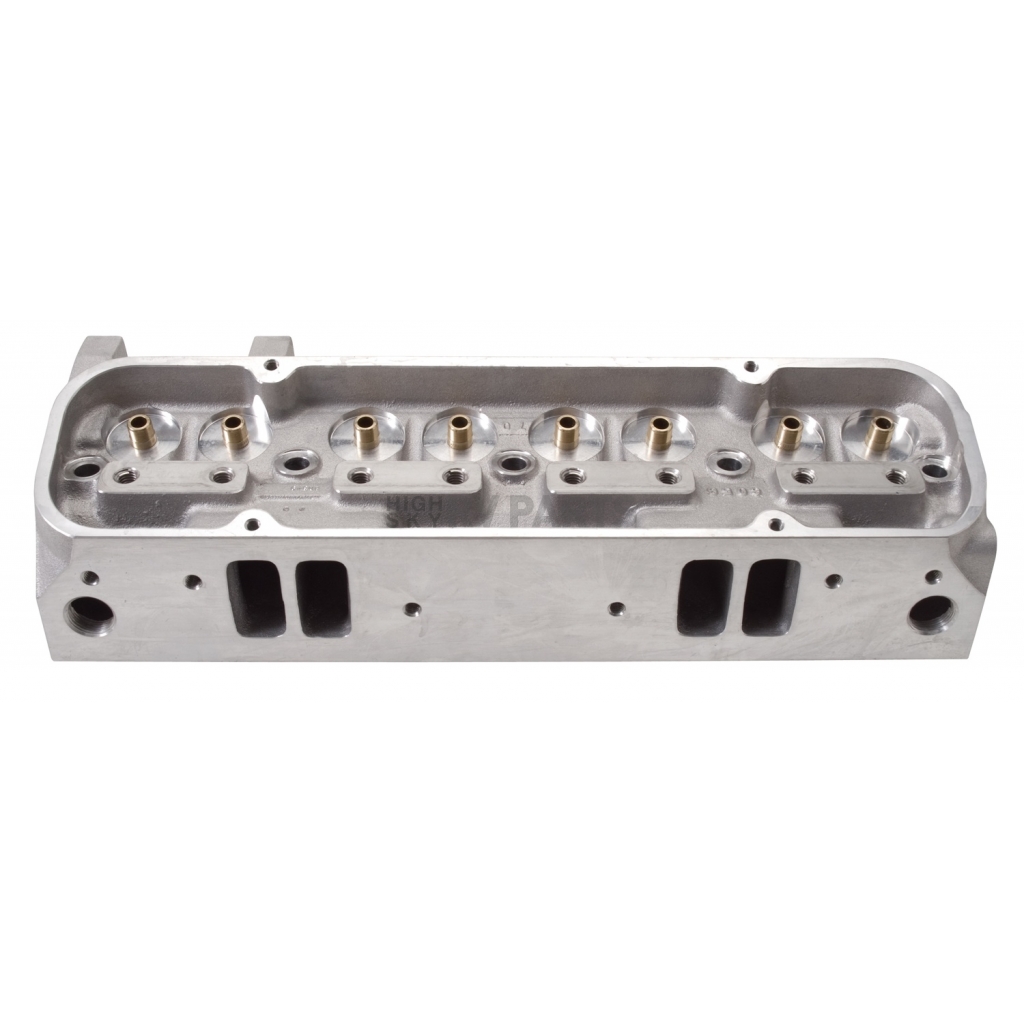

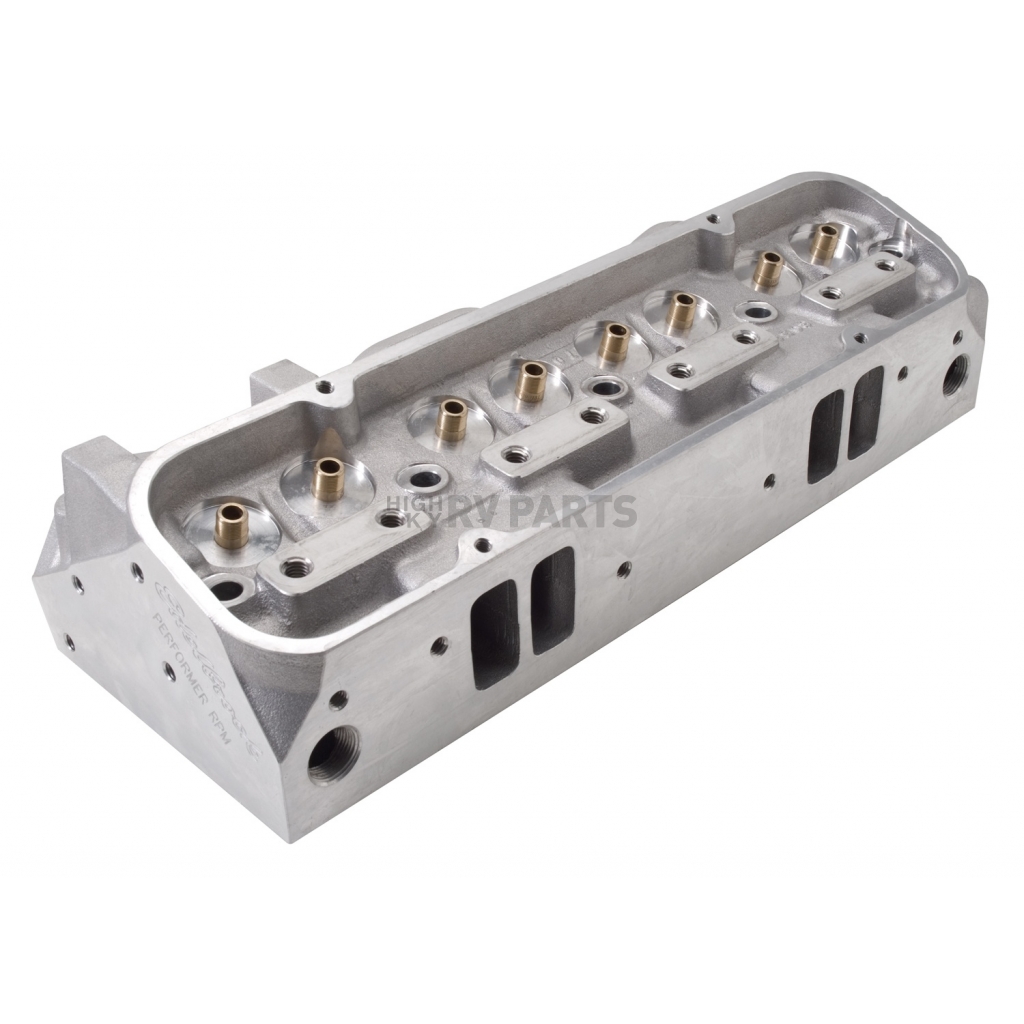

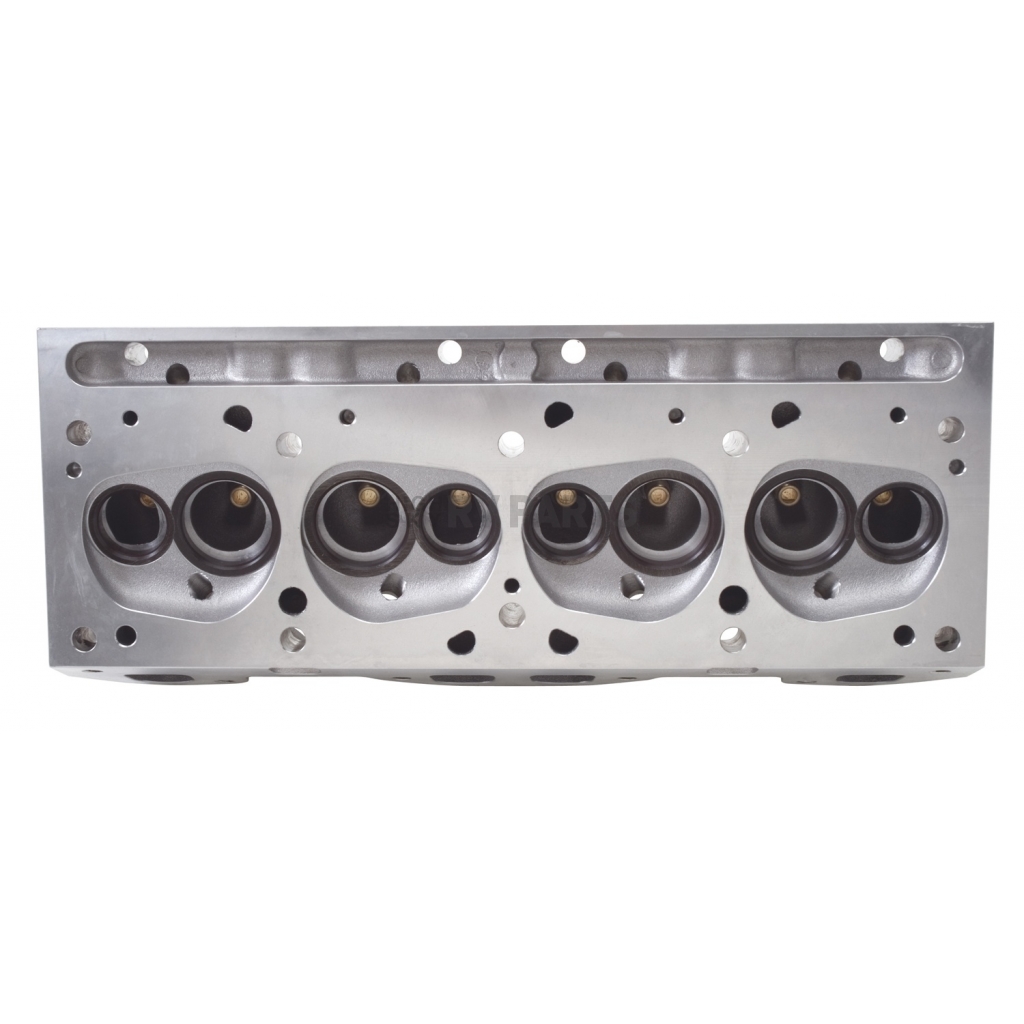

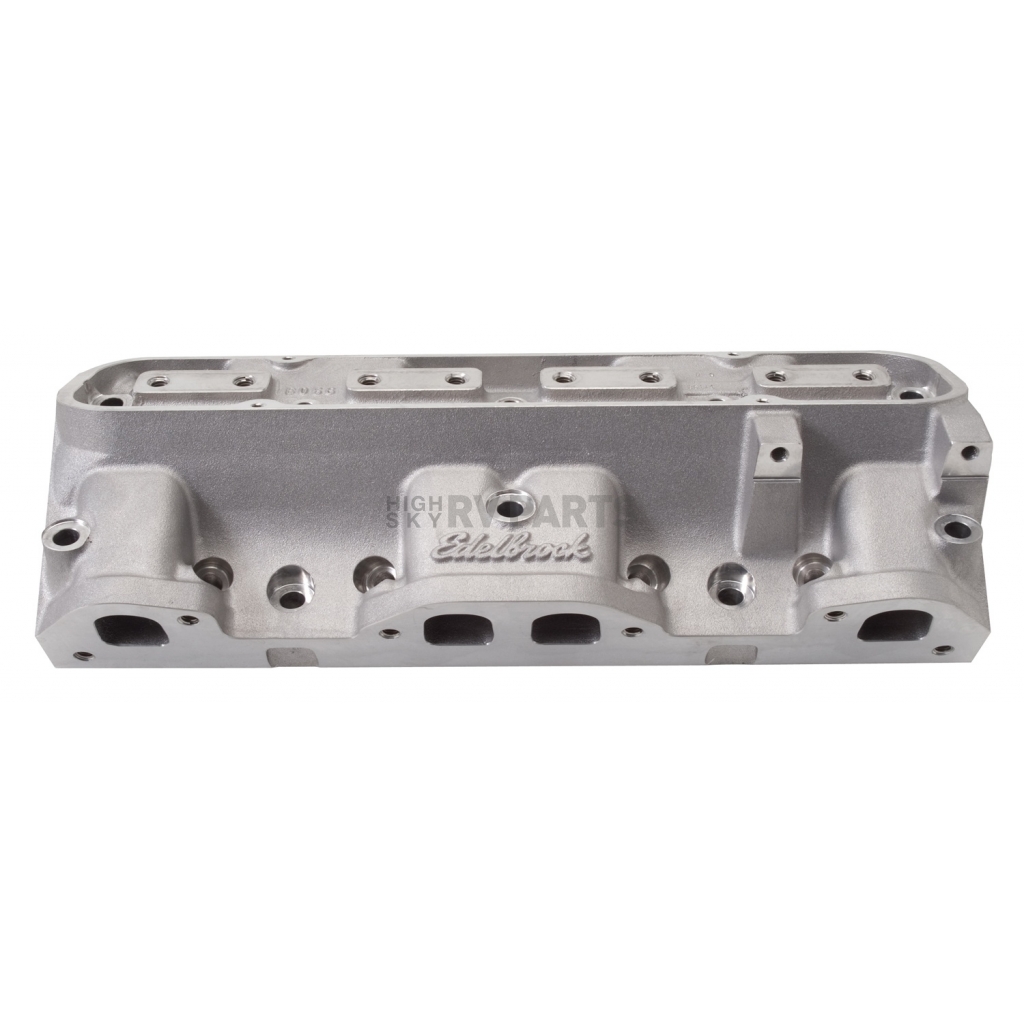

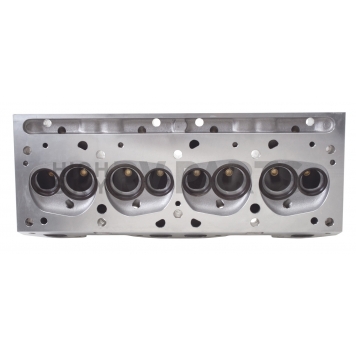

Edelbrock Cylinder Head
Cylinder Head; Performer RPM; Bare; Pontiac 6.4L-7.5L/389-455 Cubic Inch; Natural Aluminum; Semi-Machined Intake and Exhaust Port; Semi-Machined Combustion Chamber; Single
MPN: 60509
Performer heads are 50 state emissions legal and are designed to fit emissions related engines. Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where Seat-Of-The-pants performance is needed. These heads give great Torque and Horsepower up to 6500 RPM
Condition: New
Engine Compatibility: Pontiac V8 6.4L-7.5L 389-455 Cubic Inch
Style: Bare
Finish: Satin
Material: Aluminum
CNC-Machined: No
Combustion Chamber Volume (cc): 72 Cubic Centimeter
Intake Runner Volume (CC): 215 Cubic Centimeter
Exhaust Runner Volume (CC): 175 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.11 Inch
Exhaust Valve Diameter (IN): 1.66 Inch
Includes Valves: No
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: 7/16 Inch
Includes Rocker Arm Studs: No
Valve Lock Type: No Valve Lock
Valve Stem Seal Type: No Valve Stem Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: No Springs
Valve Seats Machined: Yes
Includes Guideplates: No
Includes Damper Spring: No
Features
- These Heads Give Great Torque And Horsepower Up To 6500 RPM
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 60509 | |
| CNC-Machined | No |
| Combustion Chamber Volume (cc) | 72 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Pontiac V8 6.4L-7.5L 389-455 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 175 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.66 Inch |
| Finish | Satin |
| Includes Damper Spring | No |
| Includes Guideplates | No |
| Includes Rocker Arm Studs | No |
| Includes Valves | No |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 215 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.11 Inch |
| Material | Aluminum |
| Number Of Springs Per Valve | No Springs |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | 7/16 Inch |
| Spark Plug Angle | Straight |
| Style | Bare |
| Valve Guide Material | Manganese Bronze |
| Valve Lock Type | No Valve Lock |
| Valve Seats Machined | Yes |
| Valve Stem Seal Type | No Valve Stem Seal |
1900 Pontiac V8 326-455
