Edelbrock Cylinder Head 60139
CNC-Machined
Yes
Combustion Chamber Volume (cc)
54 Cubic Centimeter
Condition
New
Engine Compatibility
AMC 5.6L-6.6L 343-401 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
70 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.6 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Share this page

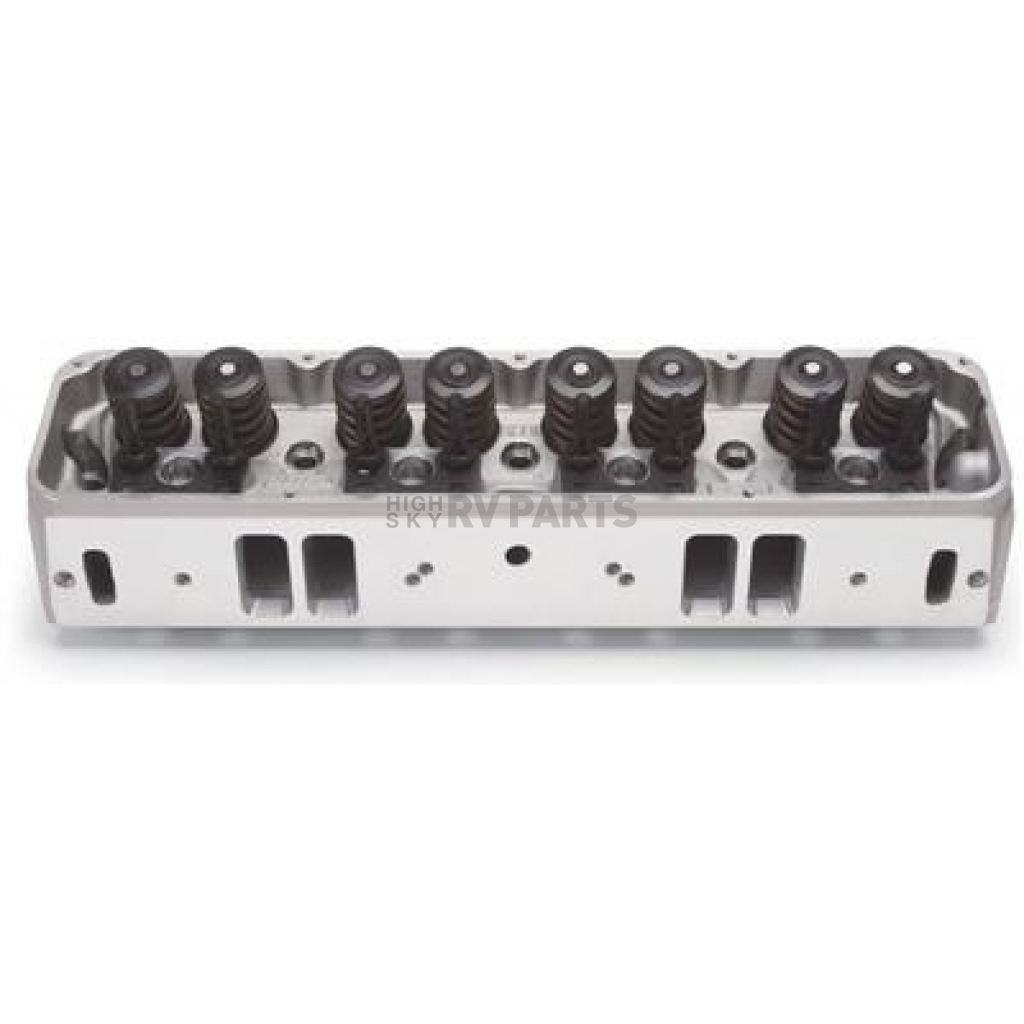

Edelbrock Cylinder Head
Cylinder Head; Assembled; AMC 5.6L-6.6L/343-401 Cubic Inch; Natural Aluminum; 185 CC Intake Port; 70 CC Exhaust Port; 54 CC Chamber Volume; 2.02 Inch Intake Valve; 1.60 Inch Exhaust Valve; 1.55 Inch Spring Diameter; Single; With Pushrod Guides; Rocker Studs
MPN: 60139
Bolt-On Edelbrock performance for AMX, Javelin, Jeep and more. Designed for 343, 360, 390 and 401 AMC engines. These heads include adjustable rocker stud and guide plate Set-Up for use with small block Chevy style adjustable 1.6:1 ratio rockers. The intake flange is dual drilled to accommodate early and late model intake bolt patterns. Features stock location intake ports for compatibility with standard manifolds and headers. A direct Bolt-On for engines with 1/2 Inch head bolts, these heads include step dowel pins for engines. Dual quench combustion chamber produces approximately 9.5:1 compression in 401 V8's. 45 Degree intake seat angle offers improved mid to high lift flow over the stock 30 Degree angle. Performer heads have a machined heat crossover for 50 state emissions legal performance
Condition: New
Engine Compatibility: AMC 5.6L-6.6L 343-401 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 54 Cubic Centimeter
Intake Runner Volume (CC): 185 Cubic Centimeter
Exhaust Runner Volume (CC): 70 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.02 Inch
Exhaust Valve Diameter (IN): 1.6 Inch
Includes Valves: Yes
Spark Plug Angle: Straight
Rocker Arm Nut Thread Size: 3/8 Inch
Includes Rocker Arm Studs: Yes
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: Single
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: Yes
Includes Damper Spring: No
Features
- Features Stock Location Intake Ports For Compatibility With Standard Manifolds And Headers
- These Heads Include Adjustable Rocker Stud And Guide Plate Set-Up For Use With Small Block Chevy Style Adjustable 1.6:1 Ratio Rockers
- Have A Machined Heat Crossover For 50 State Emissions Legal Performance
- Limited 1 Year Warranty
| Specifications of Edelbrock Cylinder Head 60139 | |
| CNC-Machined | Yes |
| Combustion Chamber Volume (cc) | 54 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | AMC 5.6L-6.6L 343-401 Cubic Inch |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 70 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.6 Inch |
| Finish | Satin |
| Includes Damper Spring | No |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | Yes |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 185 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.02 Inch |
| Machined For O-Ring | No |
| Material | Aluminum |
| Number Of Springs Per Valve | Single |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | 3/8 Inch |
| Spark Plug Angle | Straight |
| Steam Holes Drilled | No |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
| Valve Seats Machined | Yes |
1900-1900 American Motors 290-401
1900 American Motors 290-401
