Edelbrock Cylinder Head 50459

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 50459
  • Part Location: U.S.
  • Availability: 8 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $1,506.74
Price: $1,434.99
You Save: $71.75
CNC-Machined
Yes
Combustion Chamber Volume (cc)
110 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy Big Block V8 6.9L-7.4L 396-454 Cubic Inch
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
110 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.88 Inch
Finish
Satin
Includes Damper Spring
No
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Share this page

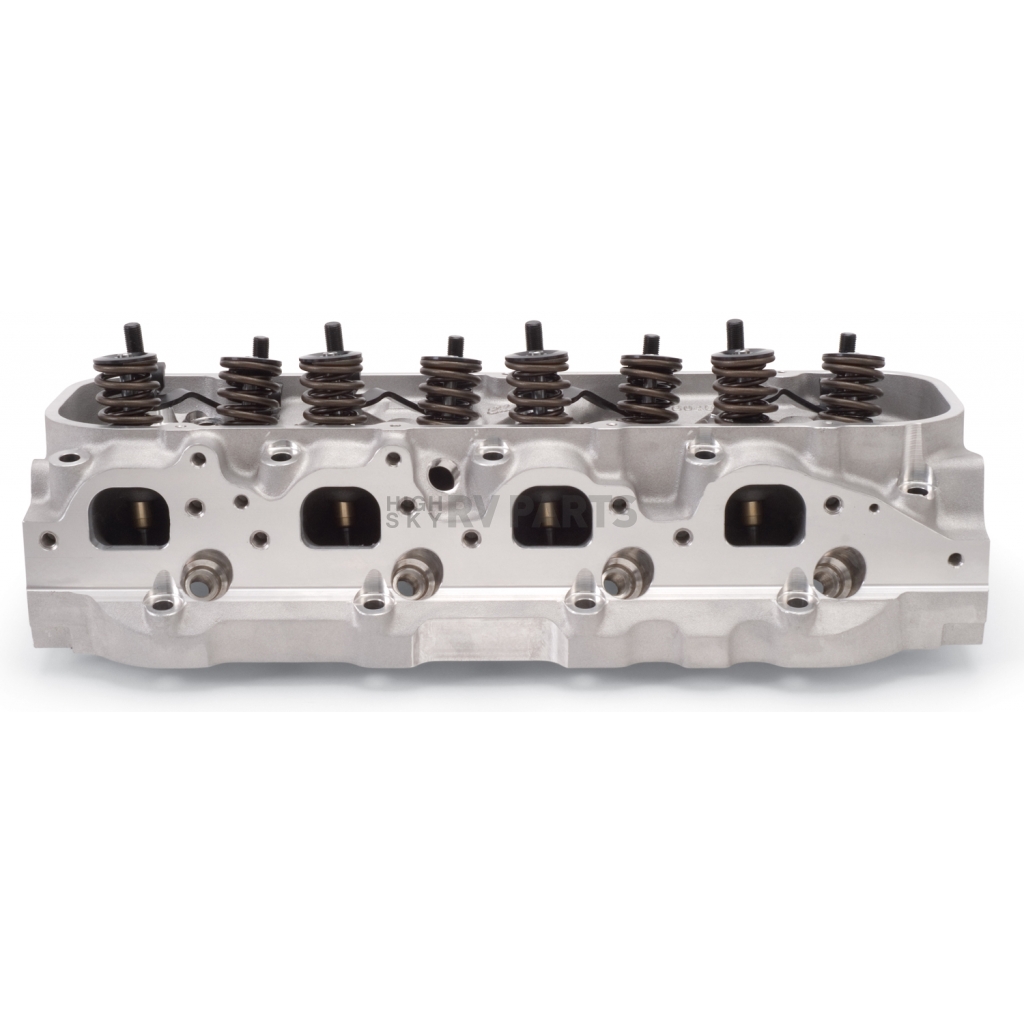

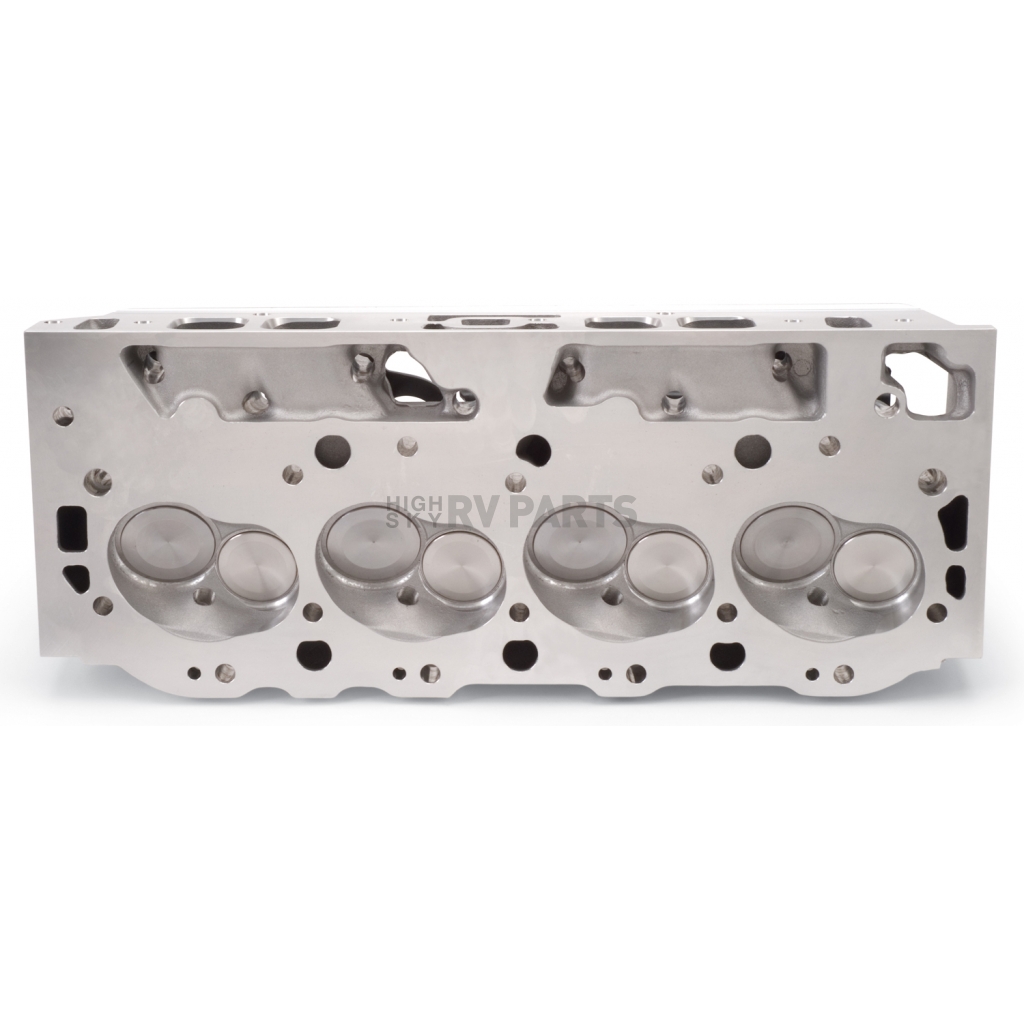

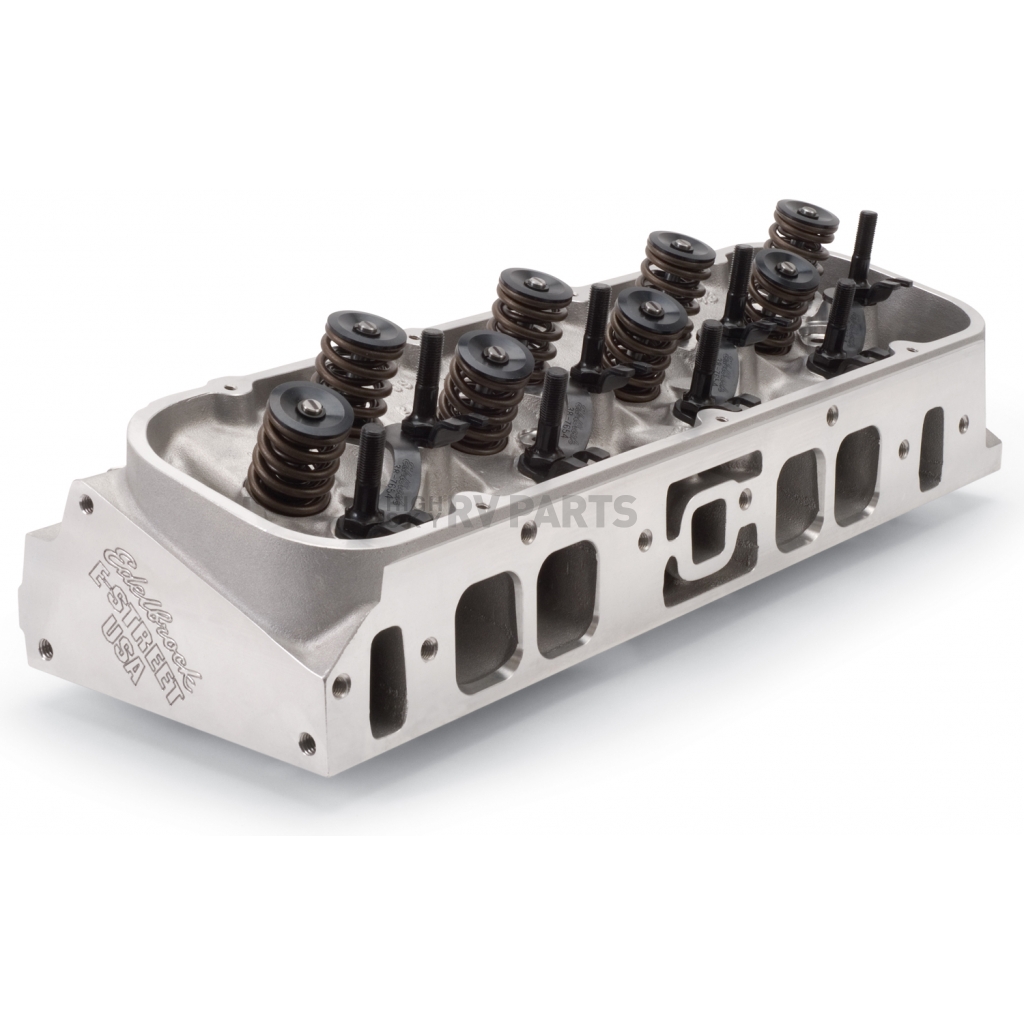

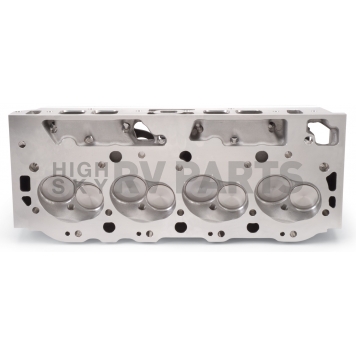

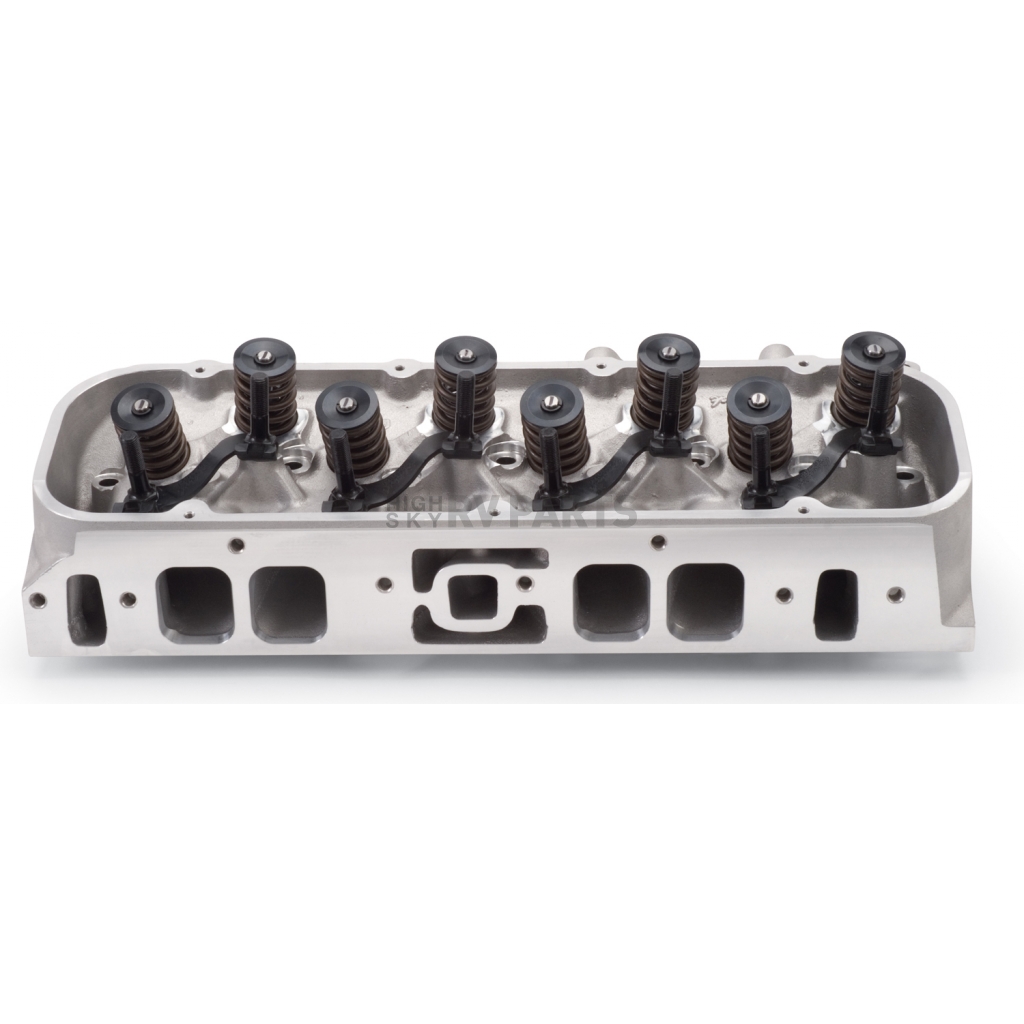

Edelbrock Cylinder Head

Cylinder Head; E-Street; Assembled; Chevy Big Block; Natural Aluminum; 290 CC Oval Intake Port; 110 CC Exhaust Port; 110 CC Chamber Volume; 2.19 Inch Intake Valve; 1.88 Inch Exhaust Valve; 1.55 Inch Spring Diameter; Single; With Pushrod Guides; Rocker Studs

MPN: 50459

Edelbrock's all new line of heads are designed for entry level street performance engines and ideal for operating in the idle to 5500 RPM range. Manufactured in the USA, by Edelbrock, these heads feature A356 aluminum castings that are heat treated to T6 spec for superior casting strength and quality. Their modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine. These features improve an engine's efficiency, resulting in more Horsepower and Torque and improved mileage potential. Additional qualities include hardened spring cups for long-term wear protection and Heli-Coil™ threaded inserts in the exhaust flanges and rocker stud bosses for increased strength, these are the details that most low cost competitors leave out of their heads
Condition: New
Engine Compatibility: Chevy Big Block V8 6.9L-7.4L 396-454 Cubic Inch
Style: Assembled
Finish: Satin
Material: Aluminum
CNC-Machined: Yes
Combustion Chamber Volume (cc): 110 Cubic Centimeter
Intake Runner Volume (CC): 290 Cubic Centimeter
Exhaust Runner Volume (CC): 110 Cubic Centimeter
Port Shape: Oval
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.19 Inch
Exhaust Valve Diameter (IN): 1.88 Inch
Includes Valves: Yes
Spark Plug Angle: Angled
Rocker Arm Nut Thread Size: 7/16 Inch
Includes Rocker Arm Studs: Yes
Valve Lock Type: 7 Degree
Valve Stem Seal Type: Umbrella
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: 1
Valve Seats Machined: Yes
Steam Holes Drilled: No
Machined For O-Ring: No
Includes Guideplates: Yes
Includes Damper Spring: No

Features

  • A356 Aluminum Castings That Are Heat Treated To T6 Spec For Superior Casting Strength And Quality
  • Their Modern Combustion Chamber Designs Improve The Combustion Process And Larger Than Stock Intake And Exhaust Ports Move More Air Through Your Engine
  • These Features Improve An Engine's Efficiency, Resulting In More Horsepower And Torque And Improved Mileage Potential
  • Limited 1 Year Warranty
Specifications of Edelbrock Cylinder Head 50459
CNC-Machined Yes
Combustion Chamber Volume (cc) 110 Cubic Centimeter
Condition New
Engine Compatibility Chevy Big Block V8 6.9L-7.4L 396-454 Cubic Inch
Exhaust Port Location Standard
Exhaust Runner Volume (CC) 110 Cubic Centimeter
Exhaust Valve Diameter (IN) 1.88 Inch
Finish Satin
Includes Damper Spring No
Includes Guideplates Yes
Includes Rocker Arm Studs Yes
Includes Valves Yes
Intake Port Location Standard
Intake Runner Volume (CC) 290 Cubic Centimeter
Intake Valve Diameter (IN) 2.19 Inch
Machined For O-Ring No
Material Aluminum
Number Of Springs Per Valve 1
Port Shape Oval
Rocker Arm Nut Thread Size 7/16 Inch
Spark Plug Angle Angled
Steam Holes Drilled No
Style Assembled
Valve Guide Material Manganese Bronze
Valve Lock Type 7 Degree
Valve Seats Machined Yes
Valve Stem Seal Type Umbrella

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
