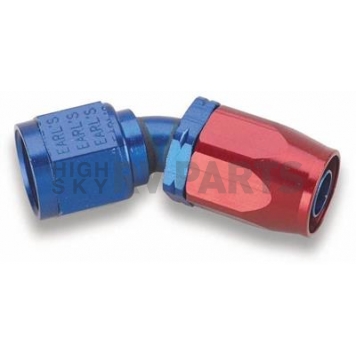

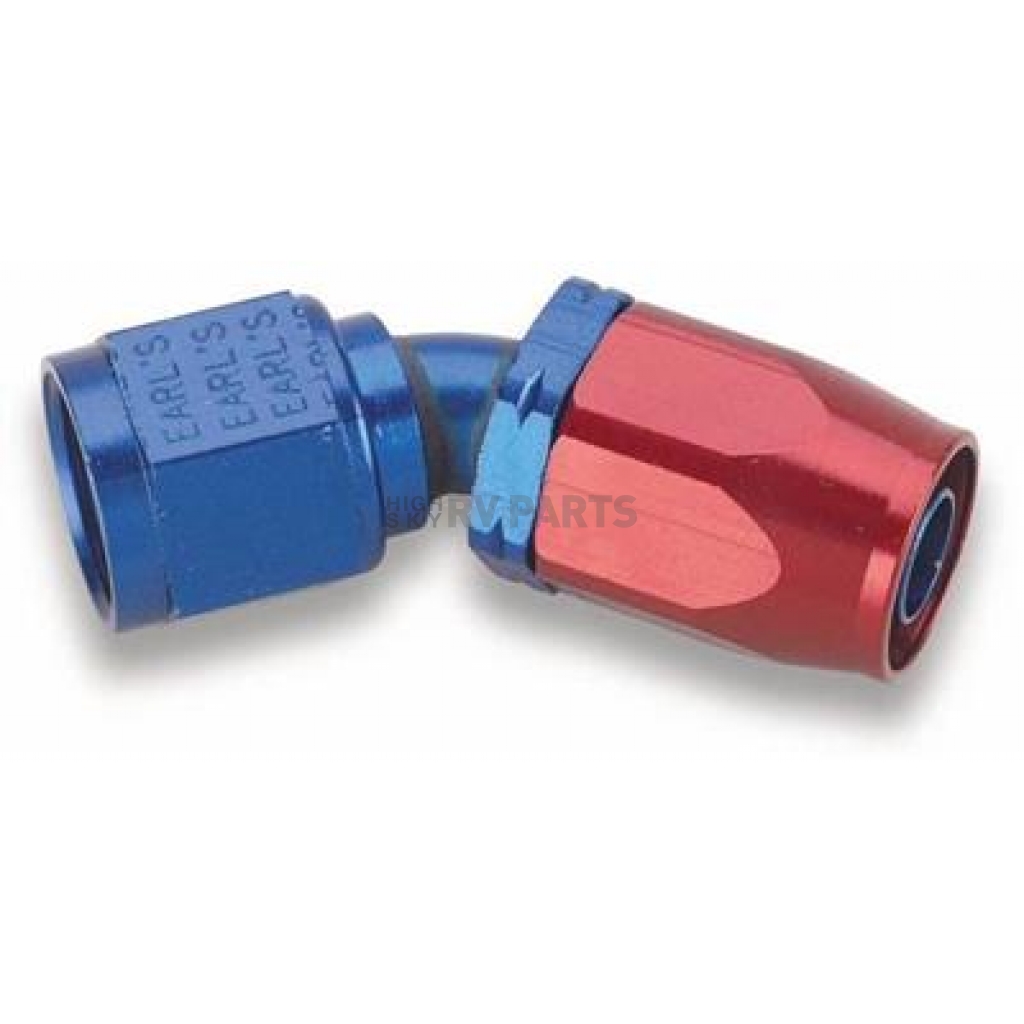

Earl's Plumbing Hose End Fitting 304608P

Brand: Earl's Plumbing
0 reviews
  • Have a product question? Ask us
  • Part Number: 304608P
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $52.49
Price: $49.99
You Save: $2.50
Color
Blue/ Red
End Size1
1/2 Inch (-8 AN)
End Size2
1/2 Inch (-8 AN)
End Type1
Crimp-On
End Type2
Female Threads
Finish
Anodized
Fitting Angle
45 Degree
Fitting Style
Elbow
Includes O-Ring
No
Material
Aluminum
Quantity
Single
Share this page

Earl's Plumbing Hose End Fitting

Hose End Fitting; Auto-Fit ™; -8 AN Hose; -8 AN Female Outlet; 45 Degree; Aluminum; Single; Clamshell Pack

MPN: 304608P

Earl’s Auto-Fit™ design provides the reliability and appearance of Swivel Seal™ but are easier to assemble and less expensive. The Auto-Fit™ nipple is barbed rather than threaded. In assembly the nipple is pushed into rather than threaded into the hose. The hose is compressed between the nipple and the socket, sealing at the barbs. Hose retention is positive and there is no spiral path for possible leaks. Auto-Fit™ hose ends are available in aluminum and stainless steel. The lightweight aluminum hose ends are suitable for most applications. The stainless units offer maximum corrosion and temperature resistance increased physical strength and are recommended for marine, chemical or high heat use and for exotic fuels.
End Type1: Crimp-On
End Size1: 1/2 Inch (-8 AN)
End Type2: Female Threads
End Size2: 1/2 Inch (-8 AN)
Fitting Style: Elbow
Fitting Angle: 45 Degree
Finish: Anodized
Color: Blue/ Red
Material: Aluminum
Includes O-Ring: No
Quantity: Single

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Positive Hose Retention
  • No Spiral Leak Path
  • Barbed Nipple
  • Easy To Assemble
  • Lightweight Aluminum
  • Provides The Reliability And Appearance Of Swivel-Seal™ But Are Easier To Assemble And Less Expensive
  • Limited 90 Day Warranty
Specifications of Earl's Plumbing Hose End Fitting 304608P
Color Blue/ Red
End Size1 1/2 Inch (-8 AN)
End Size2 1/2 Inch (-8 AN)
End Type1 Crimp-On
End Type2 Female Threads
Finish Anodized
Fitting Angle 45 Degree
Fitting Style Elbow
Includes O-Ring No
Material Aluminum
Quantity Single
