Earl's Plumbing Braided Hose - 661004

Brand: Earl's Plumbing
0 reviews
  • Have a product question? Ask us
  • Part Number: 661004
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $366.44
Price: $348.99
You Save: $17.45
Braid Color
Silver
Braid Material
Stainless Steel
Compatibility
Automatic Transmission Fluid/ Bio-Fuels/ Coolant/ Diesel/ E85/ Methanol/ Alcohol/ Oil/ Gas
Hose Material
Polytetrafluoroethylene (PTFE)
Length
10 Feet
Pressure Rating (PSI)
1320 Pounds Per Square Inch
Size
-4 AN (1/4 Inch)
Share this page

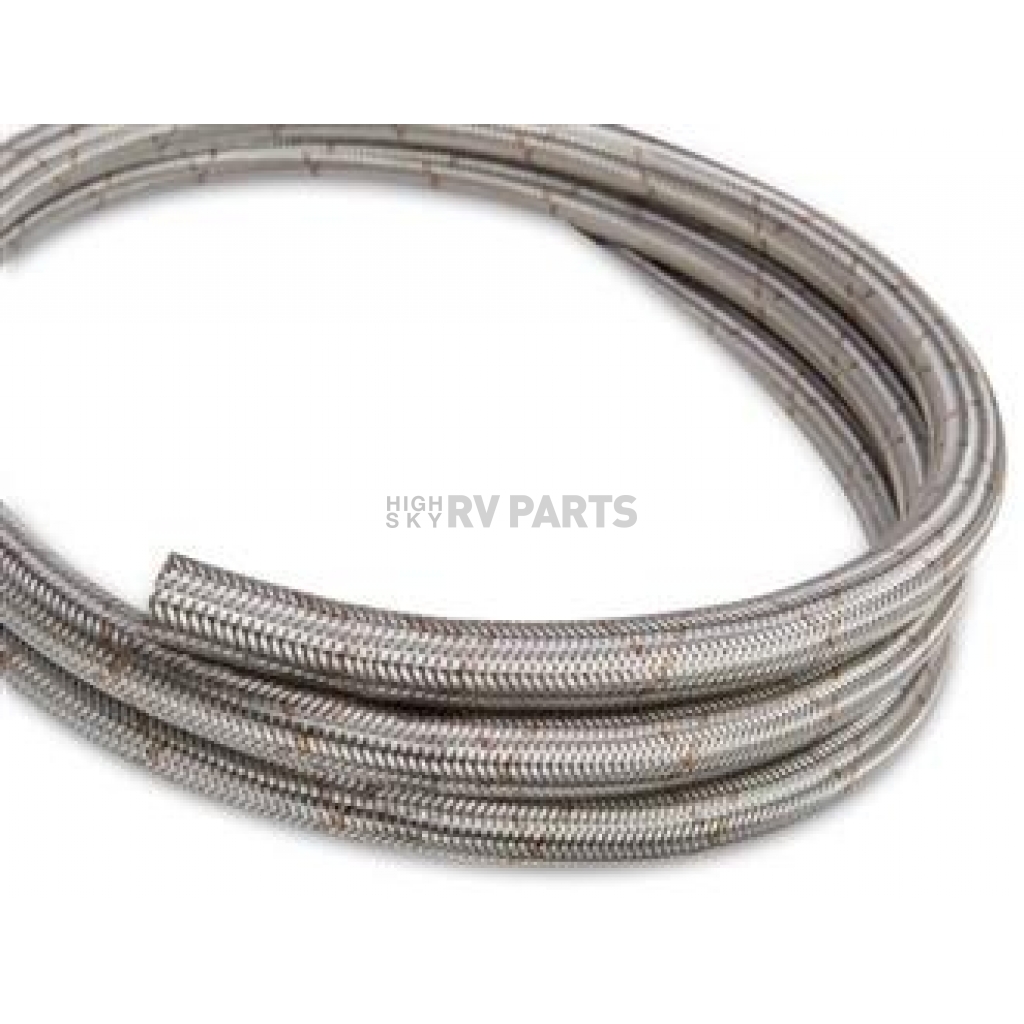

Earl's Plumbing Braided Hose

Braided Hose; Ultra Flex; 4AN; 10 Foot Length; 1320 Max PSI; Stainless Steel Over PTFE Tubing

MPN: 661004

Inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40 Percent lighter and has an average of 14 Percent larger ID than our premium stainless braided rubber hose. Being PTFE resin it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating – 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's Universal crimper and dies are all you need for all of your high end line assemblies.
Compatibility: Automatic Transmission Fluid/ Bio-Fuels/ Coolant/ Diesel/ E85/ Methanol/ Alcohol/ Oil/ Gas
Size: -4 AN (1/4 Inch)
Length: 10 Feet
Pressure Rating (PSI): 1320 Pounds Per Square Inch
Braid Color: Silver
Braid Material: Stainless Steel
Hose Material: Polytetrafluoroethylene (PTFE)

Features

  • Covered In Aircraft Quality 304 Grade Stainless Steel Wire
  • High-Temperature Smooth Bore PTFE Tubing
  • Convoluted Outer Wall Of Inner Tube For Incredible Flexibility
  • Remains Flexible At Temperatures Between -94 Degree Fahrenheit And +510 Degree Fahrenheit
  • Clean And Fast Flowing
  • Limited 90 Day Warranty
Specifications of Earl's Plumbing Braided Hose - 661004
Braid Color Silver
Braid Material Stainless Steel
Compatibility Automatic Transmission Fluid/ Bio-Fuels/ Coolant/ Diesel/ E85/ Methanol/ Alcohol/ Oil/ Gas
Hose Material Polytetrafluoroethylene (PTFE)
Length 10 Feet
Pressure Rating (PSI) 1320 Pounds Per Square Inch
Size -4 AN (1/4 Inch)
