Eagle Specialty Connecting Rod Set - CRS5984K3D
Length (IN)
5.984 Inch
Material
Forged Steel
Number In Set
4
Pin Bore (IN)
0.865 Inch
Recommended Use
Honda/ Acura K24 Engines
Rod Journal Size (IN)
1.889 Inch
Type
H-Beam
Weight (g)
550 Grams
Share this page

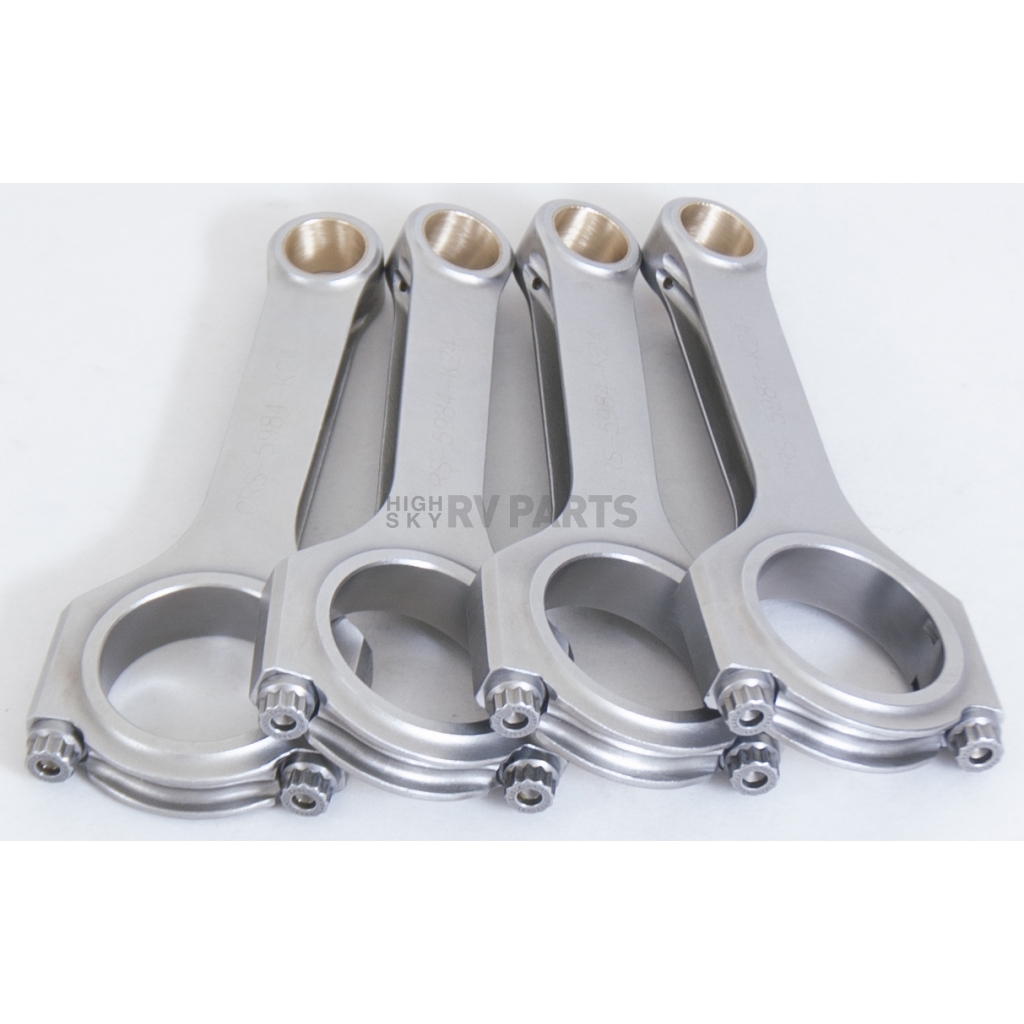

Eagle Specialty Connecting Rod Set
Connecting Rod Set; For Use With Honda/ Acura K24 Engines; H-Beam; Forged Steel; 5.984 Inch Length; 1.889 Inch Rod Journal; Set Of 4 With ARP 2000 Rod Bolts
MPN: CRS5984K3D
All "ESP" automotive rods are manufactured from a two piece forging. The forging process forces the grain into the shape of a connecting rod, resulting in a superior fatigue life. The rod cap is forged separately so that the grain runs perpendicular to the load forces, which strengthens the rod. Many aftermarket rods are manufactured from 4340 steel. 4340 specs allow a range of different materials to achieve the desired results. Although it is a more expensive process, all "ESP" 3-D rods also include higher content of nickel and chrome, which increases the strength and fatigue life without making the rod brittle. Extensive testing has proven our two piece forging to be superior to any one piece forging on the market! "ESP" H-beam connecting rods provide the strength and durability required in the most demanding engines at a sportsman rod price. Eagle was the first connecting rod to use the state of the art Sunnen Krossgrinding™ system to hold extremely tight tolerances. 7/16 Inch ARP bolts come standard unless otherwise noted. Although for extreme Horsepower applications.
Recommended Use: Honda/ Acura K24 Engines
Type: H-Beam
Material: Forged Steel
Length (IN): 5.984 Inch
Rod Journal Size (IN): 1.889 Inch
Pin Bore (IN): 0.865 Inch
Weight (g): 550 Grams
Number In Set: 4
Features
- ESP Connecting Rods Are Forged From 4340 Steel
- Precision Alignment Sleeves Locate Rod Cap To Help Maintain Big End Bore Size And Eliminate Cap Walk
- All Connecting Rods Are Multi Stage Heat Treated, Magna Fluxed And Sonic Tested
- Limited 1 Year Warranty
| Specifications of Eagle Specialty Connecting Rod Set - CRS5984K3D | |
| Length (IN) | 5.984 Inch |
| Material | Forged Steel |
| Number In Set | 4 |
| Pin Bore (IN) | 0.865 Inch |
| Recommended Use | Honda/ Acura K24 Engines |
| Rod Journal Size (IN) | 1.889 Inch |
| Type | H-Beam |
| Weight (g) | 550 Grams |
2004 Acura TSX
2005 Acura TSX
2006 Acura TSX
2007 Acura TSX
2008 Acura TSX
2005 Acura TSX
2006 Acura TSX
2007 Acura TSX
2008 Acura TSX
2003 Honda Accord
2004 Honda Accord
2004 Honda Accord
2006 Honda Accord
2007 Honda Accord
2007 Honda Accord
2002 Honda CR-V
2003 Honda CR-V
2004 Honda CR-V
2005 Honda CR-V
2006 Honda CR-V
2003 Honda CR-V
2004 Honda CR-V
2005 Honda CR-V
2006 Honda CR-V
2003 Honda Element
2004 Honda Element
2005 Honda Element
2006 Honda Element
2007 Honda Element
2008 Honda Element
2009 Honda Element
2010 Honda Element
2011 Honda Element
2004 Honda Element
2005 Honda Element
2006 Honda Element
2007 Honda Element
2008 Honda Element
2009 Honda Element
2010 Honda Element
2011 Honda Element
