Eagle Specialty Connecting Rod Set - CRS5945D3D
Length (IN)
5.945 Inch
Material
Forged Steel
Number In Set
4
Pin Bore (IN)
0.866 Inch
Recommended Use
Chrysler 2.4 SRT-4 Engines
Rod Journal Size (IN)
1.968 Inch
Type
H-Beam
Weight (g)
575 Grams
Share this page

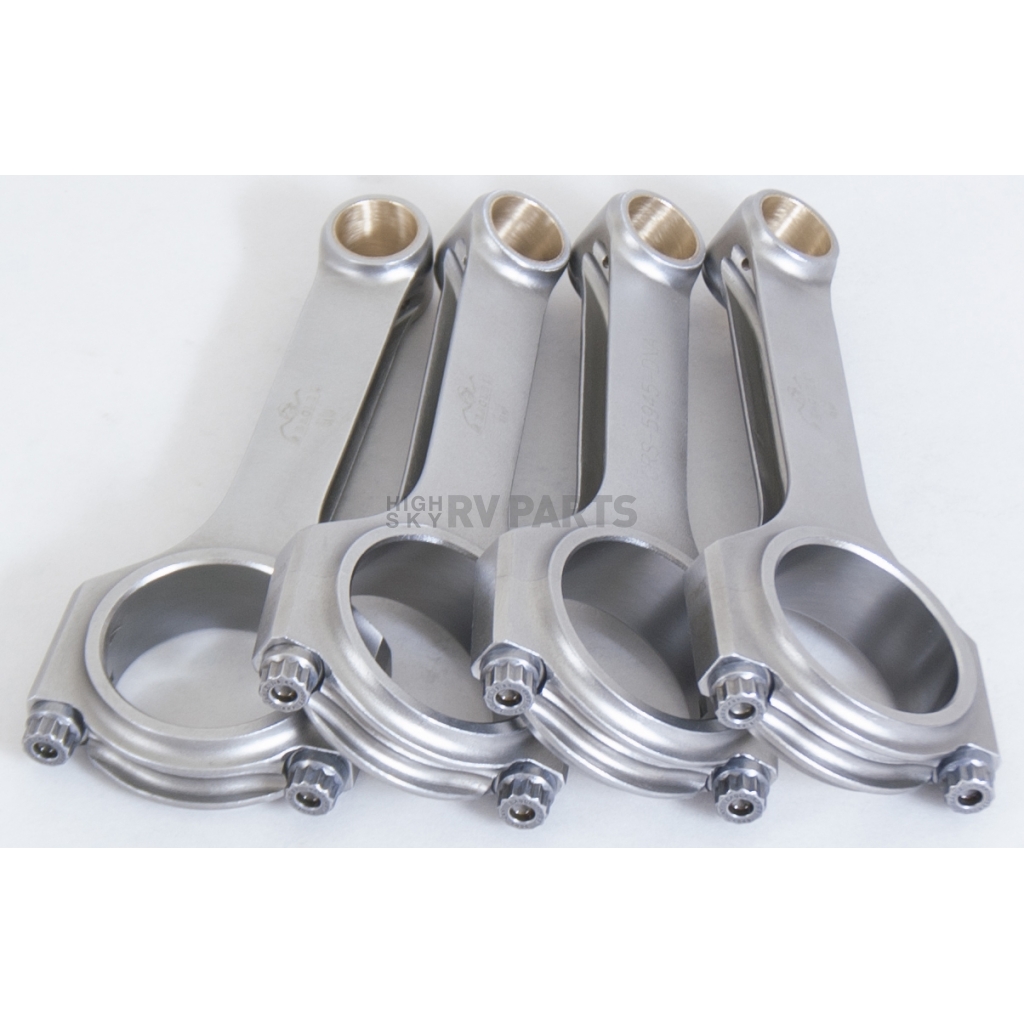

Eagle Specialty Connecting Rod Set
Connecting Rod Set; For Use With Chrysler 2.4 SRT-4 Engines; H-Beam; Forged Steel; 5.945 Inch Length; 1.968 Inch Rod Journal; Set Of 4 With ARP 2000 Rod Bolts
MPN: CRS5945D3D
All "ESP" automotive rods are manufactured from a two piece forging. The forging process forces the grain into the shape of a connecting rod, resulting in a superior fatigue life. The rod cap is forged separately so that the grain runs perpendicular to the load forces, which strengthens the rod. Many aftermarket rods are manufactured from 4340 steel. 4340 specs allow a range of different materials to achieve the desired results. Although it is a more expensive process, all "ESP" 3-D rods also include higher content of nickel and chrome, which increases the strength and fatigue life without making the rod brittle. Extensive testing has proven our two piece forging to be superior to any one piece forging on the market! "ESP" H-beam connecting rods provide the strength and durability required in the most demanding engines at a sportsman rod price. Eagle was the first connecting rod to use the state of the art Sunnen Krossgrinding™ system to hold extremely tight tolerances. 7/16 Inch ARP bolts come standard unless otherwise noted. Although for extreme Horsepower applications.
Recommended Use: Chrysler 2.4 SRT-4 Engines
Type: H-Beam
Material: Forged Steel
Length (IN): 5.945 Inch
Rod Journal Size (IN): 1.968 Inch
Pin Bore (IN): 0.866 Inch
Weight (g): 575 Grams
Number In Set: 4
Features
- ESP Connecting Rods Are Forged From 4340 Steel
- Precision Alignment Sleeves Locate Rod Cap To Help Maintain Big End Bore Size And Eliminate Cap Walk
- All Connecting Rods Are Multi Stage Heat Treated, Magna Fluxed And Sonic Tested
- Limited 1 Year Warranty
Specifications of Eagle Specialty Connecting Rod Set - CRS5945D3D | |
Length (IN) | 5.945 Inch |
Material | Forged Steel |
Number In Set | 4 |
Pin Bore (IN) | 0.866 Inch |
Recommended Use | Chrysler 2.4 SRT-4 Engines |
Rod Journal Size (IN) | 1.968 Inch |
Type | H-Beam |
Weight (g) | 575 Grams |
2003 Dodge Neon
2004 Dodge Neon
2005 Dodge Neon
2004 Dodge Neon
2005 Dodge Neon
