Eagle Specialty Connecting Rod Set - CRS5700B3D
Length (IN)
5.7 Inch
Material
Forged Steel
Number In Set
8
Pin Bore (IN)
0.927 Inch
Recommended Use
Chevy Small Block Engines
Rod Journal Size (IN)
2.1 Inch
Type
H-Beam
Weight (g)
630 Grams
Share this page

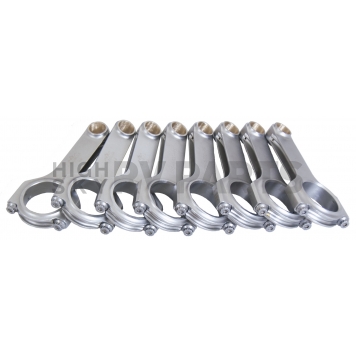

Eagle Specialty Connecting Rod Set
Connecting Rod Set; For Use With Small Block Chevy Engines; H-Beam/ Bushed Pin; Forged Steel; 5.700 Inch Length; 2.100 Inch Rod Journal; Set Of 8
MPN: CRS5700B3D
All "ESP" automotive rods are manufactured from a two piece forging. The forging process forces the grain into the shape of a connecting rod, resulting in a superior fatigue life. The rod cap is forged separately so that the grain runs perpendicular to the load forces, which strengthens the rod. Many aftermarket rods are manufactured from 4340 steel. 4340 specs allow a range of different materials to achieve the desired results. Although it is a more expensive process, all "ESP" 3-D rods also include higher content of nickel and chrome, which increases the strength and fatigue life without making the rod brittle. Extensive testing has proven our two piece forging to be superior to any one piece forging on the market! "ESP" H-beam connecting rods provide the strength and durability required in the most demanding engines at a sportsman rod price. Eagle was the first connecting rod to use the state of the art Sunnen Krossgrinding™ system to hold extremely tight tolerances. 7/16 Inch ARP bolts come standard unless otherwise noted. Although for extreme Horsepower applications.
Recommended Use: Chevy Small Block Engines
Type: H-Beam
Material: Forged Steel
Length (IN): 5.7 Inch
Rod Journal Size (IN): 2.1 Inch
Pin Bore (IN): 0.927 Inch
Weight (g): 630 Grams
Number In Set: 8
Features
- ESP Connecting Rods Are Forged From 4340 Steel
- Precision Alignment Sleeves Locate Rod Cap To Help Maintain Big End Bore Size And Eliminate Cap Walk
- All Connecting Rods Are Multi Stage Heat Treated, Magna Fluxed And Sonic Tested
- Limited 1 Year Warranty
Specifications of Eagle Specialty Connecting Rod Set - CRS5700B3D | |
Length (IN) | 5.7 Inch |
Material | Forged Steel |
Number In Set | 8 |
Pin Bore (IN) | 0.927 Inch |
Recommended Use | Chevy Small Block Engines |
Rod Journal Size (IN) | 2.1 Inch |
Type | H-Beam |
Weight (g) | 630 Grams |
1900-1900 Chevrolet Small Block 1955-1986
1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
1900 Chevrolet Small Block 383
