Design Engineering (DEI) Thermal Acoustic Insulation 05050316
Installation Type
Self-Adhesive
Length (IN)
10 Inch
Material
Aluminum
Thickness (IN)
3/16 Inch
Width (IN)
10 Inch
Share this page
Design Engineering (DEI) Thermal Acoustic Insulation

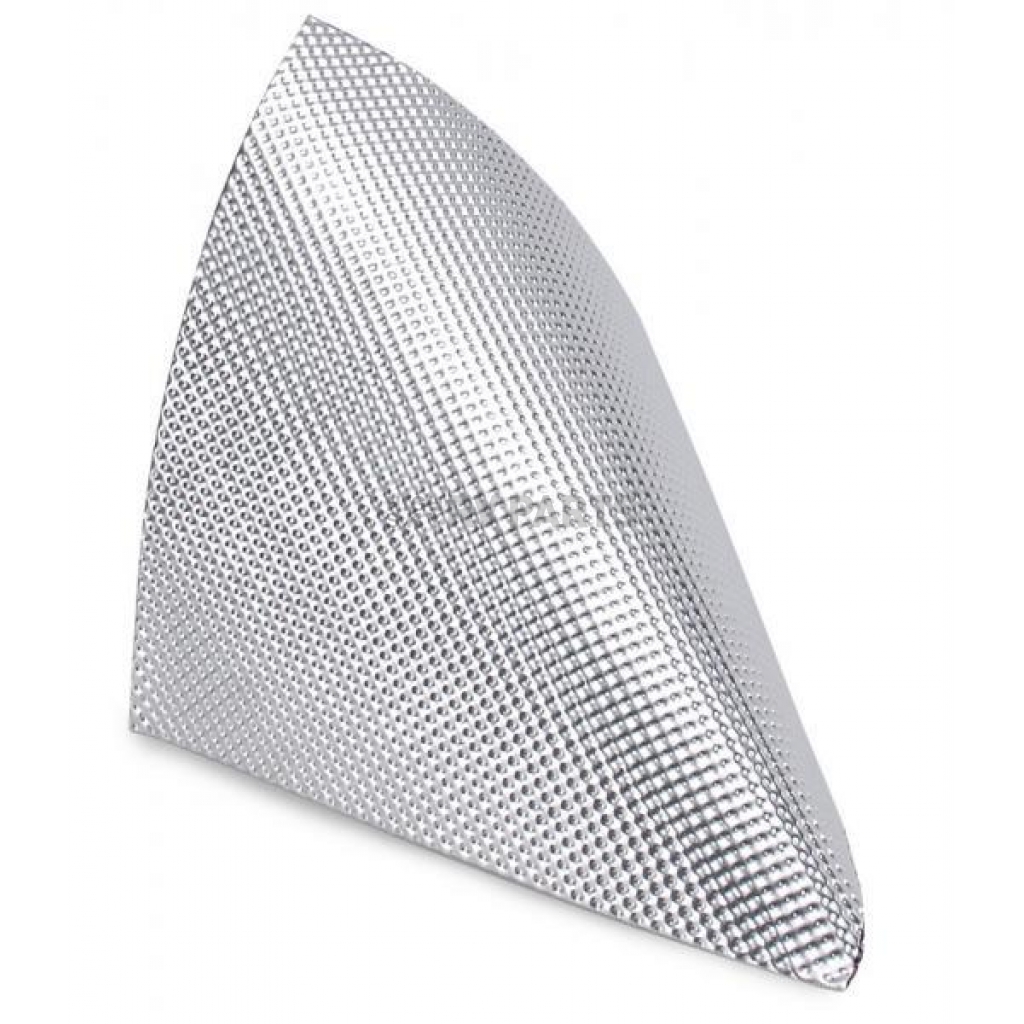

Thermal Acoustic Insulation; 3/16 Inch Thick; Aluminum Face Bonded To Composite Fiberglass Core; 10 Inch Length X 10 Inch Width; Self-Adhesive
MPN: 05050316

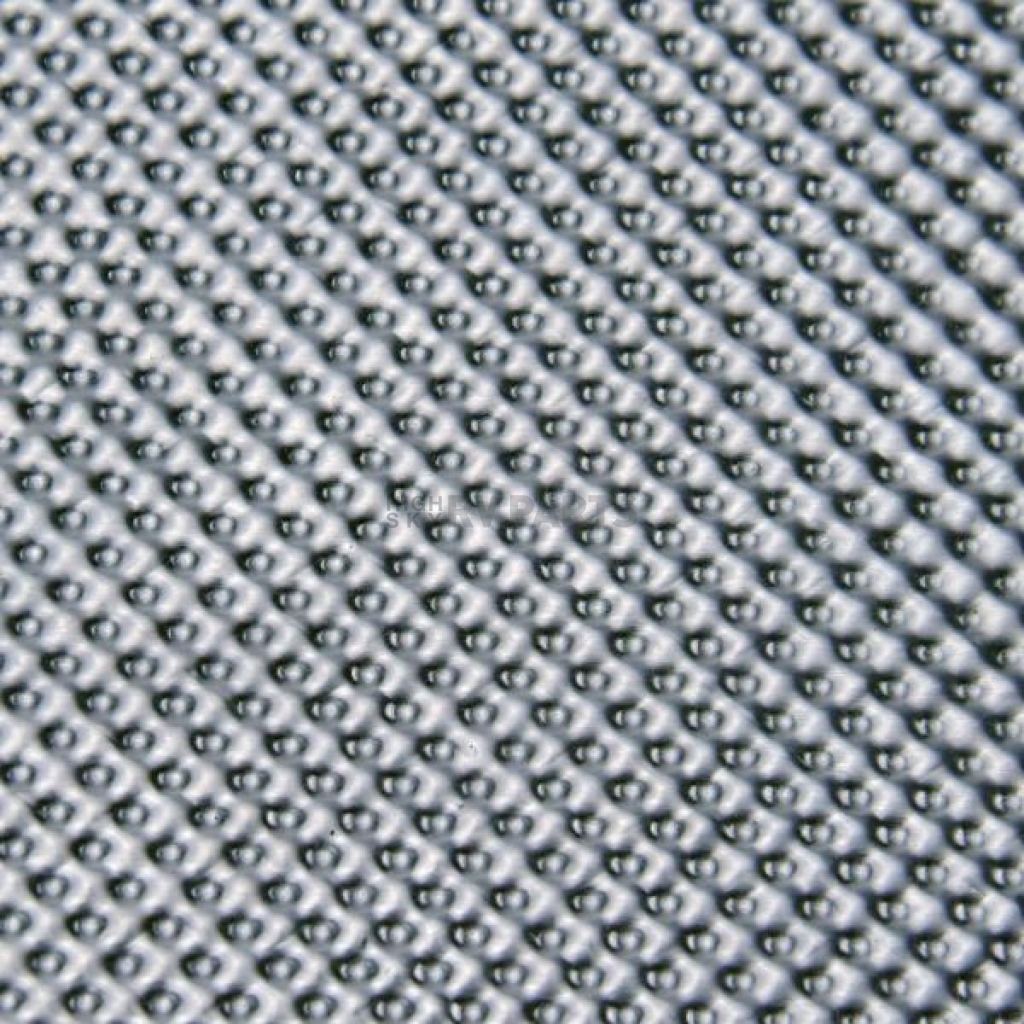

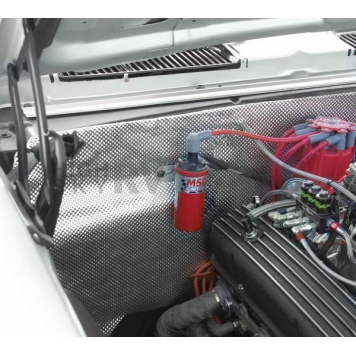

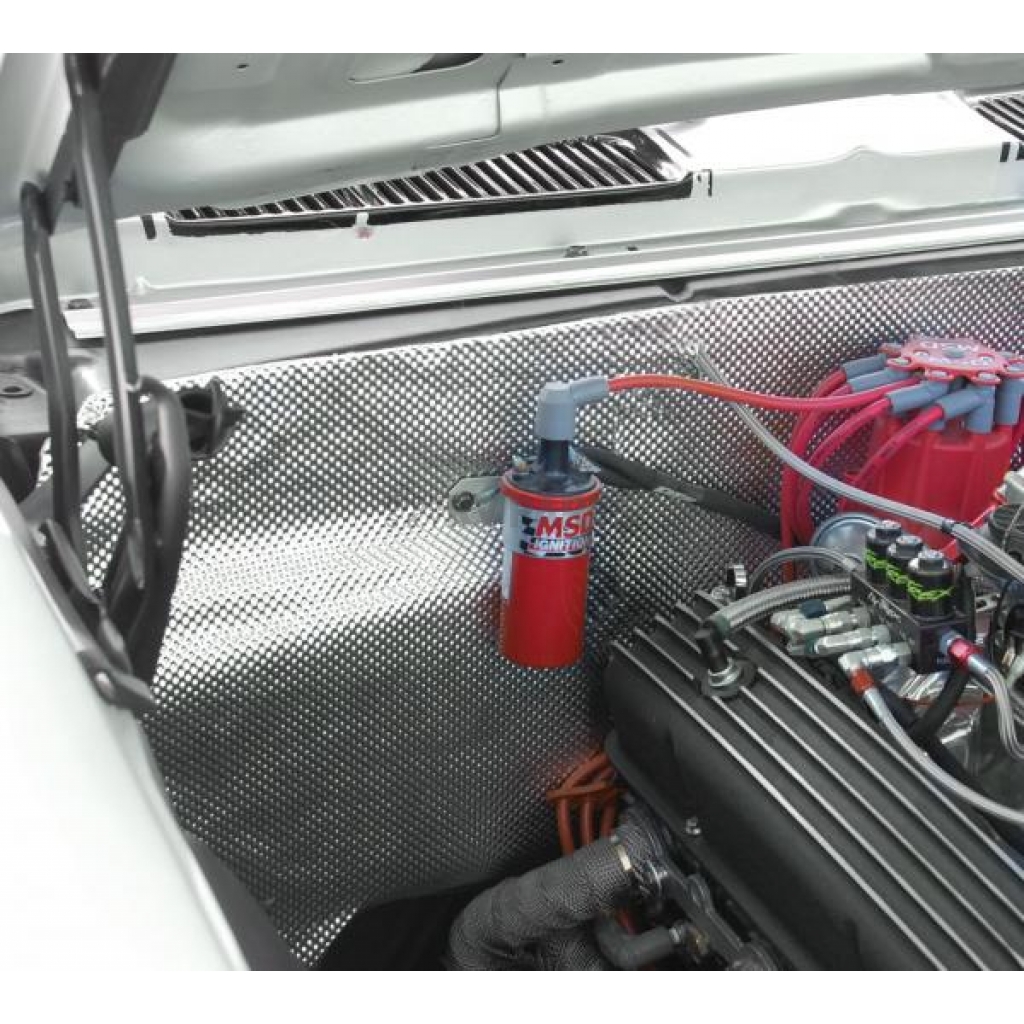

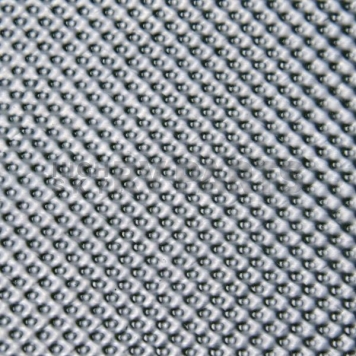

Designed to provide the best possible heat protection in areas where high Temperatures are always present and problematic, Floor And Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor and Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 Millimeter aluminum face bonded to 1/8 Inch composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor and Tunnel Shield II withstands up to 1750 Degree Fahrenheit of direct continuous heat. The adhesive side holds past 450 Degree Fahrenheit. Its improved multifaceted modern aluminum surface offers improved reflectivity and rigidity and allows for ease of installation. At only 3/16 Inch thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor and Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound.
Material: Aluminum
Length (IN): 10 Inch
Width (IN): 10 Inch
Thickness (IN): 3/16 Inch
Installation Type: Self-Adhesive
Features
- Blocks Radiant Heat From Entering Driver Compartment
- Withstands Direct High Heat Temperatures Up To 1750 Degree Fahrenheit
- Serves As A Barrier To Unwanted Road, Tire, And Engine Noise
- Constructed From 10 Millimeter Aluminum Bonded To Finely Woven Layer Of High Temperature Resistant Glass Fiber
- Excellent Heat And Sound Barrier
- Wind And Water Will Not Affect Adhesive
- Adheres To Almost Any Surface Or Material Including To Fiberglass
- Easy To Form To Shapes And Contours
- Just Trim, Peel And Stick
- Limited 90 Day Warranty
| Specifications of Design Engineering (DEI) Thermal Acoustic Insulation 05050316 | |
| Installation Type | Self-Adhesive |
| Length (IN) | 10 Inch |
| Material | Aluminum |
| Thickness (IN) | 3/16 Inch |
| Width (IN) | 10 Inch |
