Design Engineering (DEI) Heat Shield Material 10401
Diameter
Not Applicable
Length
36 Inch
Material
Fiberglass
Maximum Temperature (Deg F)
2000 Degree Fahrenheit Radiant/ 1200 Degree Fahrenheit Direct
Thickness
0.060 Inch
Width
40 Inch
Share this page

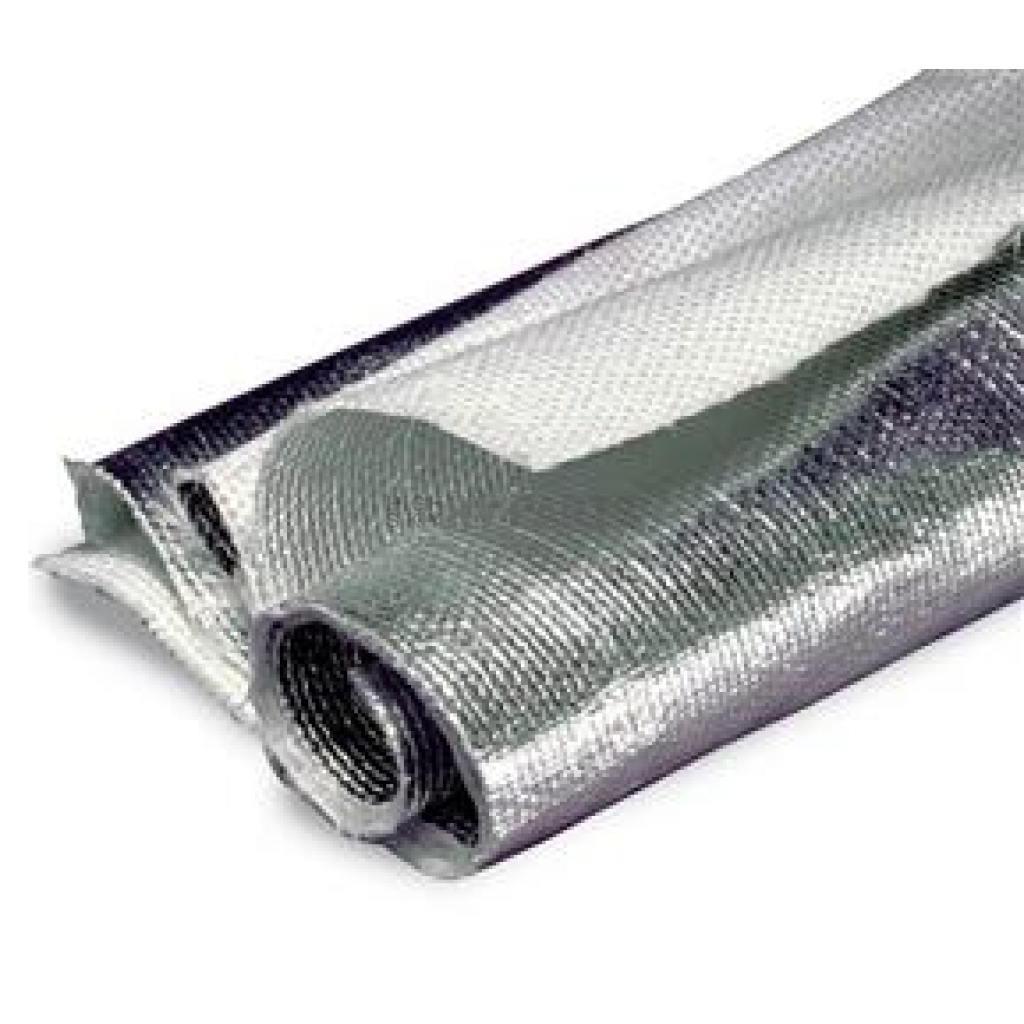

Design Engineering (DEI) Heat Shield Material
Heat Shield Material; Heat Screen ™; 36 Inch Length X 40 Inch Width X 0.060 Inch Thick; Reflects Up To 2000 Degree Fahrenheit Radiant/ 1200 Degree Fahrenheit Direct/ Continuous Heat; Fiberglass
MPN: 10401
Heat Screen offers an excellent way to reflect radiant heat away from a vehicle‘s interior and because of its flexibility, can be trimmed to size to protect against excessive heat sources. Constructed of a high temperature resistant fiberglass material, and with a thickness of only 0.060 Inch, Heat Screen features a thermal barrier on one side made of a superior reflective aluminized Mylar surface capable of withstanding direct heat up to 1200 Degree Fahrenheit. Heat Screen can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to the fuel tank, and has many other applications including floorboards, body panels and under carpeting. High temperature adhesive such as DEI’s High Temperature spray adhesive or heat resistant sealant or adhesive can be applied to secure heat screen or screws or rivets can be used. DEI’s Cool Tape is ideal for sealing and covering seams.
Diameter: Not Applicable
Length: 36 Inch
Width: 40 Inch
Thickness: 0.060 Inch
Maximum Temperature (Deg F): 2000 Degree Fahrenheit Radiant/ 1200 Degree Fahrenheit Direct
Material: Fiberglass
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Aluminized Surface Reflects Up To 2000 Degree Fahrenheit Radiant/1200 Degree Fahrenheit Direct/Continuous Heat
- Constructed Of A High Temperature Resistant Fiberglass Material
- Multitude Of Uses Around Race Cars, Boats, RV’s And Trucks
- Great Protection For Painted Surfaces
- Used In Aviation And Aerospace Industry
- No Supplier Warranty
Specifications of Design Engineering (DEI) Heat Shield Material 10401 | |
Diameter | Not Applicable |
Length | 36 Inch |
Material | Fiberglass |
Maximum Temperature (Deg F) | 2000 Degree Fahrenheit Radiant/ 1200 Degree Fahrenheit Direct |
Thickness | 0.060 Inch |
Width | 40 Inch |
