Derale Oil Thermostat - 25792

Authorized Dealer
Brand: Derale Derale
0 reviews
  • Have a product question? Ask us
  • Part Number: 25792
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $91.34
Price: $86.99
You Save: $4.35
Compatibility
Engine Oil/ Transmission Fluid
Fitting Type
NPT Fitting
Flow Rating
Upto 20 Gallons Per Minute
Includes Fittings
Yes
Includes Gaskets
No
Includes Mounting Bracket
Yes
Material
Aluminum
Opening Temperature Rating (F)
180 Degree Fahrenheit
Port Inlet Size (IN)
1/2 Inch NPT
Port Outlet Size (IN)
1/2 Inch NPT
Pressure Rating
200 Pounds Per Square Inch
Share this page

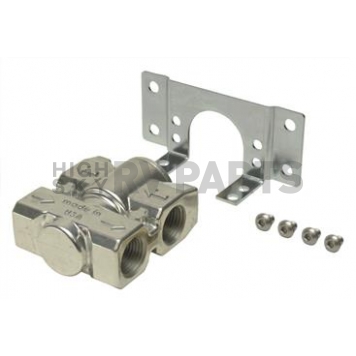

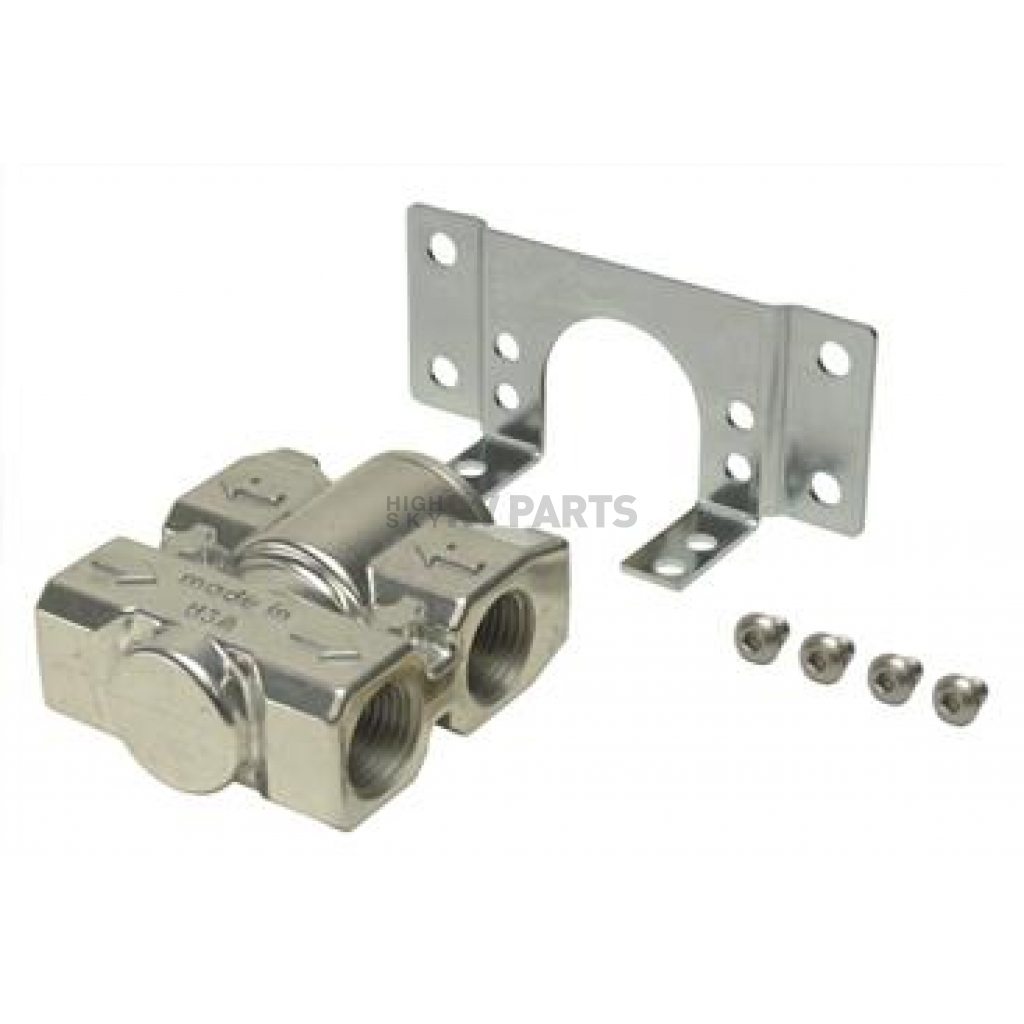

Derale Oil Thermostat

Oil Thermostat; For Engine Oil/ Transmission Fluid; 180 Degrees Fahrenheit Turn On Temperature; NPT Fitting; 1/2 Inch NPT Inlet/ 1/2 Inch NPT Outlet; Can Be Reversed To Switch Flow Direction; Flows Up To 20 Gallons Per Minute; 200 PSI; Aluminum; Includes Bracket Kit

MPN: 25792

This Billet Style Cast Aluminum Fluid Control Thermostat with 1/2 Inch NPT ports allows the oil to bypass the cooler until it reaches 180 Degree Fahrenheit at which point the internal thermostatic valve will close and force 100 Percent of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180 Degree to change flow direction and includes a universal mounting bracket for 4 different mounting positions.
Compatibility: Engine Oil/ Transmission Fluid
Opening Temperature Rating (F): 180 Degree Fahrenheit
Fitting Type: NPT Fitting
Port Inlet Size (IN): 1/2 Inch NPT
Port Outlet Size (IN): 1/2 Inch NPT
Flow Rating: Upto 20 Gallons Per Minute
Pressure Rating: 200 Pounds Per Square Inch
Reverse Flow: Yes
Material: Aluminum
Includes Gaskets: No
Includes Fittings: Yes
Includes Mounting Bracket: Yes

Features

  • Bypasses Cooler At 180 Degree Fahrenheit
  • Provides Quicker Warm Up Temperatures
  • Perfect For Cold Weather Climates
  • Can Be Rotated 180 Degree To Switch Flow Direction
  • Flows Up To 20 Gallons Per Minute. Rated Up To 200 PSI
  • Ultra Bright Finish
  • New Billet Style Design
  • Limited 1 Year Warranty
Specifications of Derale Oil Thermostat - 25792
Compatibility Engine Oil/ Transmission Fluid
Fitting Type NPT Fitting
Flow Rating Upto 20 Gallons Per Minute
Includes Fittings Yes
Includes Gaskets No
Includes Mounting Bracket Yes
Material Aluminum
Opening Temperature Rating (F) 180 Degree Fahrenheit
Port Inlet Size (IN) 1/2 Inch NPT
Port Outlet Size (IN) 1/2 Inch NPT
Pressure Rating 200 Pounds Per Square Inch
Reverse Flow Yes
