Derale Oil Thermostat - 15719
Compatibility
Engine Oil/ Transmission Fluid
Fitting Type
NPT To Hose Barb Fitting
Flow Rating
Upto 20 Gallons Per Minute
Includes Fittings
Yes
Includes Gaskets
No
Includes Mounting Bracket
No
Material
Aluminum
Opening Temperature Rating (F)
180 Degree Fahrenheit
Port Inlet Size (IN)
1/2 Inch NPT
Port Outlet Size (IN)
1/2 Inch (-8 AN)
Pressure Rating
200 Pounds Per Square Inch
Share this page

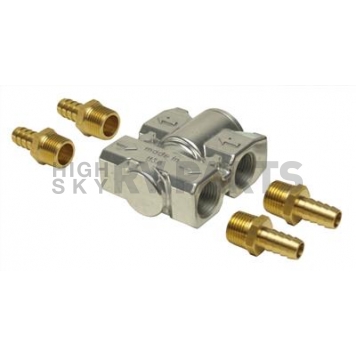

Derale Oil Thermostat
Oil Thermostat; For Engine Oil/ Transmission Fluid; 180 Degrees Fahrenheit Turn On Temperature; NPT Fitting/ Hose Barb Connection; 1/2 Inch NPT Inlet/ 1/2 Inch NPT Outlet; Can Be Reversed To Switch Flow Direction; Flows Upto 20 Gallons Per Minute; 200 PSI; Aluminum; Includes Four 1/2 Inch NPT X 1/2 Inch Hose Barb
MPN: 15719
This Billet Style Cast Aluminum Fluid Control Thermostat with 1/2 Inch NPT ports allows the oil to bypass the cooler until it reaches 180 Degree Fahrenheit at which point the internal thermostatic valve will close and force 100 Percent of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180 Degree to change flow direction. Hardware kit with brass fittings and hose clamps included.
Compatibility: Engine Oil/ Transmission Fluid
Opening Temperature Rating (F): 180 Degree Fahrenheit
Fitting Type: NPT To Hose Barb Fitting
Port Inlet Size (IN): 1/2 Inch NPT
Port Outlet Size (IN): 1/2 Inch (-8 AN)
Flow Rating: Upto 20 Gallons Per Minute
Pressure Rating: 200 Pounds Per Square Inch
Reverse Flow: Yes
Material: Aluminum
Includes Gaskets: No
Includes Fittings: Yes
Includes Mounting Bracket: No
Features
- Bypasses Cooler At 180 Degree Fahrenheit
- Kit Includes Hose Barb Fittings And Hose Clamps
- Provides Quicker Warm Up Temperatures. Perfect For Cold Weather Climates
- Can Be Rotated 180 Degree To Switch Flow Direction
- Flows Up To 20 Gallons Per Minute. Rated Up To 200 PSI
- Ultra Bright Finish. New Billet Style Design
- 1/2 Inch NPT Inlet/Outlet Ports
- Limited 1 Year Warranty
| Specifications of Derale Oil Thermostat - 15719 | |
| Compatibility | Engine Oil/ Transmission Fluid |
| Fitting Type | NPT To Hose Barb Fitting |
| Flow Rating | Upto 20 Gallons Per Minute |
| Includes Fittings | Yes |
| Includes Gaskets | No |
| Includes Mounting Bracket | No |
| Material | Aluminum |
| Opening Temperature Rating (F) | 180 Degree Fahrenheit |
| Port Inlet Size (IN) | 1/2 Inch NPT |
| Port Outlet Size (IN) | 1/2 Inch (-8 AN) |
| Pressure Rating | 200 Pounds Per Square Inch |
| Reverse Flow | Yes |
