Derale Fluid Cooler 13615
Color
Black
Construction
Plate And Fin
Inlet Attachment
Female
Inlet Size
1/2 Inch
Material
Aluminum
Number Of Cooling Rows
17
Overall Depth (IN)
1-1/4 Inch
Overall Height (IN)
12-13/16 Inch
Overall Width (IN)
9-3/4 Inch
Recommended Use
Transmission Fluid
With Fan
No
Share this page
Derale Fluid Cooler

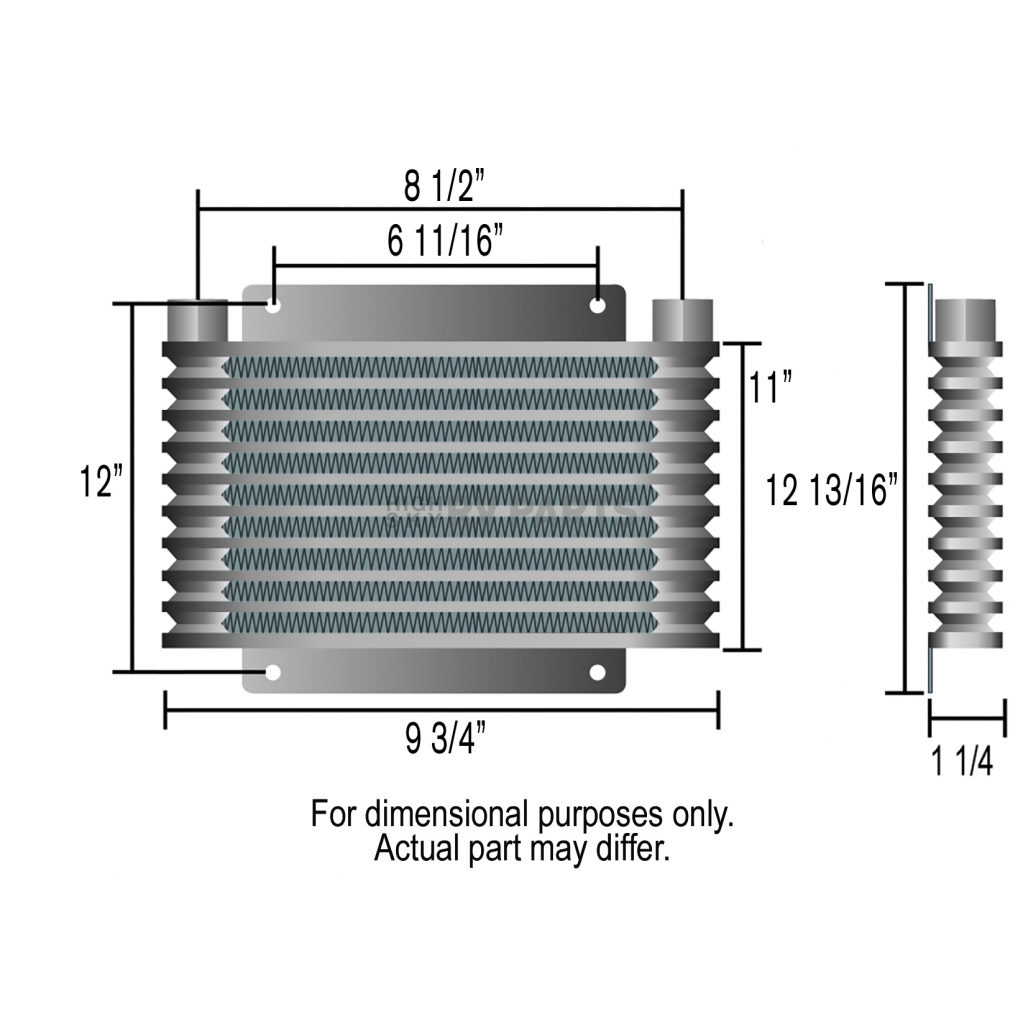

Fluid Cooler; Series 9000; For Transmission Fluid; 9-3/4 Inch Width X 12-13/16 Inch Height X 1-1/4 Inch Depth; NPT Fitting; 1/2 Inch NPT Inlet; With Hose/ Brass 3/8 Inch Barb Adapter/ Hardware
MPN: 13615
A step up from tube and fin type coolers, this plate and fin cooler features strong furnace brazed construction, 1-1/4 Inch wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat related transmission failures, and improve shifting performance. Built with 1/2 Inch NPT female cooler ports and includes 1/2 Inch NPT X 3/8 Inch hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16 Inch transmission cooler lines.
Recommended Use: Transmission Fluid
Construction: Plate And Fin
Overall Height (IN): 12-13/16 Inch
Overall Width (IN): 9-3/4 Inch
Overall Depth (IN): 1-1/4 Inch
Number Of Cooling Rows: 17
Inlet Attachment: Female
Inlet Size: 1/2 Inch
Color: Black
Material: Aluminum
With Fan: No
With Mounting Hardware: Yes
Features
- Prevents Heat Related Transmission Failures
- Dramatically Increases Transmission Life
- Improves Transmission Performance
- Sturdy Furnace Brazed Aluminum Construction
- 1-1/4 Inch Turbulators Maximize Cooling And Minimize Pressure Drop
- New 1/2 Inch NPT Female Cooler Fittings

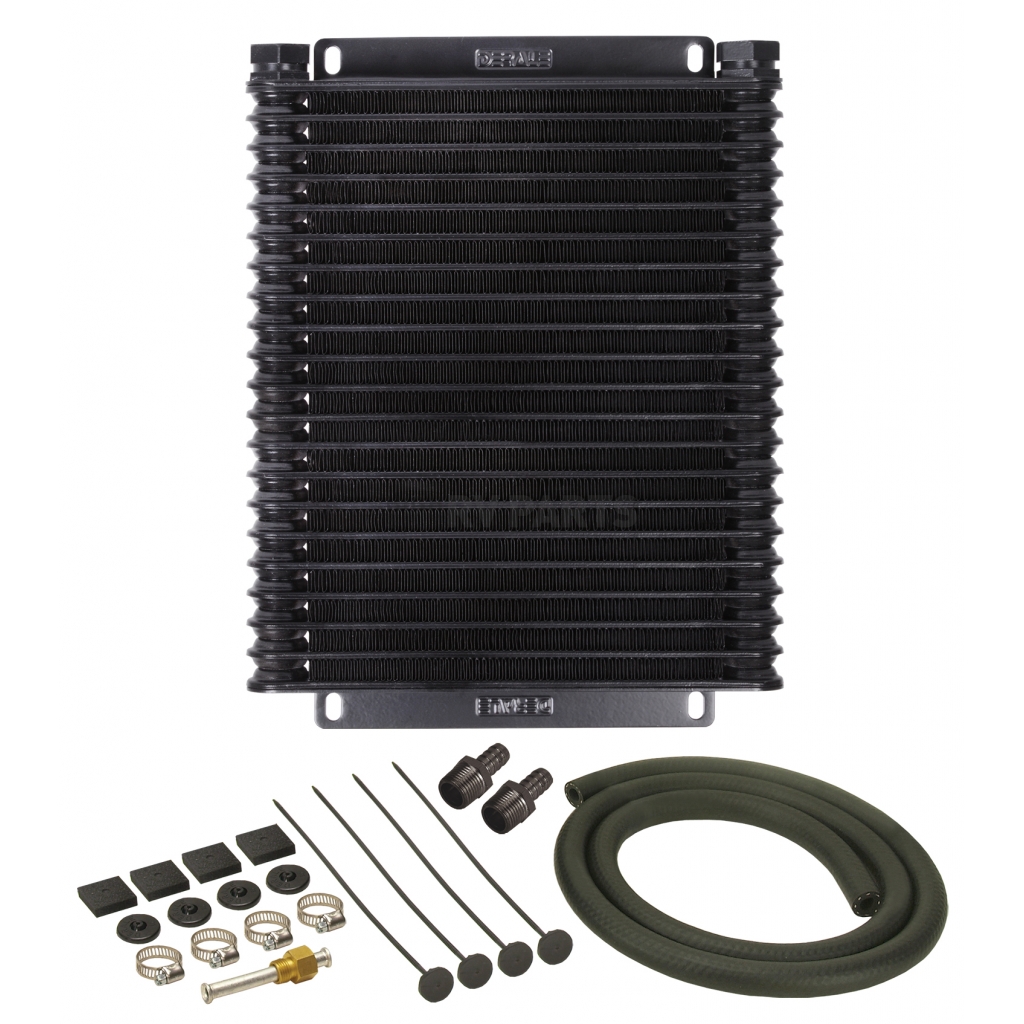

- Includes Brass Hose Barb Adapters, High Pressure/High Temperature Hose, Insta-Dapt Radiator Adapter And Mounting Hardware
- Limited 1 Year Warranty
| Specifications of Derale Fluid Cooler 13615 | |
| Color | Black |
| Construction | Plate And Fin |
| Inlet Attachment | Female |
| Inlet Size | 1/2 Inch |
| Material | Aluminum |
| Number Of Cooling Rows | 17 |
| Overall Depth (IN) | 1-1/4 Inch |
| Overall Height (IN) | 12-13/16 Inch |
| Overall Width (IN) | 9-3/4 Inch |
| Recommended Use | Transmission Fluid |
| With Fan | No |
| With Mounting Hardware | Yes |
