Derale Cooling Fan Speed Control 16796

Authorized Dealer
Brand: Derale Derale
0 reviews
  • Have a product question? Ask us
  • Part Number: 16796
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $327.59
Price: $311.99
You Save: $15.60
Ampere Rating (A)
65 Amp
Fan Speed
0 To 100 Percent
Temperature Range
160 To 210 Degree Fahrenheit
With Relay
No
With Wiring Harness
Yes
Share this page

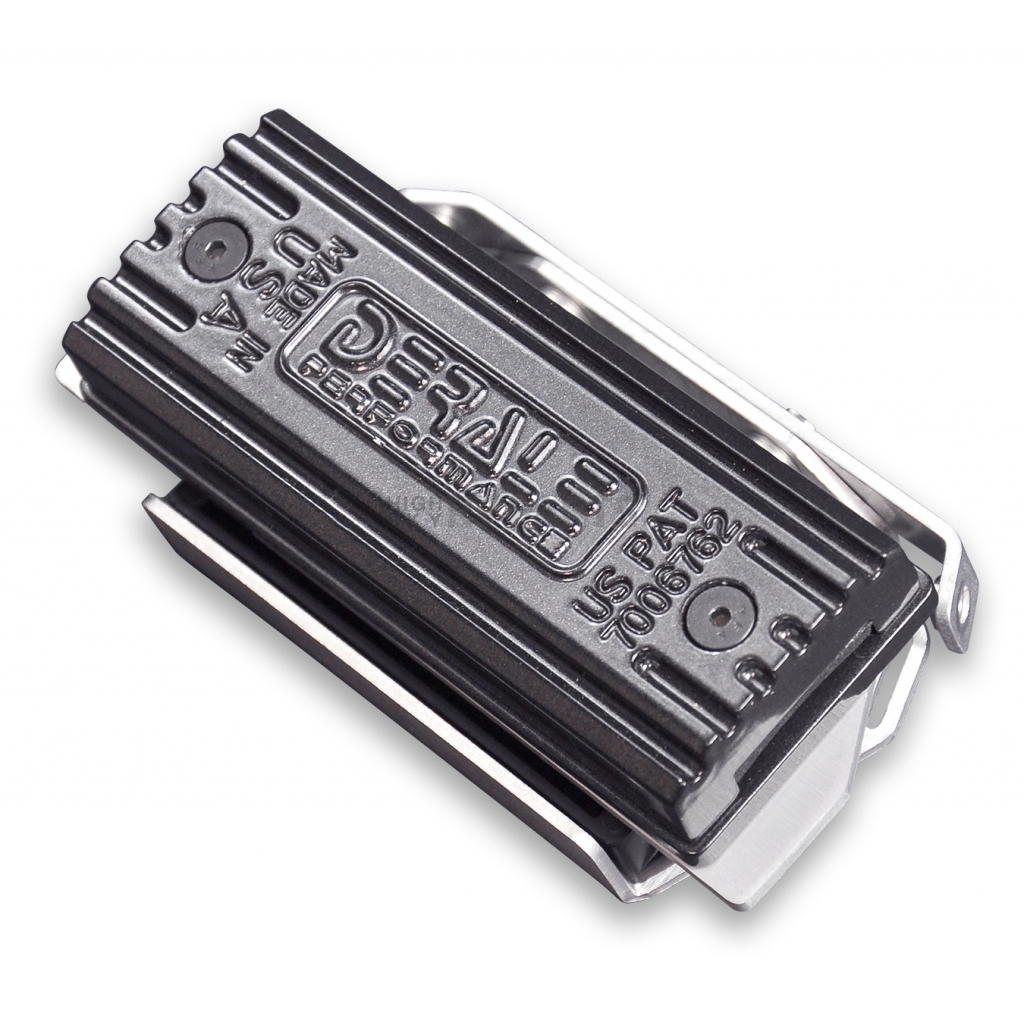

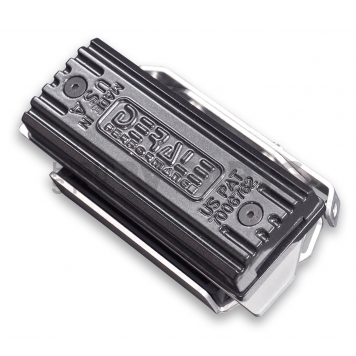

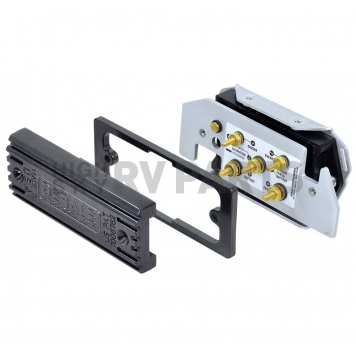

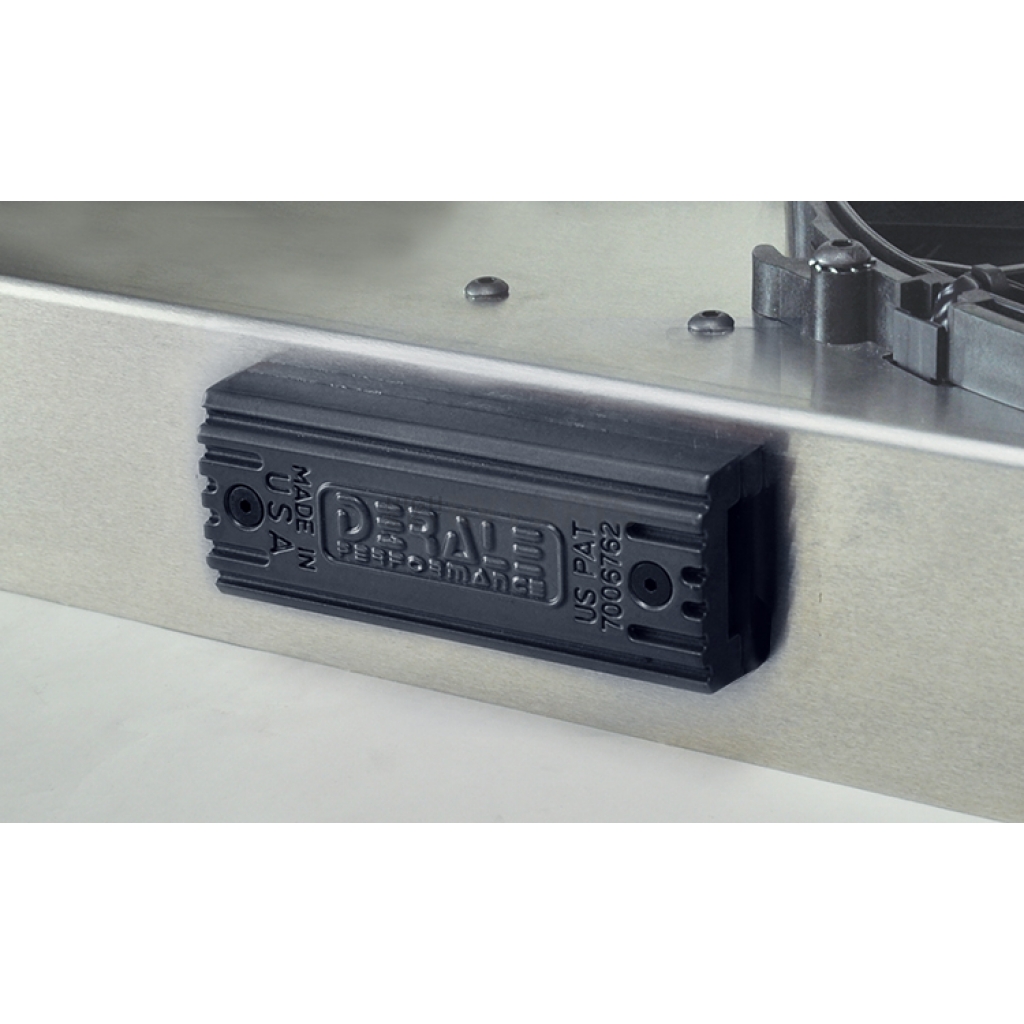

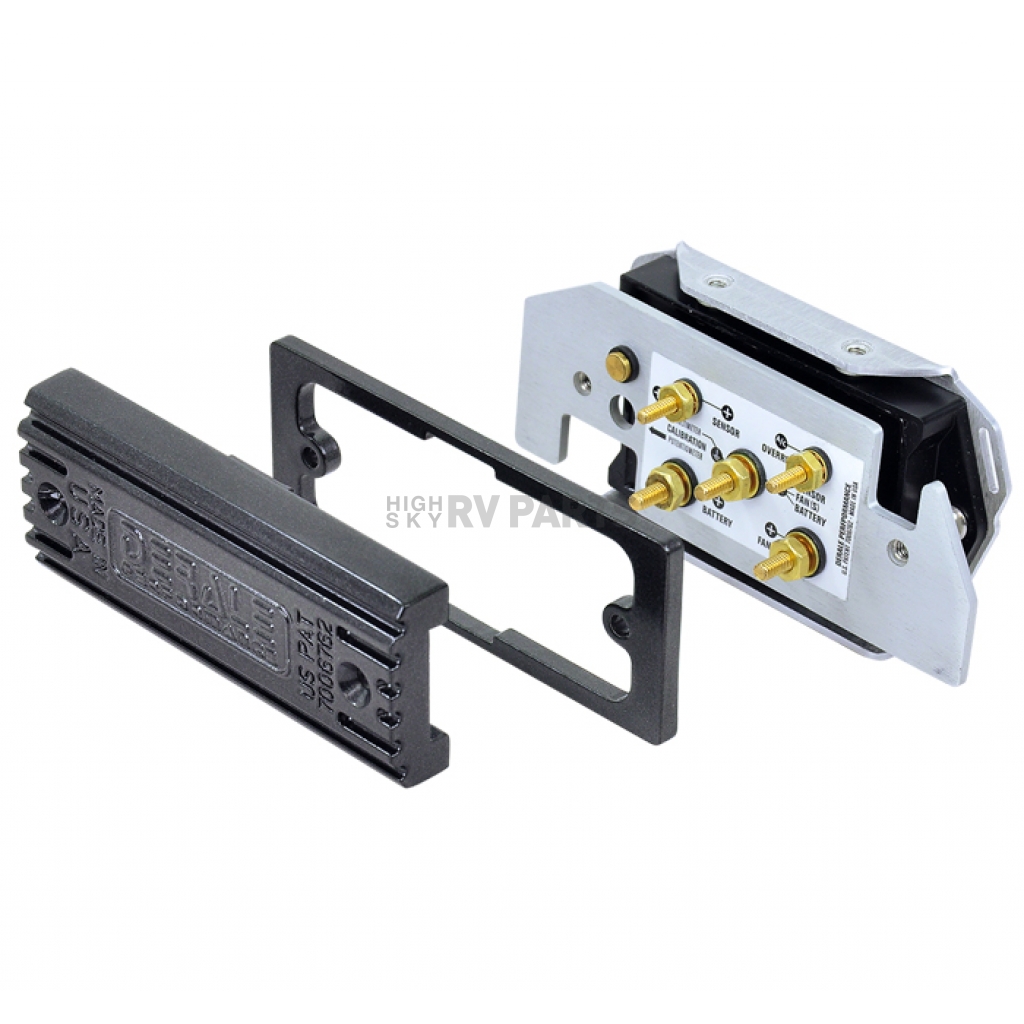

Derale Cooling Fan Speed Control

Cooling Fan Speed Control; Pulse Width Modulation With Push In Probe; 65 Amp Rating; Maintain Desired Temperature Range; From 0 Percent Fan Speed To 100 Percent Fan Speed

MPN: 16796

Derale Performance is changing the rules of engine Temperature control with Smart Technology brought to your car's cooling system through Derale's Patented PWM Fan Controller. Historically, cooling fans run at 100 Percent, even when less airflow is needed, constantly turning on and off as the engine Temperature changes. This reaction based Temperature control system causes constant amperage spikes, excessive noise and premature wear. The Derale PWM fan controller continuously monitors your engine's temperature, therefore controlling the Temperature and increasing the vehicles cooling efficiency, while reducing the Amperes used to do so. Here's how it works; The controller monitors your engine Temperature via the cool side of the radiator, therefore providing a more accurate reading for your cooling system. Using Soft Start Technology, fans ramp up slowly which eliminates harmful AMP spikes. The unit will continuously monitor your engine's Temperature and operate the fans at the optimum fan rate as needed between 1 to 100 percent. The net result; the electric fans often only run between 40 to 60 Percent to keep your engine cool. This multi-fan controller has a built-in A/C Over-ride circuit and is designed to control as many 12 Volt brushed electric fans as desired, up to 65 Ampere combined. Even better, installation and calibration is a snap. It simply installs into a Derale Dual or Single Fan configuration and wires to your vehicles battery; adding in a simple multi-meter and a twist of the temp adjuster, allows you to program the Temperature to maximize your car’s cooling system.
Ampere Rating (A): 65 Amp
Temperature Range: 160 To 210 Degree Fahrenheit
Fan Speed: 0 To 100 Percent
With Relay: No
With Wiring Harness: Yes

Features

  • Pulse Width Modulation Controls Fan(S) Speed From 0 To 100 Percent
  • Constantly Adjusts Fans Speed To Maintain The Desired Temperature
  • Controls Multiple Electric Fans Up To 65 Ampere Capacity
  • Finned, Aluminum Housing
  • Air Conditioning Override Circuit Built-In
  • Limited 1 Year Warranty
Specifications of Derale Cooling Fan Speed Control 16796
Ampere Rating (A) 65 Amp
Fan Speed 0 To 100 Percent
Temperature Range 160 To 210 Degree Fahrenheit
With Relay No
With Wiring Harness Yes
