Dayco Products Inc Accessory Drive Belt Tensioner Assembly 89240
Belt Type
Serpentine
Maximum Belt Width
OEM
Number Of Pulleys
1
Pulley Diameter
OEM
Pulley Groove Count
No Groove
Pulley Material
Glass Filled Polymer
Pulley Width
OEM
Tensioner Rotation
Counter Clockwise
Share this page

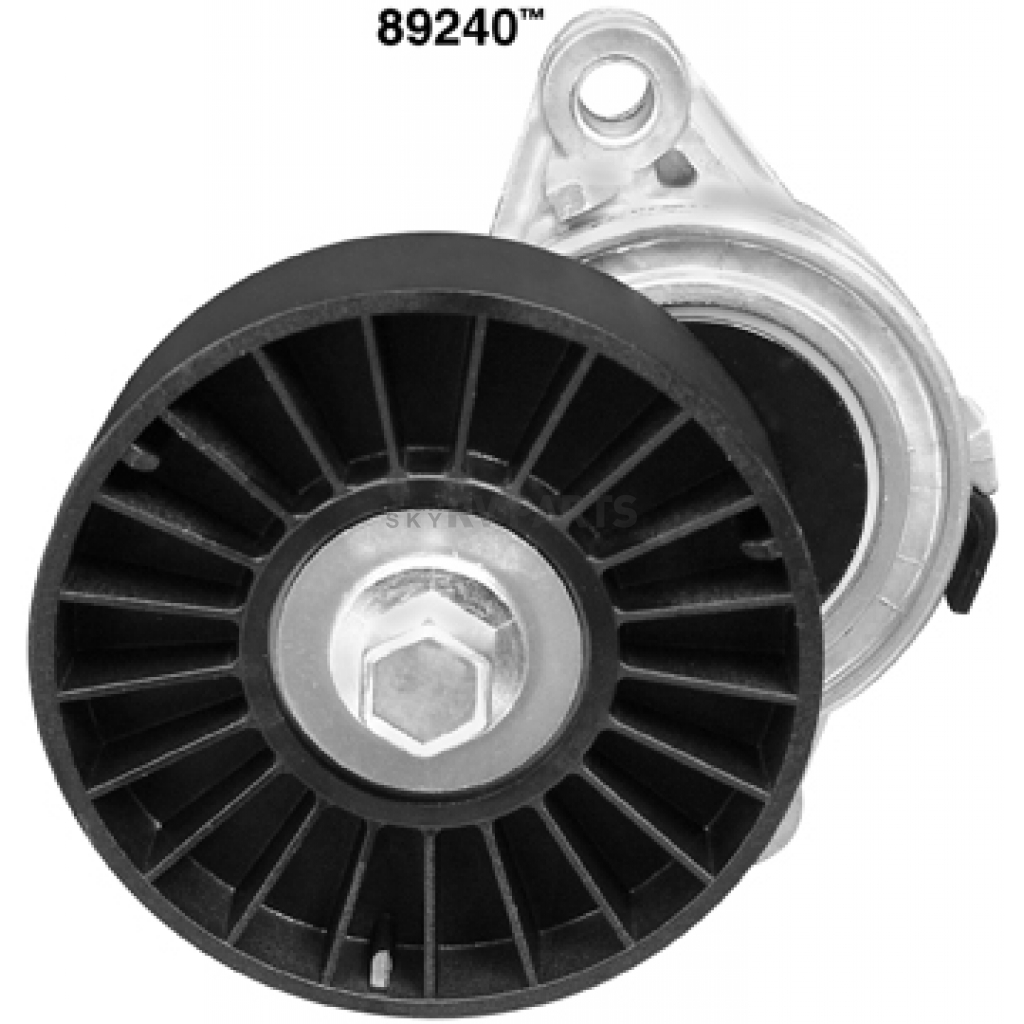

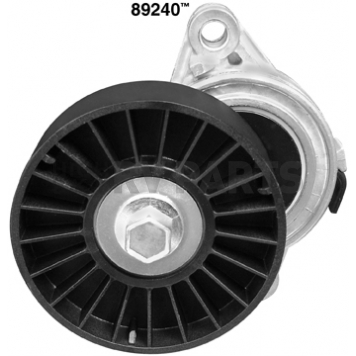

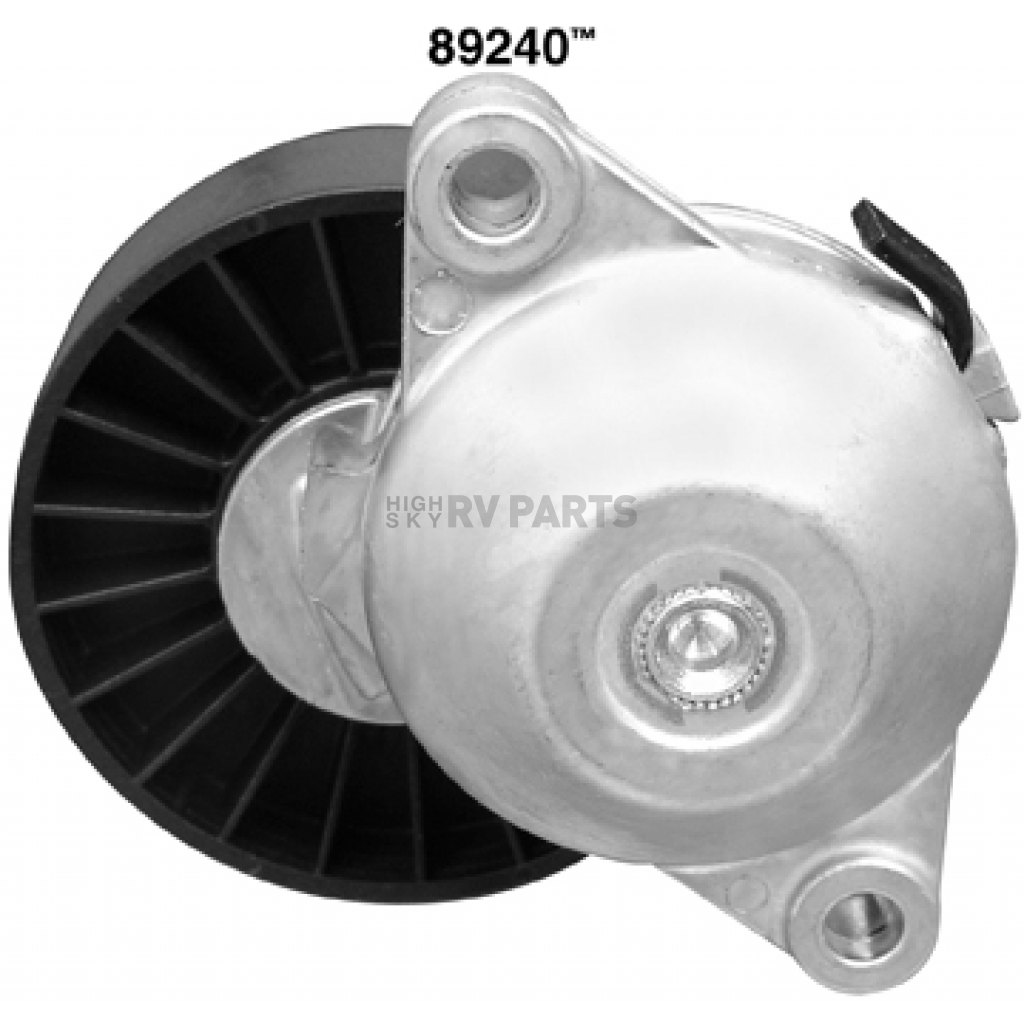

Dayco Products Inc Accessory Drive Belt Tensioner Assembly
Accessory Drive Belt Tensioner Assembly; OE Replacement
MPN: 89240
Serpentine belt drives consist of a single belt that powers most, if not all, of the engine’s accessories. Designed to maintain constant tension on serpentine belt drives, the Dayco Automatic Belt Tensioner features the original flat spring design engineered to provide less operating range variations in tension. This innovative design reduces the risk of premature accessory bearing failure due to high tension when a new belt is installed and lessens the risk of belt noise and slippage, or poor accessory performance caused by low tension after the belt begins to stretch and wear. A PTFE strip wound within the spring resists abrasion and the flat spring is coated to resist rust.
Belt Type: Serpentine
Maximum Belt Width: OEM
Number Of Pulleys: 1
Pulley Groove Count: No Groove
Pulley Diameter: OEM
Pulley Width: OEM
Pulley Material: Glass Filled Polymer
Tensioner Rotation: Counter Clockwise
Features
- Steel Locator Pin (Where The Application Demands)
- Heavy Duty Cast Aluminum Spring Case That Resists Cracking And Fatigue
- Heavy Duty Cast Aluminum Arm Offers Additional Strength And Less Distortion
- Steel Pivot Tube (Where The Application Demands) Provides Additional Strength For Critical Torque Requirements
- Thermoplastic Rubber Spring Slot Plug Helps Keep Out Harmful Contaminants
- Lubricated Nylon Pivot Tube Bushing And Spring Bushing For Quieter Performance
- Rubber “O” Ring Which Seals Against Dust And Grime
- Zinc-Coated Mounting Bolt That Resists Rust
- Limited 1 Year Warranty
| Specifications of Dayco Products Inc Accessory Drive Belt Tensioner Assembly 89240 | |
| Belt Type | Serpentine |
| Maximum Belt Width | OEM |
| Number Of Pulleys | 1 |
| Pulley Diameter | OEM |
| Pulley Groove Count | No Groove |
| Pulley Material | Glass Filled Polymer |
| Pulley Width | OEM |
| Tensioner Rotation | Counter Clockwise |
1991 Saturn SC
1992 Saturn SC
1992 Saturn SC
1993 Saturn SC1
1994 Saturn SC1
1995 Saturn SC1
1996 Saturn SC1
1997 Saturn SC1
1998 Saturn SC1
1999 Saturn SC1
2000 Saturn SC1
2001 Saturn SC1
2002 Saturn SC1
1994 Saturn SC1
1995 Saturn SC1
1996 Saturn SC1
1997 Saturn SC1
1998 Saturn SC1
1999 Saturn SC1
2000 Saturn SC1
2001 Saturn SC1
2002 Saturn SC1
1993 Saturn SC2
1994 Saturn SC2
1995 Saturn SC2
1996 Saturn SC2
1997 Saturn SC2
1998 Saturn SC2
1999 Saturn SC2
2000 Saturn SC2
2001 Saturn SC2
2002 Saturn SC2
1994 Saturn SC2
1995 Saturn SC2
1996 Saturn SC2
1997 Saturn SC2
1998 Saturn SC2
1999 Saturn SC2
2000 Saturn SC2
2001 Saturn SC2
2002 Saturn SC2
1991 Saturn SL
1992 Saturn SL
1993 Saturn SL
1994 Saturn SL
1995 Saturn SL
1996 Saturn SL
1997 Saturn SL
1998 Saturn SL
1999 Saturn SL
2000 Saturn SL
2001 Saturn SL
2002 Saturn SL
1992 Saturn SL
1993 Saturn SL
1994 Saturn SL
1995 Saturn SL
1996 Saturn SL
1997 Saturn SL
1998 Saturn SL
1999 Saturn SL
2000 Saturn SL
2001 Saturn SL
2002 Saturn SL
1991 Saturn SL1
1992 Saturn SL1
1993 Saturn SL1
1994 Saturn SL1
1995 Saturn SL1
1996 Saturn SL1
1997 Saturn SL1
1998 Saturn SL1
1999 Saturn SL1
2000 Saturn SL1
2001 Saturn SL1
2002 Saturn SL1
1992 Saturn SL1
1993 Saturn SL1
1994 Saturn SL1
1995 Saturn SL1
1996 Saturn SL1
1997 Saturn SL1
1998 Saturn SL1
1999 Saturn SL1
2000 Saturn SL1
2001 Saturn SL1
2002 Saturn SL1
1991 Saturn SL2
1992 Saturn SL2
1993 Saturn SL2
1994 Saturn SL2
1995 Saturn SL2
1996 Saturn SL2
1997 Saturn SL2
1998 Saturn SL2
1999 Saturn SL2
2000 Saturn SL2
2001 Saturn SL2
2002 Saturn SL2
1992 Saturn SL2
1993 Saturn SL2
1994 Saturn SL2
1995 Saturn SL2
1996 Saturn SL2
1997 Saturn SL2
1998 Saturn SL2
1999 Saturn SL2
2000 Saturn SL2
2001 Saturn SL2
2002 Saturn SL2
1993 Saturn SW1
1994 Saturn SW1
1995 Saturn SW1
1996 Saturn SW1
1997 Saturn SW1
1998 Saturn SW1
1999 Saturn SW1
1994 Saturn SW1
1995 Saturn SW1
1996 Saturn SW1
1997 Saturn SW1
1998 Saturn SW1
1999 Saturn SW1
1993 Saturn SW2
1994 Saturn SW2
1995 Saturn SW2
1996 Saturn SW2
1997 Saturn SW2
1998 Saturn SW2
1999 Saturn SW2
2000 Saturn SW2
2001 Saturn SW2
1994 Saturn SW2
1995 Saturn SW2
1996 Saturn SW2
1997 Saturn SW2
1998 Saturn SW2
1999 Saturn SW2
2000 Saturn SW2
2001 Saturn SW2
