Dart Intake Manifold - 41115000
Basic Operating RPM - High
9000
Basic Operating RPM - Low
3500
Color
Silver
Cylinder Block Design
Tall
Deck Height
10.2 Inch
Engine Compatibility
Chevy Big Block V8 396-502 Cubic Inch
Finish
Natural
Fuel Delivery Type
Carbureted
Material
Aluminum
Port Shape
Rectangular
Type
Single Plane
Share this page

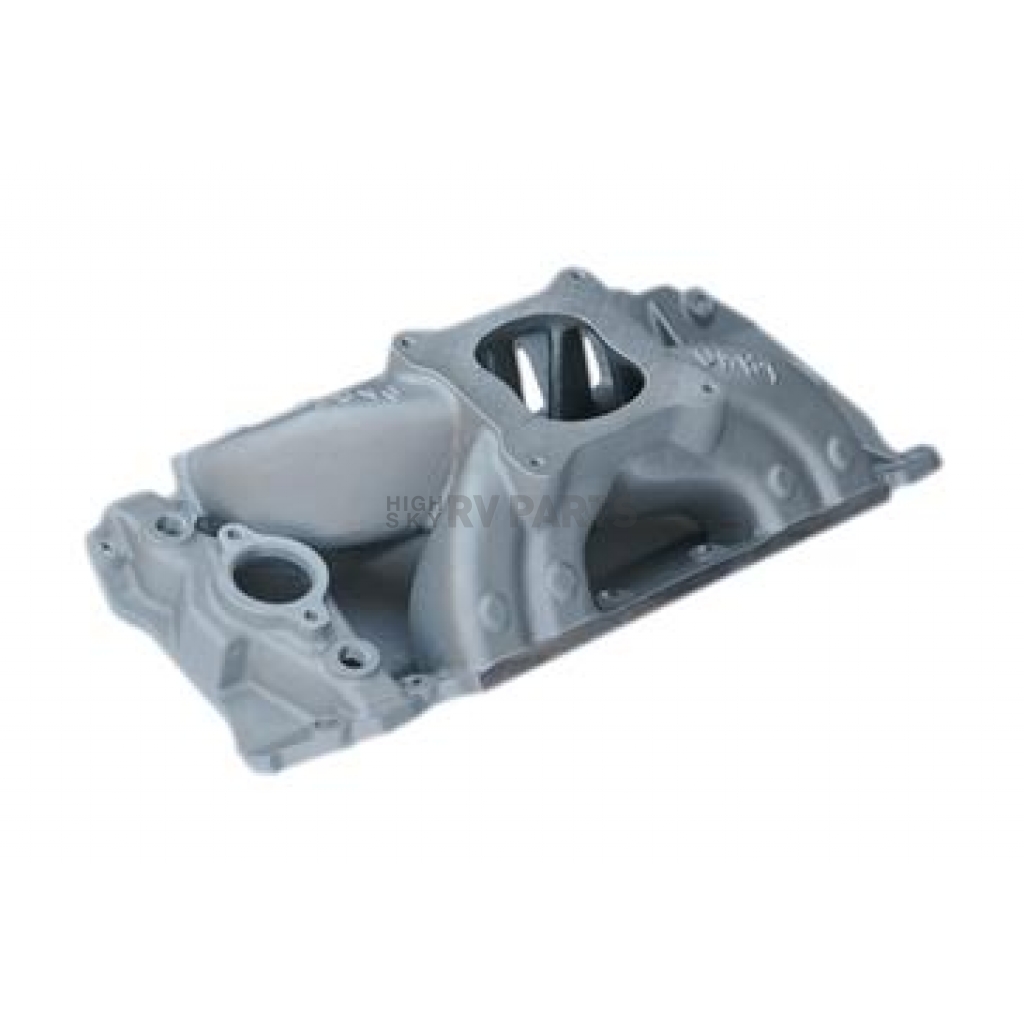

Dart Intake Manifold
Intake Manifold; Big Block Intake Manifolds; For Use With Rectangle Port Tall Deck Big Block Chevy Engines; 3500 - 9000 RPM; Single Plane; 4150 Flange Carburetor; Aluminum; Natural
MPN: 41115000
Dart big block Chevy manifolds are available with rectangular or oval ports to match your big block cylinder heads. These single-plane, high-rise intakes are designed to produce maximum power at higher RPM. Dart manifolds are designed to make engine building easier. For example, our tall-deck big-block manifolds use standard length distributors. Carburetor pads are specifically designed for 4150 and 4500 carbs. Extended runner dividers equalize port length and are radiused to equalize cylinder-to cylinder fuel distribution. Optimized runner cross-sectional area maintains high mixture velocity for maximum torque. Angled runners turn the air fuel mixture smoothly from carburetor to ports. Dual distributor hold-downs simplify timing adjustments. Raised water cross-over and air gap insulate the intake charge from engine heat. Integral bosses for nitrous injectors.
Engine Compatibility: Chevy Big Block V8 396-502 Cubic Inch
Basic Operating RPM - Low: 3500
Basic Operating RPM - High: 9000
Type: Single Plane
Fuel Delivery Type: Carbureted
Cylinder Block Design: Tall
Deck Height: 10.2 Inch
Port Shape: Rectangular
Finish: Natural
Color: Silver
Material: Aluminum
Features
- Single-Plane, High-Rise Intakes Are Designed To Produce Maximum Power At Higher RPM
- Designed To Make Engine Building Easier
- Extended Runner Dividers Equalize Port Length And Are Radiused To Equalize Cylinder-To Cylinder Fuel Distribution
- Angled Runners Turn The Air Fuel Mixture Smoothly From Carburetor To Ports
- Raised Water Cross-Over And Air Gap Insulate The Intake Charge From Engine Heat
- Limited 6 Month Warranty
Specifications of Dart Intake Manifold - 41115000 | |
Basic Operating RPM - High | 9000 |
Basic Operating RPM - Low | 3500 |
Color | Silver |
Cylinder Block Design | Tall |
Deck Height | 10.2 Inch |
Engine Compatibility | Chevy Big Block V8 396-502 Cubic Inch |
Finish | Natural |
Fuel Delivery Type | Carbureted |
Material | Aluminum |
Port Shape | Rectangular |
Type | Single Plane |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
