Dart Cylinder Head 11511122L
CNC-Machined
No
Combustion Chamber Volume (cc)
58 Cubic Centimeter
Condition
New
Engine Compatibility
Chevy LT1/ LT4 Engine
Exhaust Port Location
Standard
Exhaust Runner Volume (CC)
75 Cubic Centimeter
Exhaust Valve Diameter (IN)
1.6 Inch
Includes Damper Spring
Yes
Includes Guideplates
Yes
Includes Rocker Arm Studs
Yes
Includes Valves
Yes
Share this page

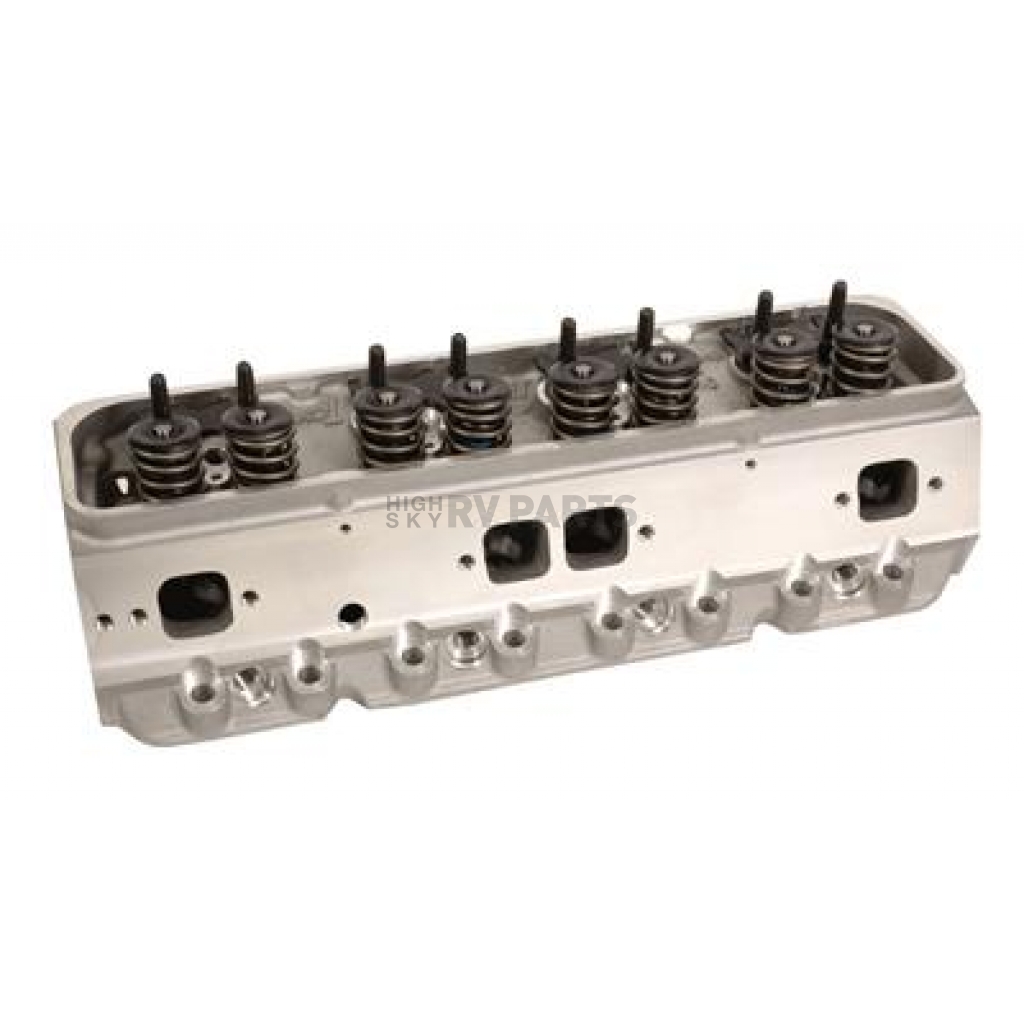

Dart Cylinder Head
Cylinder Head; Pro 1; Assembled; For Use With Chevy LT1/ LT4 Engines; Aluminum; Angled Plug; 215 CC Intake Port; 58 CC Chamber Volume; 2.050 Inch Intake Valve Seat/ 1.600 Exhaust Valve Seat; 1.437 Dual Valve Springs; Single
MPN: 11511122L
Advanced features include five angle intake seats and back cut valves that provide shear points for the fuel to go into suspension as it enters the combustion chamber. The spark plugs are located as close to the top and center of the combustion chambers as possible, shortening the distance that the flame front must travel and producing a more uniform pressure rise in the cylinder.
Condition: New
Engine Compatibility: Chevy LT1/ LT4 Engine
Style: Assembled
Material: Aluminum
CNC-Machined: No
Combustion Chamber Volume (cc): 58 Cubic Centimeter
Intake Runner Volume (CC): 215 Cubic Centimeter
Exhaust Runner Volume (CC): 75 Cubic Centimeter
Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valve Diameter (IN): 2.05 Inch
Exhaust Valve Diameter (IN): 1.6 Inch
Includes Valves: Yes
Spark Plug Angle: Angled
Rocker Arm Nut Thread Size: 3/8 Inch
Includes Rocker Arm Studs: Yes
Valve Lock Type: 10 Degree
Valve Stem Seal Type: PC Seal
Valve Guide Material: Manganese Bronze
Number Of Springs Per Valve: Dual
Valve Seats Machined: Yes
Includes Guideplates: Yes
Includes Damper Spring: Yes
Features
- Premium Alloy: Dart Aluminum Heads Are Cast From Virgin 355-T61 Aerospace Alloy For Superior Strength And Integrity
- Bolt On Compatibility: Standard Valve Angle And Spacing Are Retained To Allow Use Of Off The Shelf Pistons And Valve Train Components
- Heart Shaped Chambers Improve Combustion Efficiency
- Multi-Angle Intake And Radiused Exhaust Seats Dramatically Improve Air Flow
- Hardened Exhaust Seats Are Compatible With Unleaded Gasoline
- Manganese Bronze Valve Guides For Extended Cylinder Head Life
- Spark Plug Holes Are Gasketed For 3/4 Inch Reach Plugs
- Limited 6 Month Warranty
| Specifications of Dart Cylinder Head 11511122L | |
| CNC-Machined | No |
| Combustion Chamber Volume (cc) | 58 Cubic Centimeter |
| Condition | New |
| Engine Compatibility | Chevy LT1/ LT4 Engine |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume (CC) | 75 Cubic Centimeter |
| Exhaust Valve Diameter (IN) | 1.6 Inch |
| Includes Damper Spring | Yes |
| Includes Guideplates | Yes |
| Includes Rocker Arm Studs | Yes |
| Includes Valves | Yes |
| Intake Port Location | Standard |
| Intake Runner Volume (CC) | 215 Cubic Centimeter |
| Intake Valve Diameter (IN) | 2.05 Inch |
| Material | Aluminum |
| Number Of Springs Per Valve | Dual |
| Port Shape | Rectangular |
| Rocker Arm Nut Thread Size | 3/8 Inch |
| Spark Plug Angle | Angled |
| Style | Assembled |
| Valve Guide Material | Manganese Bronze |
| Valve Lock Type | 10 Degree |
| Valve Seats Machined | Yes |
| Valve Stem Seal Type | PC Seal |
1900-1900 Chevrolet LT1/LT4 Small Block 1993-1997
1900 Chevrolet LT1/LT4 Small Block 1993-1997
