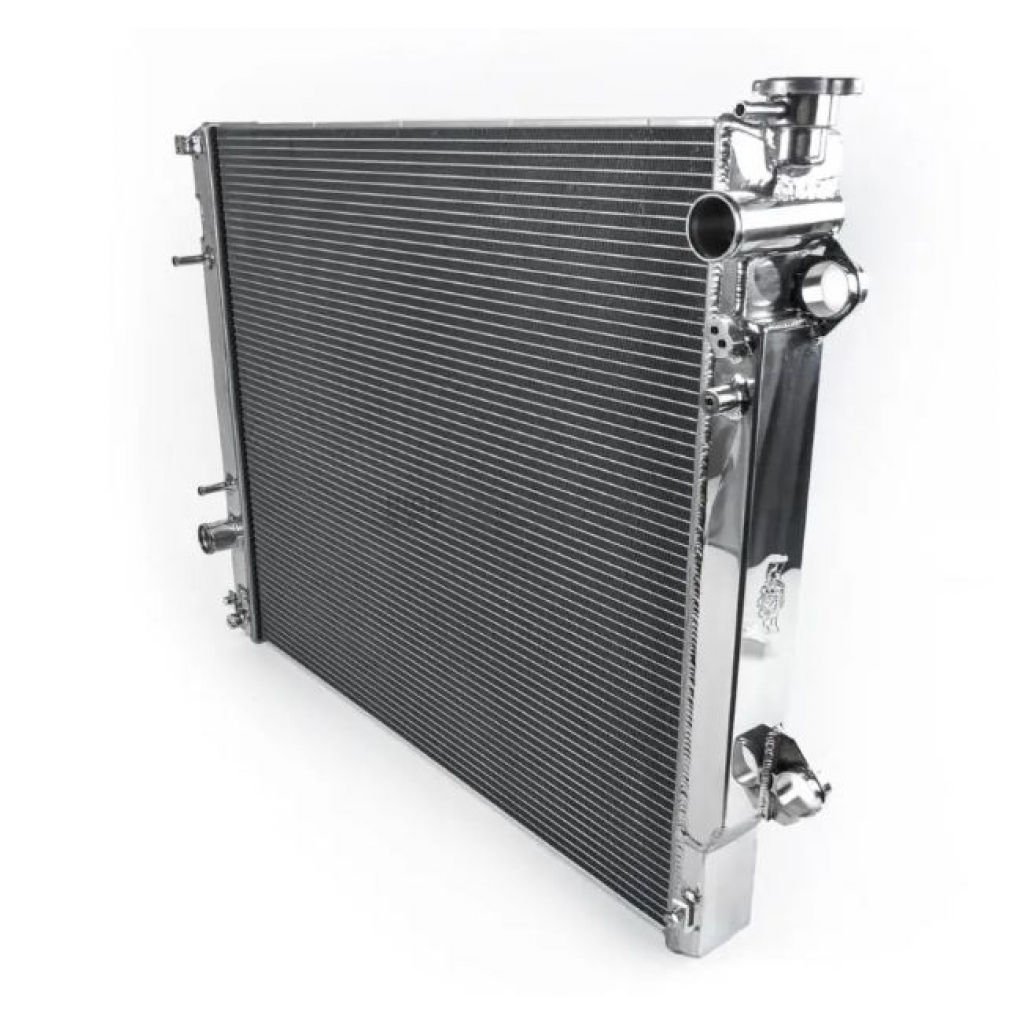

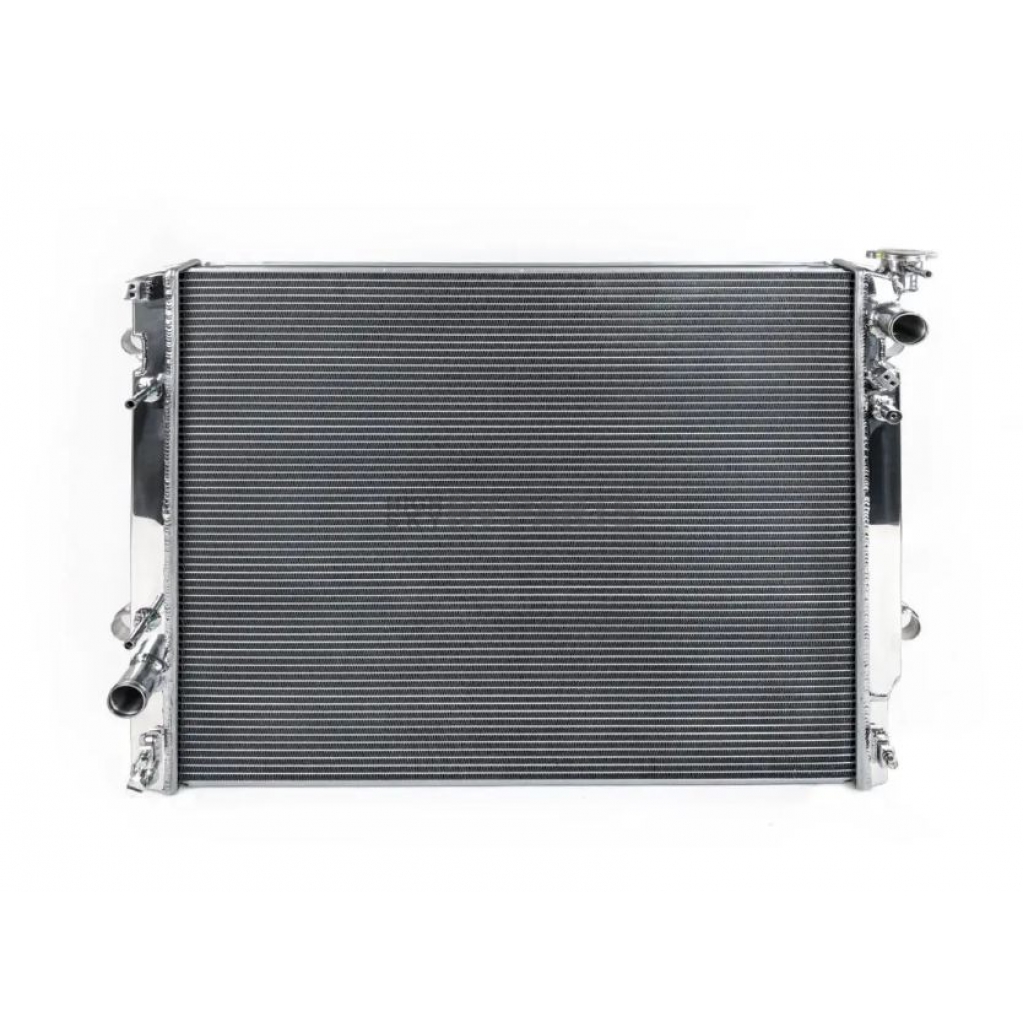

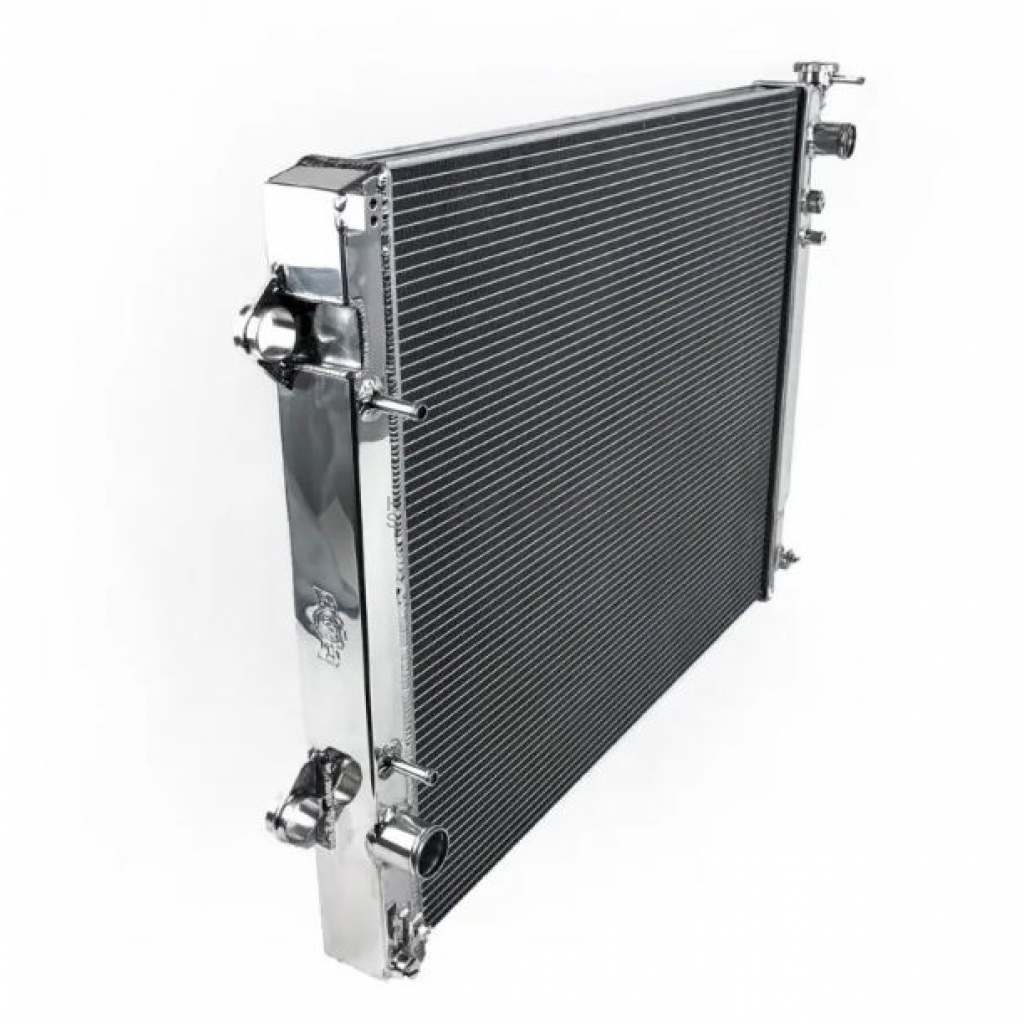

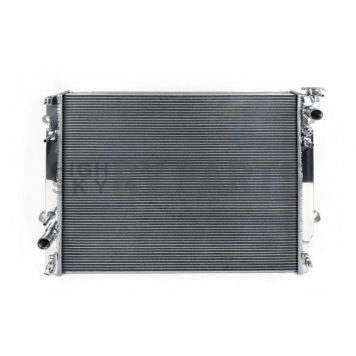

CSF Radiator 7092
Core Depth (IN)
1-5/8 Inch
Core Height (IN)
22 Inch
Core Length (IN)
25-9/16 Inch
Core Material
Aluminum
Flow Direction
Crossflow
Inlet Hose Location
Driver Side
Inlet Size (IN)
1-3/8 Inch
Outlet Hose Location
Passenger Side
Outlet Size (IN)
1-3/8 Inch
With Radiator Cap
Yes
With Transmission Cooler
Yes
Share this page
Radiator; Core Dimensions 25-9/16 Inch Length X 22 Inch Height X 1-5/8 Inch Depth; Crossflow; Aluminum; 1-3/8 Inch Top Left Inlet And 1-3/8 Inch Bottom Right; Without Transmission Cooler; With Radiator Cap; With Bushing Adapter Kit
MPN: 7092
CSF Radiators are designed and built to High Performance Standards. Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation. We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.Flow Direction: Crossflow
Core Material: Aluminum
Inlet Hose Location: Driver Side
Inlet Size (IN): 1-3/8 Inch
Outlet Hose Location: Passenger Side
Outlet Size (IN): 1-3/8 Inch
Core Length (IN): 25-9/16 Inch
Core Height (IN): 22 Inch
Core Depth (IN): 1-5/8 Inch
With Radiator Cap: Yes
With Transmission Cooler: Yes
Features
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
- Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
- Tubes - Welded Type Or Latest Generation "B-Tube" Design
- Fins High Performance "Multi-Louvered Design" OEM Spec
- 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
- High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
- Drop-In Fit
- All Components Are Installed, Torqued And Tested On Radiator During Assembly
- Limited 2 Year Warranty
Specifications of CSF Radiator 7092 | |
Core Depth (IN) | 1-5/8 Inch |
Core Height (IN) | 22 Inch |
Core Length (IN) | 25-9/16 Inch |
Core Material | Aluminum |
Flow Direction | Crossflow |
Inlet Hose Location | Driver Side |
Inlet Size (IN) | 1-3/8 Inch |
Outlet Hose Location | Passenger Side |
Outlet Size (IN) | 1-3/8 Inch |
With Radiator Cap | Yes |
With Transmission Cooler | Yes |
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
