CSF Radiator 7061
Color
Silver
Core Depth (IN)
1-1/4 Inch
Core Height (IN)
24 Inch
Core Length (IN)
18-7/16 Inch
Core Material
Aluminum
Core Rows
Two
Finish
Bare
Flow Direction
Down Flow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Right
Share this page

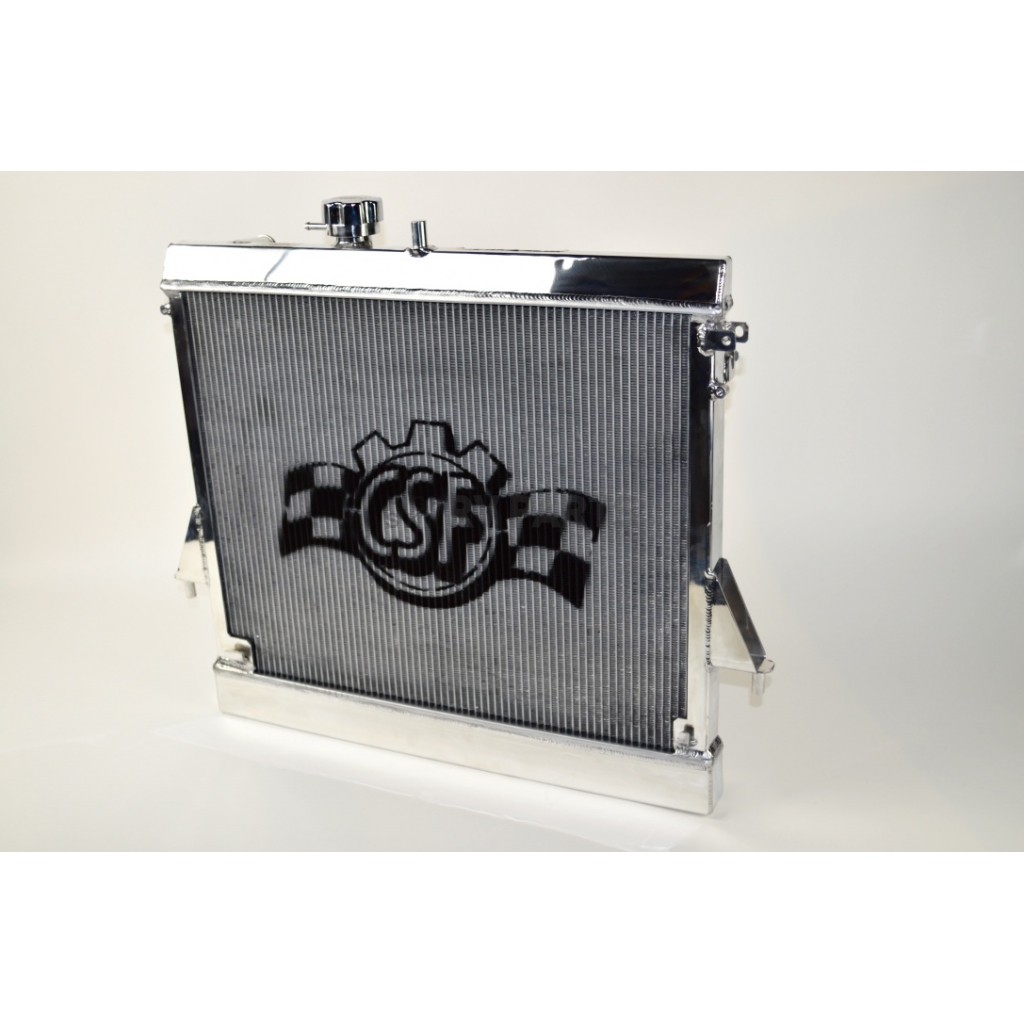

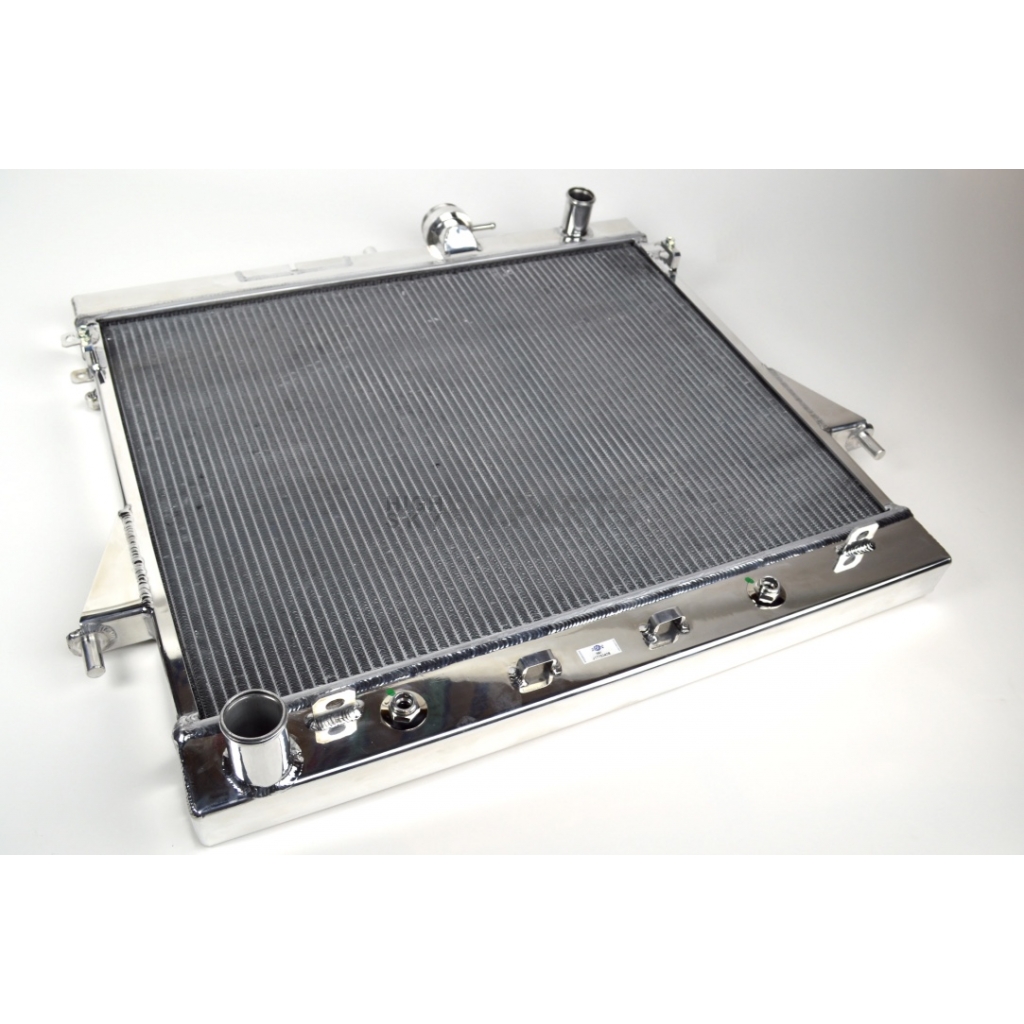

CSF Radiator
Radiator; High Performance; Two Row; Downflow; Aluminum; With Transmission Cooler; With Radiator Cap
MPN: 7061
CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry leading testing methods to maximize airflow and heat dissipation. Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in a shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tube by approximately 15 Percent over regular tubes. You get the efficiency of 2 smaller tubes versus 1 large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow." CSF uses special "B-Tube" technology in place of traditional "O" type tubes for higher efficiency and added strength. With "B-tubes" you are able to get "dual liquid laminar flow." Each CSF radiator is completed with an industry leading 1 hour, hand polished “Sho-Stopper mirror finish.”
Flow Direction: Down Flow
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: Two
Core Length (IN): 18-7/16 Inch
Core Height (IN): 24 Inch
Core Depth (IN): 1-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1-1/4 Inch
Outlet Hose Location: Bottom Left
Outlet Size (IN): 1-1/2 Inch
Finish: Bare
Color: Silver
Tank Material: Aluminum

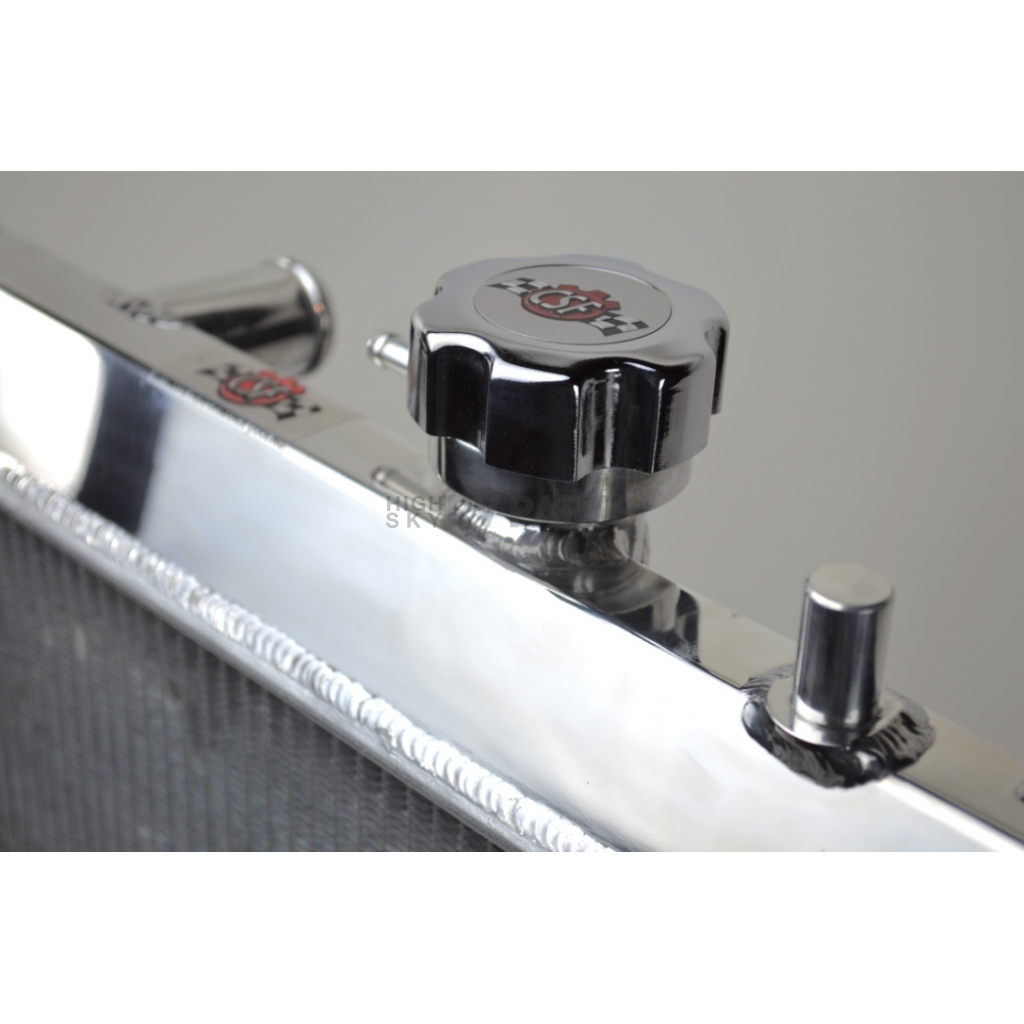

With Radiator Cap: Yes
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Features
- Innovative Tube And Fin Technologies With Industry Leading Testing Methods To Maximize Airflow And Heat Dissipation
- Specially Engineered Tube In A Shape Of A "B". These "B-Tubes" Are Carefully Formed And Then Brazed Over The Seam To Seal
- Thinner And Lighter Aluminum Material (Better Cooling Efficiency) Because This Design Is Actually Stronger Than Normal "O" Shape Tubes That Are Welded
- Special "B-Tube" Technology In Place Of Traditional "O" Type Tubes For Higher Efficiency And Added Strength
- With "B-Tubes" You Are Able To Get "Dual Liquid Laminar Flow"
- Completed With An Industry Leading 1 Hour, Hand Polished “Sho-Stopper Mirror Finish”
- Limited 90 Day Warranty
Specifications of CSF Radiator 7061 | |
Color | Silver |
Core Depth (IN) | 1-1/4 Inch |
Core Height (IN) | 24 Inch |
Core Length (IN) | 18-7/16 Inch |
Core Material | Aluminum |
Core Rows | Two |
Finish | Bare |
Flow Direction | Down Flow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | Top Right |
Inlet Size (IN) | 1-1/4 Inch |
Outlet Hose Location | Bottom Left |
Outlet Size (IN) | 1-1/2 Inch |
Overall Depth (IN) | OEM |
Overall Height (IN) | OEM |
Overall Length (IN) | OEM |
Tank Material | Aluminum |
With Engine Oil Cooler | No |
With Radiator Cap | Yes |
With Transmission Cooler | Yes |
2006 Hummer H3
2007 Hummer H3
2008 Hummer H3
2009 Hummer H3
2010 Hummer H3
2007 Hummer H3
2008 Hummer H3
2009 Hummer H3
2010 Hummer H3
2009 Hummer H3T
2010 Hummer H3T
2010 Hummer H3T
