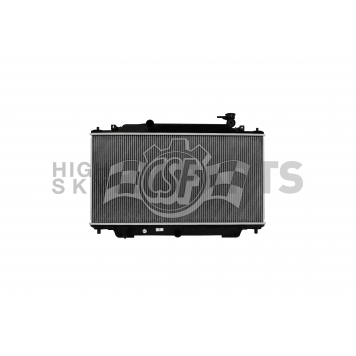

CSF Radiator 3779
Color
Black
Core Depth (IN)
5/8 Inch
Core Height (IN)
29-1/16 Inch
Core Length (IN)
14-3/4 Inch
Core Material
Aluminum
Core Rows
One
Flow Direction
Downflow
Includes Fittings
Yes
Inlet Hose Location
Driver Side
Inlet Size (IN)
1-5/16 Inch
Outlet Hose Location
Lower Center
Share this page
CSF Radiator

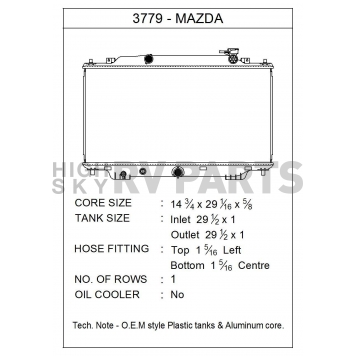

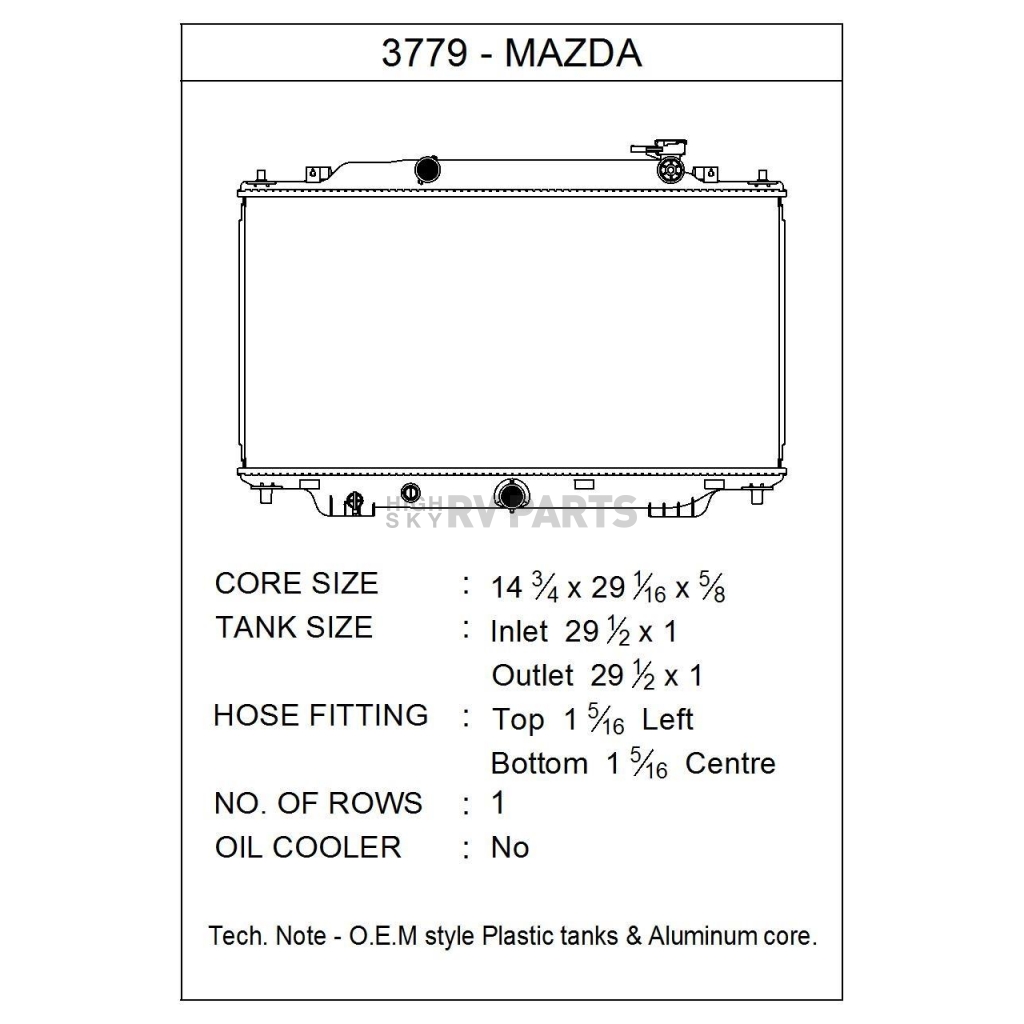

Radiator; OE Replacement; Core Dimensions 14-3/4 Inch Length x 29-1/16 Inch Width x 5/8 Inch Depth; Single Core Row; Downflow; Aluminum Core With Plastic Tanks; 1-5/16 Inch Top Left Inlet Fitting x Center Bottom Outlet; With Transmission Cooler
MPN: 3779
CSF factories are ISO/TSO certified, CSF radiators are designed and built to high performance standards and sold worldwide for over 50 years - over 30 million units sold!;our radiators are carefully engineered And wind tunnel tested in labratory for cooling performance validation;we have over 10,000 different models of radiators that we manufacture and supply for all the leading brands of vehicles on the road.
Flow Direction: Downflow
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: One
Core Length (IN): 14-3/4 Inch
Core Height (IN): 29-1/16 Inch
Core Depth (IN): 5/8 Inch
Core Material: Aluminum
Inlet Hose Location: Driver Side
Inlet Size (IN): 1-5/16 Inch
Outlet Hose Location: Lower Center
Outlet Size (IN): 1-5/16 Inch
Color: Black
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: Yes
Includes Fittings: Yes
Features
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are Glass-Filled For Added Strength And Durability
- Gaskets Are Made From Special Grade EPDM Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
- Welded Type Or Latest Generation B-Tube Design
- Fins Are High Performance Multi-Louvered Design - OEM Spec
- 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
- All Components Are Installed, Torqued, And Tested On Radiator During Assembly
- Drop-In Fit
- No Supplier Warranty
Specifications of CSF Radiator 3779 | |
Color | Black |
Core Depth (IN) | 5/8 Inch |
Core Height (IN) | 29-1/16 Inch |
Core Length (IN) | 14-3/4 Inch |
Core Material | Aluminum |
Core Rows | One |
Flow Direction | Downflow |
Includes Fittings | Yes |
Inlet Hose Location | Driver Side |
Inlet Size (IN) | 1-5/16 Inch |
Outlet Hose Location | Lower Center |
Outlet Size (IN) | 1-5/16 Inch |
Overall Depth (IN) | OEM |
Overall Height (IN) | OEM |
Overall Length (IN) | OEM |
Tank Material | Plastic |
With Radiator Cap | No |
With Transmission Cooler | Yes |
2014 Mazda 3
2015 Mazda 3
2016 Mazda 3
2017 Mazda 3
2018 Mazda 3
2015 Mazda 3
2016 Mazda 3
2017 Mazda 3
2018 Mazda 3
