CSF Radiator 3664

Brand: CSF

Have a product question? Ask us
Part Number: 3664
Part Location: U.S.
Availability: 3 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 27

Retail: $138.59

Price: $131.99

You Save: $6.60

Color

Black/ Silver

Core Depth (IN)

7/8 Inch

Core Height (IN)

15-7/8 Inch

Core Length (IN)

25-9/16 Inch

Core Material

Aluminum

Core Rows

Single

Flow Direction

Crossflow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Inlet Size (IN)

1-3/8 Inch

Share this page

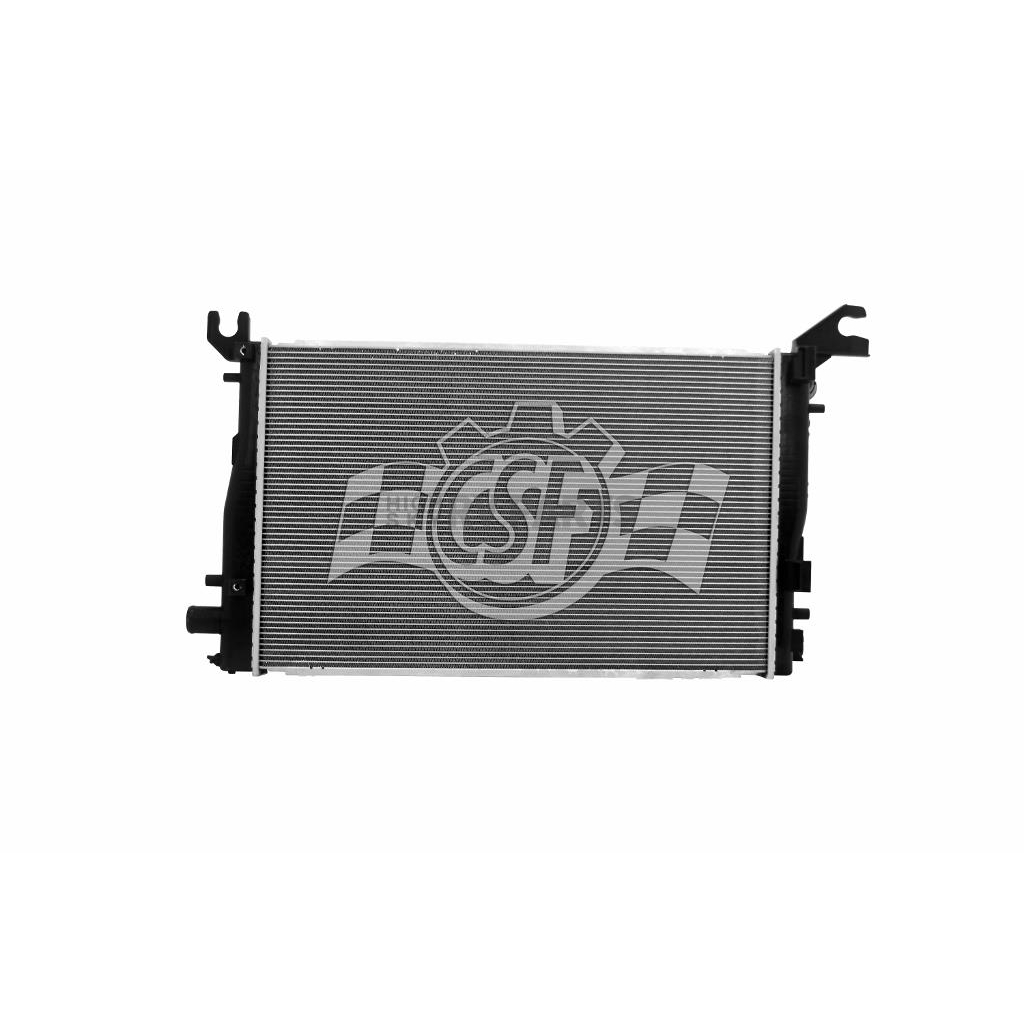

CSF Radiator

Radiator; Core Dimensions 15-7/8 Inch Width x 25-9/16 Inch Length x 7/8 Inch Depth; Crossflow; Aluminum; 1-3/8 Inch Top Left Inlet And 1-3/8 Inch Bottom Right Outlet; Without Transmission Cooler

MPN: 3664

CSF Radiators are designed and built to High Performance Standards. Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation. We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.

Flow Direction: Crossflow

Core Rows: Single

Core Length (IN): 25-9/16 Inch

Core Height (IN): 15-7/8 Inch

Core Depth (IN): 7/8 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1-3/8 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1-3/8 Inch

Color: Black/ Silver

Tank Material: Plastic

With Radiator Cap: No

With Transmission Cooler: Yes

With Engine Oil Cooler: No

Includes Fittings: No

Includes Mounting Hardware: No

Features

OEM Specified Plastic Tank-Aluminum Core Construction
Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
Tubes Welded Type Or Latest Generation "B-Tube" Design
Fins High Performance "Multi-Louvered Design" OEM Spec
100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
Drop-In Fit
All Components Are Installed, Torqued, And Tested On Radiator During Assembly
No Supplier Warranty

Specifications of CSF Radiator 3664
Color	Black/ Silver
Core Depth (IN)	7/8 Inch
Core Height (IN)	15-7/8 Inch
Core Length (IN)	25-9/16 Inch
Core Material	Aluminum
Core Rows	Single
Flow Direction	Crossflow
Includes Fittings	No
Includes Mounting Hardware	No
Inlet Hose Location	Top Left
Inlet Size (IN)	1-3/8 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1-3/8 Inch
Tank Material	Plastic
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	Yes
