CSF Radiator 3396
Color
Black/ Silver
Core Depth (IN)
1-5/8 Inch
Core Height (IN)
24-15/16 Inch
Core Length (IN)
23-5/8 Inch
Core Material
Aluminum
Core Rows
Two
Flow Direction
Downflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Right
Inlet Size (IN)
1-3/4 Inch
Share this page

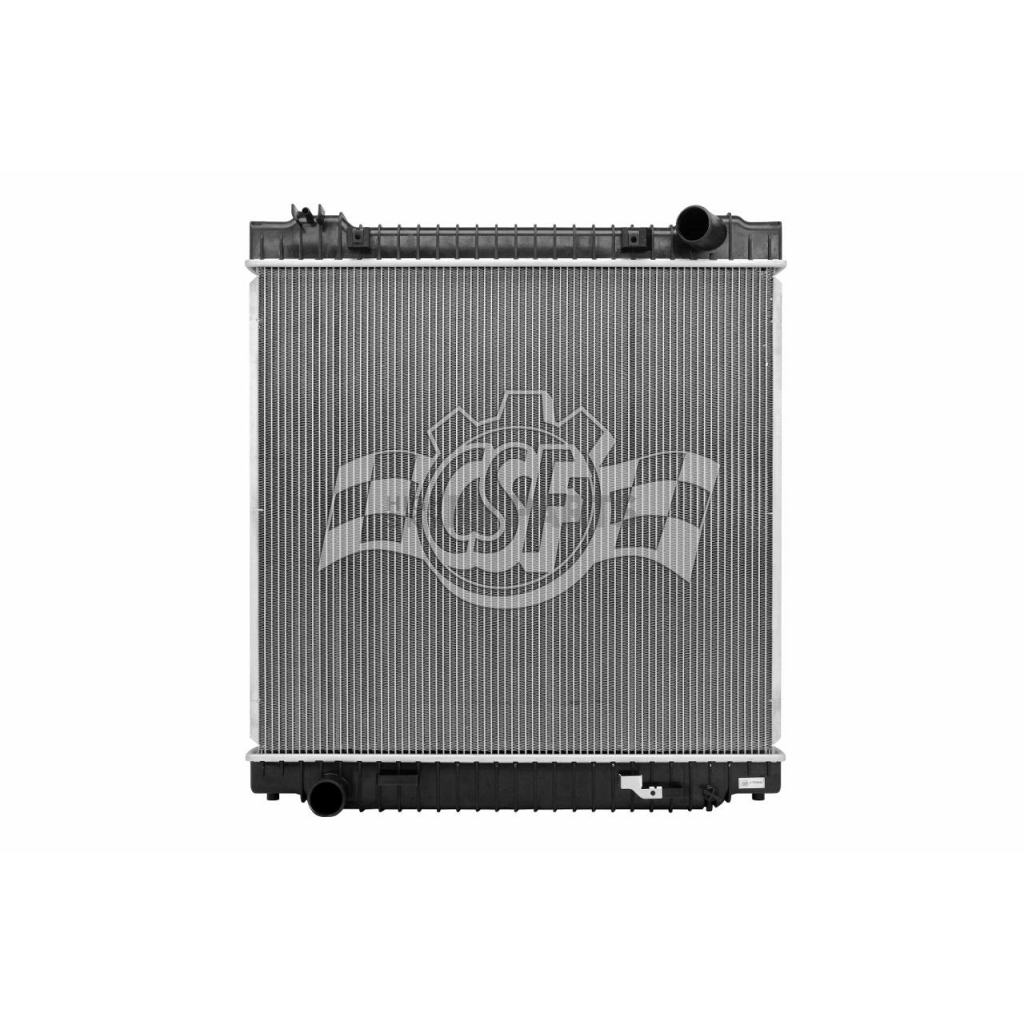

CSF Radiator
Radiator; Core Dimensions 24-15/16 Inch Width x 25-7/8 Inch Length x 1-5/8 Inch Depth; 2 Row; Downflow; Aluminum; 1-3/4 Inch Top Right Inlet And 1-3/4 Inch Bottom Left Outlet; With Transmission Cooler
MPN: 3396
CSF Radiators are designed and built to High Performance Standards. Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation. We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.
Flow Direction: Downflow
Core Rows: Two
Core Length (IN): 23-5/8 Inch
Core Height (IN): 24-15/16 Inch
Core Depth (IN): 1-5/8 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1-3/4 Inch
Outlet Hose Location: Bottom Left
Outlet Size (IN): 1-3/4 Inch
Color: Black/ Silver
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Features
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
- Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
- Tubes Welded Type Or Latest Generation "B-Tube" Design
- Fins High Performance "Multi-Louvered Design" OEM Spec
- 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
- High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
- Drop-In Fit
- All Components Are Installed, Torqued, And Tested On Radiator During Assembly
- No Supplier Warranty
Specifications of CSF Radiator 3396 | |
Color | Black/ Silver |
Core Depth (IN) | 1-5/8 Inch |
Core Height (IN) | 24-15/16 Inch |
Core Length (IN) | 23-5/8 Inch |
Core Material | Aluminum |
Core Rows | Two |
Flow Direction | Downflow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | Top Right |
Inlet Size (IN) | 1-3/4 Inch |
Outlet Hose Location | Bottom Left |
Outlet Size (IN) | 1-3/4 Inch |
Tank Material | Plastic |
With Engine Oil Cooler | No |
With Radiator Cap | No |
With Transmission Cooler | Yes |
2004-2005 Ford E-350 Club Wagon
2004 Ford E-350 Club Wagon
2005 Ford E-350 Club Wagon
2005 Ford E-350 Club Wagon
2004-2010 Ford E-350 Super Duty
2004 Ford E-350 Super Duty
2005 Ford E-350 Super Duty
2006 Ford E-350 Super Duty
2007 Ford E-350 Super Duty
2008 Ford E-350 Super Duty
2009 Ford E-350 Super Duty
2010 Ford E-350 Super Duty
2005 Ford E-350 Super Duty
2006 Ford E-350 Super Duty
2007 Ford E-350 Super Duty
2008 Ford E-350 Super Duty
2009 Ford E-350 Super Duty
2010 Ford E-350 Super Duty
2004-2010 Ford E-450 Super Duty
2004 Ford E-450 Super Duty
2005 Ford E-450 Super Duty
2006 Ford E-450 Super Duty
2007 Ford E-450 Super Duty
2008 Ford E-450 Super Duty
2009 Ford E-450 Super Duty
2010 Ford E-450 Super Duty
2005 Ford E-450 Super Duty
2006 Ford E-450 Super Duty
2007 Ford E-450 Super Duty
2008 Ford E-450 Super Duty
2009 Ford E-450 Super Duty
2010 Ford E-450 Super Duty
