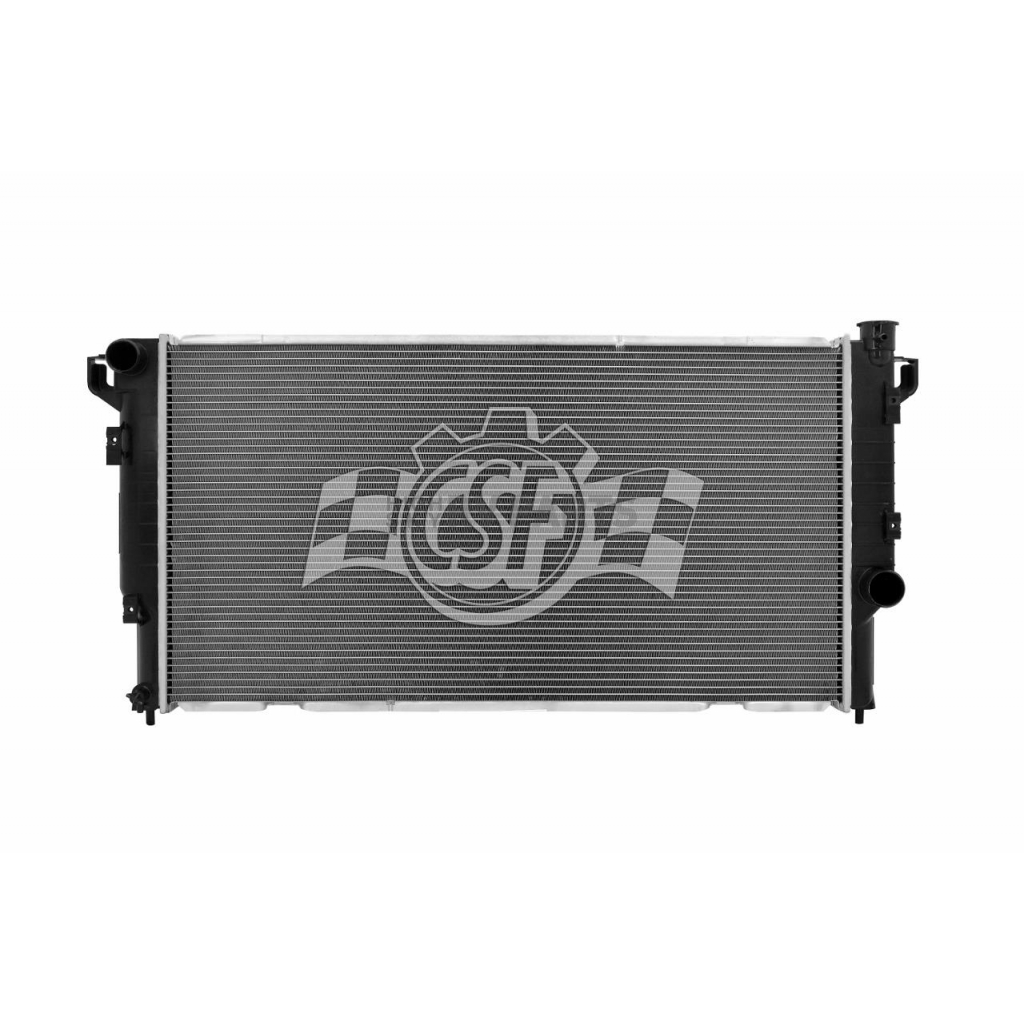

CSF Radiator 3273
Color
Black/ Silver
Core Depth (IN)
2-1/16 Inch
Core Height (IN)
19-3/16 Inch
Core Length (IN)
36 Inch
Core Material
Aluminum
Core Rows
Two
Flow Direction
Crossflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Left
Inlet Size (IN)
1-3/4 Inch
Share this page
CSF Radiator
Radiator; Overall Dimensions 47-9/16 Inch Length X 24-3/4 Inch Height; Core Dimensions 36 Inch Length X 19-3/16 Inch Height X 2-1/16 Inch Depth; Two Row; Crossflow; Aluminum; 1-3/4 Inch Top Left Inlet And 1-3/4 Inch Bottom Right Outlet; Without Transmission Cooler; Without Radiator Cap
MPN: 3273
CSF Radiators are designed and built to High Performance Standards. Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation. We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.
Flow Direction: Crossflow
Core Rows: Two
Core Length (IN): 36 Inch
Core Height (IN): 19-3/16 Inch
Core Depth (IN): 2-1/16 Inch
Core Material: Aluminum
Inlet Hose Location: Top Left
Inlet Size (IN): 1-3/4 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1-3/4 Inch
Color: Black/ Silver
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Features
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
- Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
- Tubes Welded Type Or Latest Generation "B-Tube" Design
- Fins High Performance "Multi-Louvered Design" OEM Spec
- 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
- High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
- Drop-In Fit
- All Components Are Installed, Torqued, And Tested On Radiator During Assembly
- No Supplier Warranty
Specifications of CSF Radiator 3273 | |
Color | Black/ Silver |
Core Depth (IN) | 2-1/16 Inch |
Core Height (IN) | 19-3/16 Inch |
Core Length (IN) | 36 Inch |
Core Material | Aluminum |
Core Rows | Two |
Flow Direction | Crossflow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | Top Left |
Inlet Size (IN) | 1-3/4 Inch |
Outlet Hose Location | Bottom Right |
Outlet Size (IN) | 1-3/4 Inch |
Tank Material | Plastic |
With Engine Oil Cooler | No |
With Radiator Cap | No |
With Transmission Cooler | Yes |
1994 Dodge Ram 2500
1995 Dodge Ram 2500
1995 Dodge Ram 2500
1997 Dodge Ram 2500
1998 Dodge Ram 2500
1999 Dodge Ram 2500
2000 Dodge Ram 2500
2001 Dodge Ram 2500
2002 Dodge Ram 2500
1998 Dodge Ram 2500
1999 Dodge Ram 2500
2000 Dodge Ram 2500
2001 Dodge Ram 2500
2002 Dodge Ram 2500
1994 Dodge Ram 3500
1995 Dodge Ram 3500
1995 Dodge Ram 3500
1997 Dodge Ram 3500
1998 Dodge Ram 3500
1999 Dodge Ram 3500
2000 Dodge Ram 3500
2001 Dodge Ram 3500
2002 Dodge Ram 3500
1998 Dodge Ram 3500
1999 Dodge Ram 3500
2000 Dodge Ram 3500
2001 Dodge Ram 3500
2002 Dodge Ram 3500
