CSF Radiator 2850
Color
Silver
Core Depth (IN)
2-1/16 Inch
Core Height (IN)
13-3/4 Inch
Core Length (IN)
27-1/16 Inch
Core Material
Aluminum
Core Rows
Two
Finish
Bare
Flow Direction
Down Flow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Right
Share this page
CSF Radiator

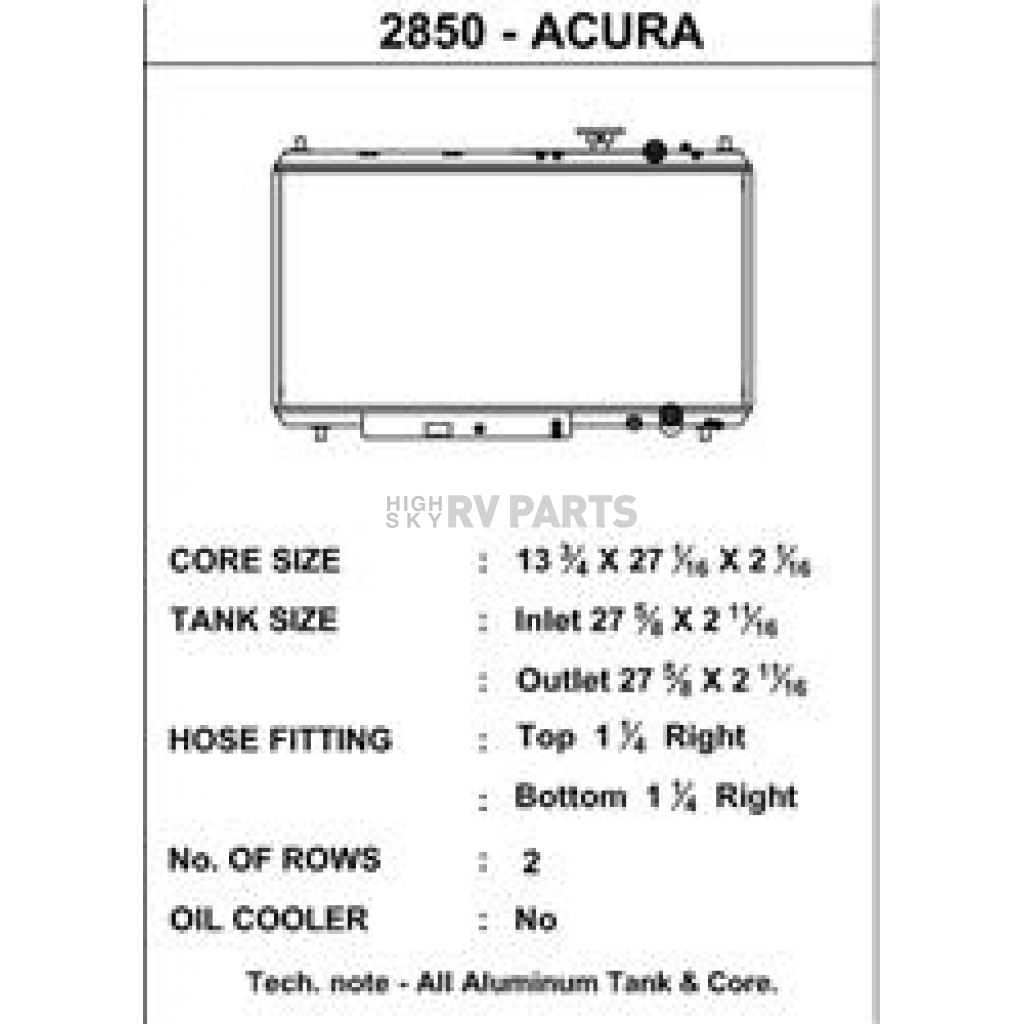

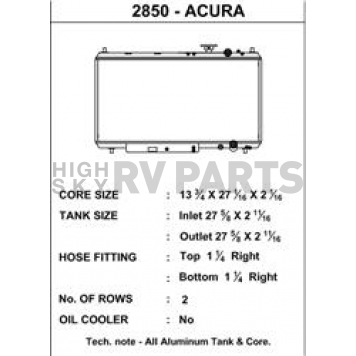

Radiator; Overall Dimensions 27-5/8 Inch Length X 19-1/8 Inch Height; Core Dimensions 27-1/16 Inch Length X 13-3/4 Inch Height X 2-1/16 Inch Depth; Two Row; Downflow; Aluminum; 1-1/4 Inch Top Right Inlet And 1-1/4 Inch Bottom Right Outlet; Without Transmission Cooler; With Radiator Cap
MPN: 2850
CSF offers the widest variety of automotive radiator models servicing over 3,200 applications including every brand from Acura to Volkswagen. Whether your radiator is Copper-Brass, Plastic-Copper-Brass, Plastic-Aluminum, or All Aluminum, CSF has you covered with the same materials and style as OE. CSF manufactures the highest quality aftermarket replacement radiators, with the strongest and most efficient components available in the industry. All CSF radiators undergo a rigorous testing process in our state-of-the-art testing lab.
Flow Direction: Down Flow
Overall Length (IN): 27-5/8 Inch
Overall Height (IN): 19-1/8 Inch
Overall Depth (IN): OEM
Core Rows: Two
Core Length (IN): 27-1/16 Inch
Core Height (IN): 13-3/4 Inch
Core Depth (IN): 2-1/16 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1-1/4 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1-1/4 Inch
Finish: Bare
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Features
- CNC Machined Brackets And Fittings
- B-Tube Technology
- High Performance Multi-Louvered Fin
- Racing Style Aluminum Drain Plug
- OE Radial And Deep Drawn Aluminum End Tanks
- Wind Tunnel, Burst Pressure, And Vibration Testing
- Drop-In Fitment Requiring No Modifications
- 1 Hour Hand Polish Mirror Finish
- Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection
- Limited 90 Day Warranty
Specifications of CSF Radiator 2850 | |
Color | Silver |
Core Depth (IN) | 2-1/16 Inch |
Core Height (IN) | 13-3/4 Inch |
Core Length (IN) | 27-1/16 Inch |
Core Material | Aluminum |
Core Rows | Two |
Finish | Bare |
Flow Direction | Down Flow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | Top Right |
Inlet Size (IN) | 1-1/4 Inch |
Outlet Hose Location | Bottom Right |
Outlet Size (IN) | 1-1/4 Inch |
Overall Depth (IN) | OEM |
Overall Height (IN) | 19-1/8 Inch |
Overall Length (IN) | 27-5/8 Inch |
Tank Material | Aluminum |
With Engine Oil Cooler | No |
With Radiator Cap | Yes |
With Transmission Cooler | No |
1994 Acura Integra
1995 Acura Integra
1996 Acura Integra
1997 Acura Integra
1998 Acura Integra
1999 Acura Integra
2000 Acura Integra
2001 Acura Integra
1995 Acura Integra
1996 Acura Integra
1997 Acura Integra
1998 Acura Integra
1999 Acura Integra
2000 Acura Integra
2001 Acura Integra
