CSF Radiator 2708
Core Depth (IN)
2-7/8 Inch
Core Height (IN)
15-3/4 Inch
Core Length (IN)
24 Inch
Core Material
Copper
Core Rows
Four
Flow Direction
Down Flow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Left
Inlet Size (IN)
1-1/2 Inch
Outlet Hose Location
Bottom Right
Share this page

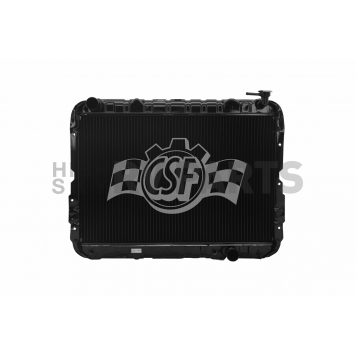

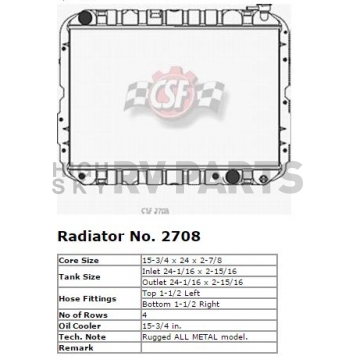

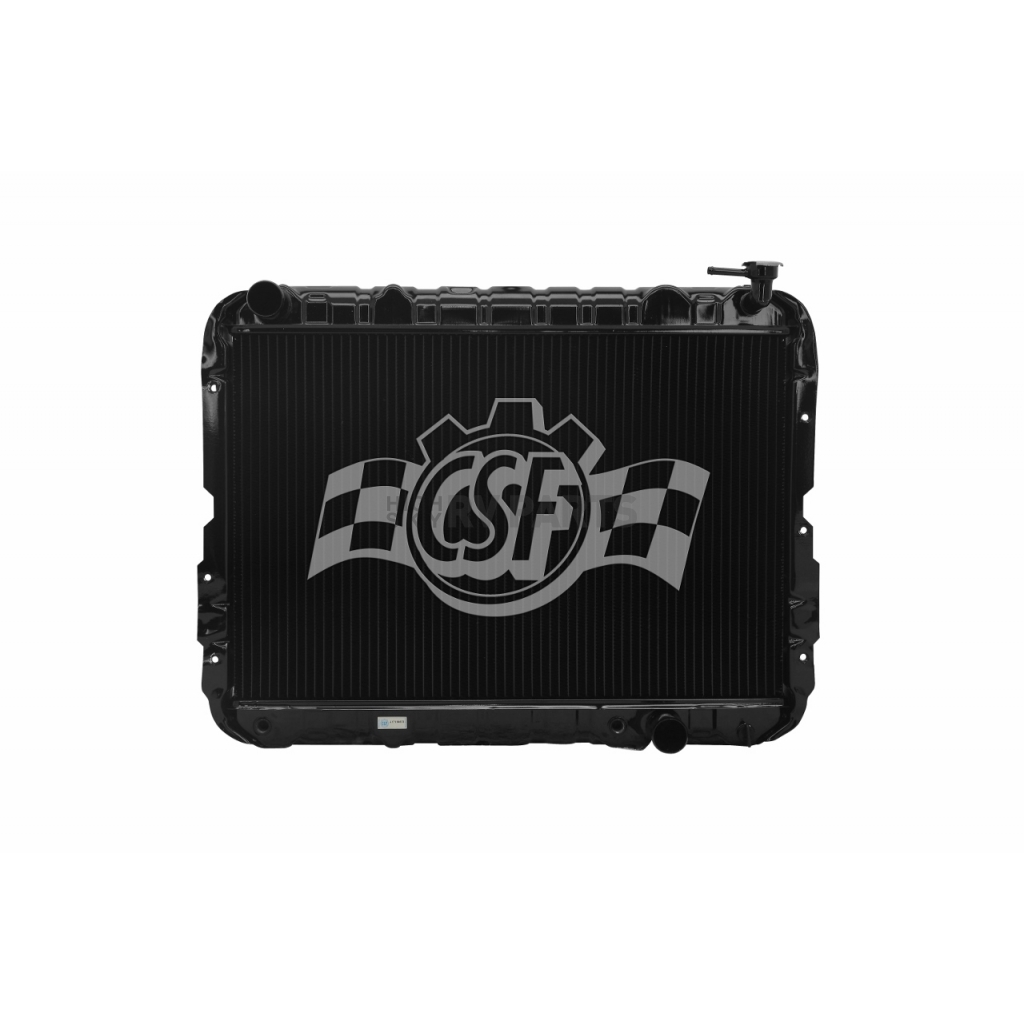

CSF Radiator
Radiator; Overall Dimensions 24-1/16 Inch Length X 21-5/8 Inch Height; Core Dimensions 24 Inch Length X 15-3/4 Inch Height X 2-7/8 Inch Depth; Four Row; Downflow; Copper Core/Brass Tank; 1-1/2 Inch Top Left Inlet And 1-1/2 Inch Bottom Right Outlet; With Transmission Cooler; Without Radiator Cap
MPN: 2708
CSF offers the widest variety of automotive radiator models servicing over 3,200 applications including every brand from Acura to Volkswagen. Whether your radiator is Copper-Brass, Plastic-Copper-Brass, Plastic-Aluminum, or All Aluminum, CSF has you covered with the same materials and style as OE. CSF manufactures the highest quality aftermarket replacement radiators, with the strongest and most efficient components available in the industry. All CSF radiators undergo a rigorous testing process in our state-of-the-art testing lab.
Flow Direction: Down Flow
Overall Length (IN): 24-1/16 Inch
Overall Height (IN): 21-5/8 Inch
Overall Depth (IN): OEM
Core Rows: Four
Core Length (IN): 24 Inch
Core Height (IN): 15-3/4 Inch
Core Depth (IN): 2-7/8 Inch
Core Material: Copper
Inlet Hose Location: Top Left
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1-1/2 Inch
Tank Material: Brass
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Features
- CNC Machined Brackets And Fittings
- B-Tube Technology
- High Performance Multi-Louvered Fin
- Racing Style Aluminum Drain Plug
- OE Radial And Deep Drawn Aluminum End Tanks
- Wind Tunnel, Burst Pressure, And Vibration Testing
- Drop-In Fitment Requiring No Modifications
- 1 Hour Hand Polish Mirror Finish
- Wind Tunnel Tested For Optimal Radiator Core Cooling Efficiency. Burst Pressure And Impulse Cycle Tested For Strength. Salt Spray Tested For Corrosion Protection
- Limited 2 Year Warranty
Specifications of CSF Radiator 2708 | |
Core Depth (IN) | 2-7/8 Inch |
Core Height (IN) | 15-3/4 Inch |
Core Length (IN) | 24 Inch |
Core Material | Copper |
Core Rows | Four |
Flow Direction | Down Flow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | Top Left |
Inlet Size (IN) | 1-1/2 Inch |
Outlet Hose Location | Bottom Right |
Outlet Size (IN) | 1-1/2 Inch |
Overall Depth (IN) | OEM |
Overall Height (IN) | 21-5/8 Inch |
Overall Length (IN) | 24-1/16 Inch |
Tank Material | Brass |
With Engine Oil Cooler | No |
With Radiator Cap | No |
With Transmission Cooler | Yes |
1981 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1984 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1984 Toyota Land Cruiser
1986 Toyota Land Cruiser
1988 Toyota Land Cruiser
