CSF Radiator 2576

Brand: CSF
0 reviews
  • Have a product question? Ask us
  • Part Number: 2576
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $438.89
Price: $417.99
You Save: $20.90
Color
Black
Core Depth (IN)
1-1/4 Inch
Core Height (IN)
20 Inch
Core Length (IN)
18-1/8 Inch
Core Material
Copper
Core Rows
Two
Flow Direction
Downflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
Top Right
Inlet Size (IN)
1-1/4 Inch
Share this page

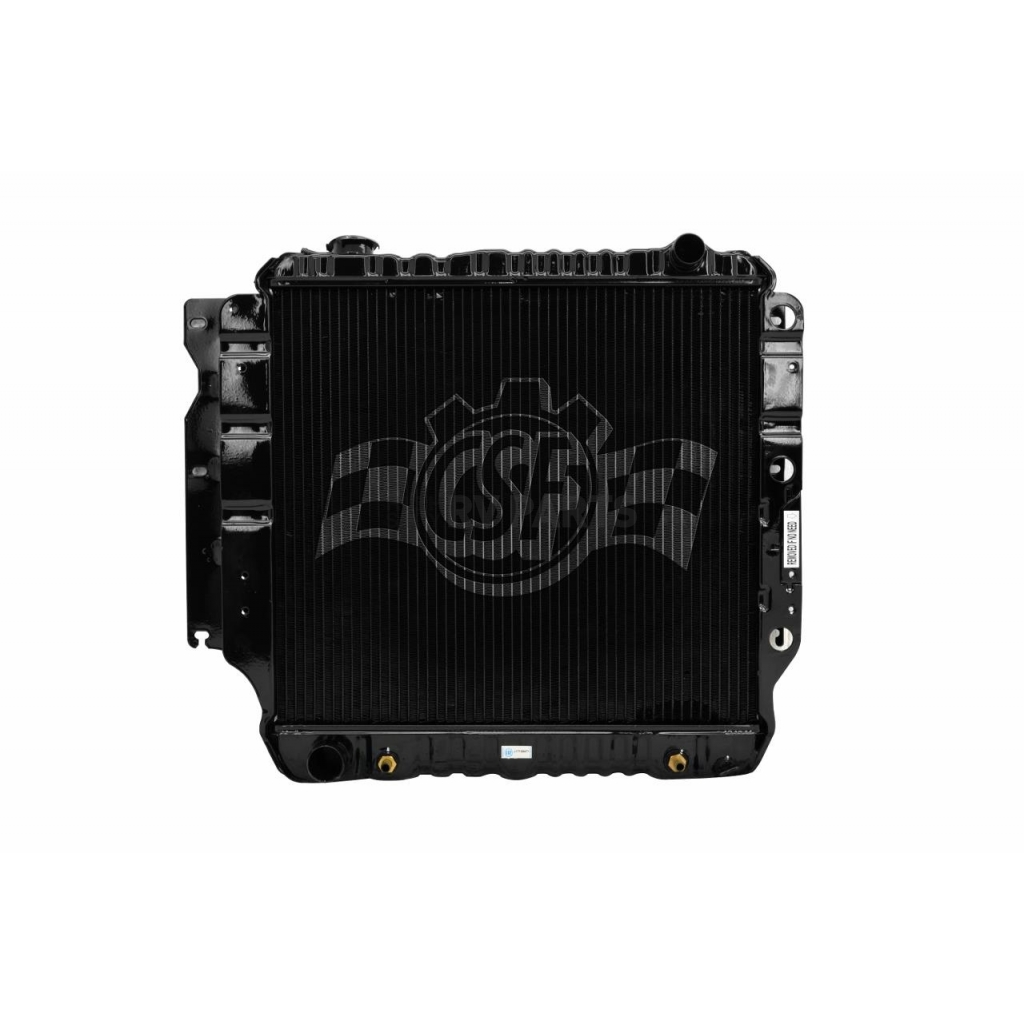

CSF Radiator

Radiator; Overall Dimensions 25-5/16 Inch Length X 28-1/16 Inch Height; Core Dimensions 18-1/8 Inch Length X 20 Inch Height X 1-1/4 Inch Depth; Two Row; Downflow; Copper; 1-1/4 Inch Top Right Inlet And 1-1/2 Inch Bottom Left Outlet; With Transmission Cooler; Without Radiator Cap

MPN: 2576

CSF Radiators are designed and built to High Performance Standards. Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation. We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.
Flow Direction: Downflow
Core Rows: Two
Core Length (IN): 18-1/8 Inch
Core Height (IN): 20 Inch
Core Depth (IN): 1-1/4 Inch
Core Material: Copper
Inlet Hose Location: Top Right
Inlet Size (IN): 1-1/4 Inch
Outlet Hose Location: Bottom Left
Outlet Size (IN): 1-1/2 Inch
Color: Black
Tank Material: Brass
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No

Features

  • OEM Specified Plastic Tank-Aluminum Core Construction
  • Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength And Durability
  • Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees Fahrenheit
  • Tubes Welded Type Or Latest Generation "B-Tube" Design
  • Fins High Performance "Multi-Louvered Design" OEM Spec
  • 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
  • High Performance Transmission Cooler With Special Built-In Turburlator, When Applicable
  • Drop-In Fit
  • All Components Are Installed, Torqued, And Tested On Radiator During Assembly
  • No Supplier Warranty
Specifications of CSF Radiator 2576
Color Black
Core Depth (IN) 1-1/4 Inch
Core Height (IN) 20 Inch
Core Length (IN) 18-1/8 Inch
Core Material Copper
Core Rows Two
Flow Direction Downflow
Includes Fittings No
Includes Mounting Hardware No
Inlet Hose Location Top Right
Inlet Size (IN) 1-1/4 Inch
Outlet Hose Location Bottom Left
Outlet Size (IN) 1-1/2 Inch
Tank Material Brass
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler Yes

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ

1987 Jeep Wrangler YJ
1988 Jeep Wrangler YJ
1989 Jeep Wrangler YJ
1990 Jeep Wrangler YJ
1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
