Crane Valve Spring Retainer - 999712

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 999712
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $18.89
Price: $17.99
You Save: $0.90
Inner Diameter Of Retainer (IN)
0.685 Inch
Intermediate Diameter Of Retainer (IN)
1.06 Inch
Lock Angle
10 Degree
Material
Steel
Outer Diameter Of Retainer (IN)
1.425 Inch
Quantity
Set Of 2
Spring Type
Single/ Dual
Valve Spring Diameter (IN)
1.430 To 1-1/2 Inch
Valve Stem Size
5/16 Inch/ 11/32 Inch/ 3/8 Inch
Share this page

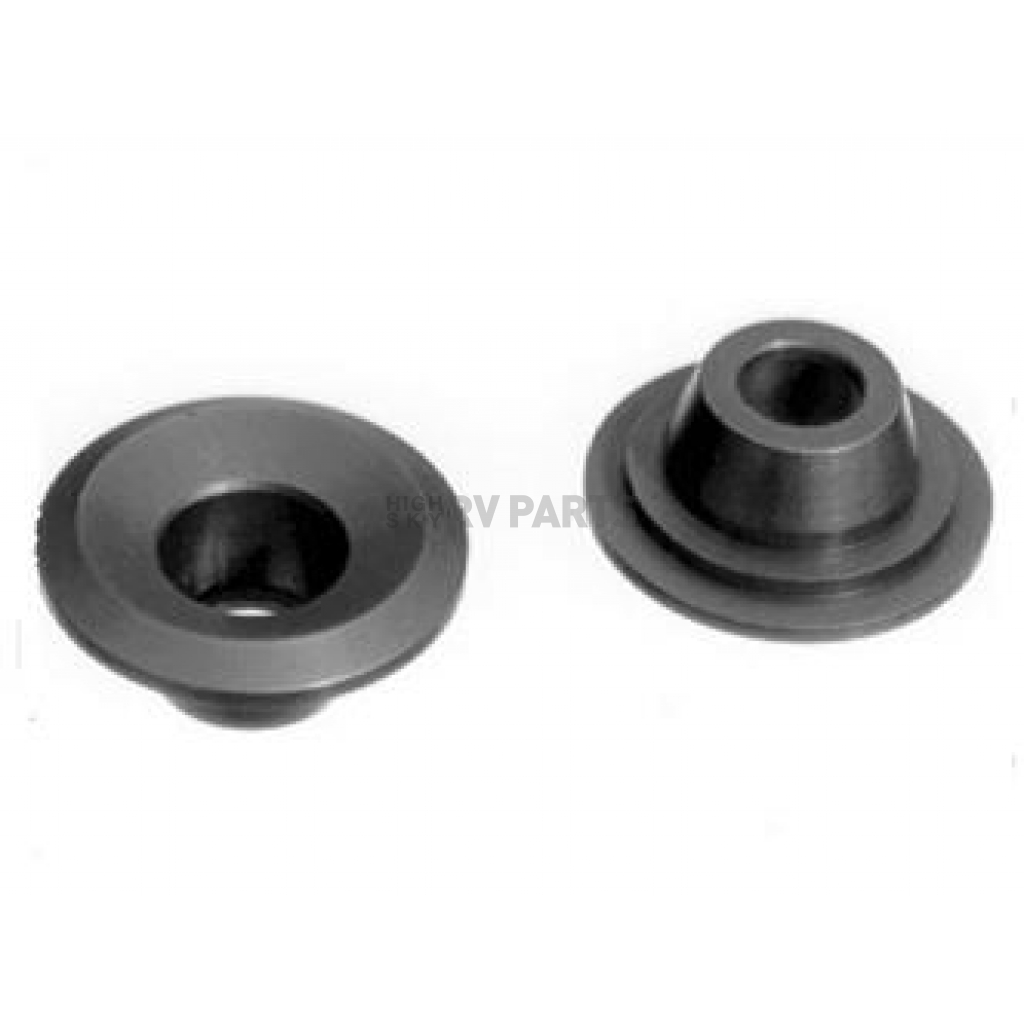

Crane Valve Spring Retainer

Valve Spring Retainer; 1.430-1.500 Inch Valve Spring Diameter; 1.425 Inch/ 1.060 Inch/ 0.685 Inch Retainer Dimensions; Adds 0.030 Installed Height With 5/16 Valves/ 0.055 Installed Height With 11/32 Valves/ 0.045 Installed Height With 3/8 Valves; 10 Degree Lock Angle; Single Or Dual Spring; All Valve Stem Sizes; Steel; Set Of 2

MPN: 999712

Our Multi Fit 10 Degree retainers and locks differ from the conventional 10 Degree items, as we use a smaller outside diameter lock, enabling the retainer to have a greater cross section in the critical area separating the inner spring steps from the tapered center hole. This provides superior strength and stability when compared to the competition, and these retainers are designed for use only with our Multi Fit locks. Compatible locks are offered for 8 Millimeter, 5/16 Inch, 11/32 Inch and 3/8 Inch valve stems in standard square groove and bead groove configurations.
Material: Steel
Lock Angle: 10 Degree
Valve Stem Size: 5/16 Inch/ 11/32 Inch/ 3/8 Inch
Spring Type: Single/ Dual
Valve Spring Diameter (IN): 1.430 To 1-1/2 Inch
Outer Diameter Of Retainer (IN): 1.425 Inch
Intermediate Diameter Of Retainer (IN): 1.06 Inch
Inner Diameter Of Retainer (IN): 0.685 Inch
Quantity: Set Of 2

Features

  • Uses A Smaller Outside Diameter Lock, Enabling The Retainer To Have A Greater Cross Section In The Critical Area Separating The Inner Spring Steps From The Tapered Center Hole
  • Provides Superior Strength And Stability When Compared To The Competition
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 999712
Inner Diameter Of Retainer (IN) 0.685 Inch
Intermediate Diameter Of Retainer (IN) 1.06 Inch
Lock Angle 10 Degree
Material Steel
Outer Diameter Of Retainer (IN) 1.425 Inch
Quantity Set Of 2
Spring Type Single/ Dual
Valve Spring Diameter (IN) 1.430 To 1-1/2 Inch
Valve Stem Size 5/16 Inch/ 11/32 Inch/ 3/8 Inch
