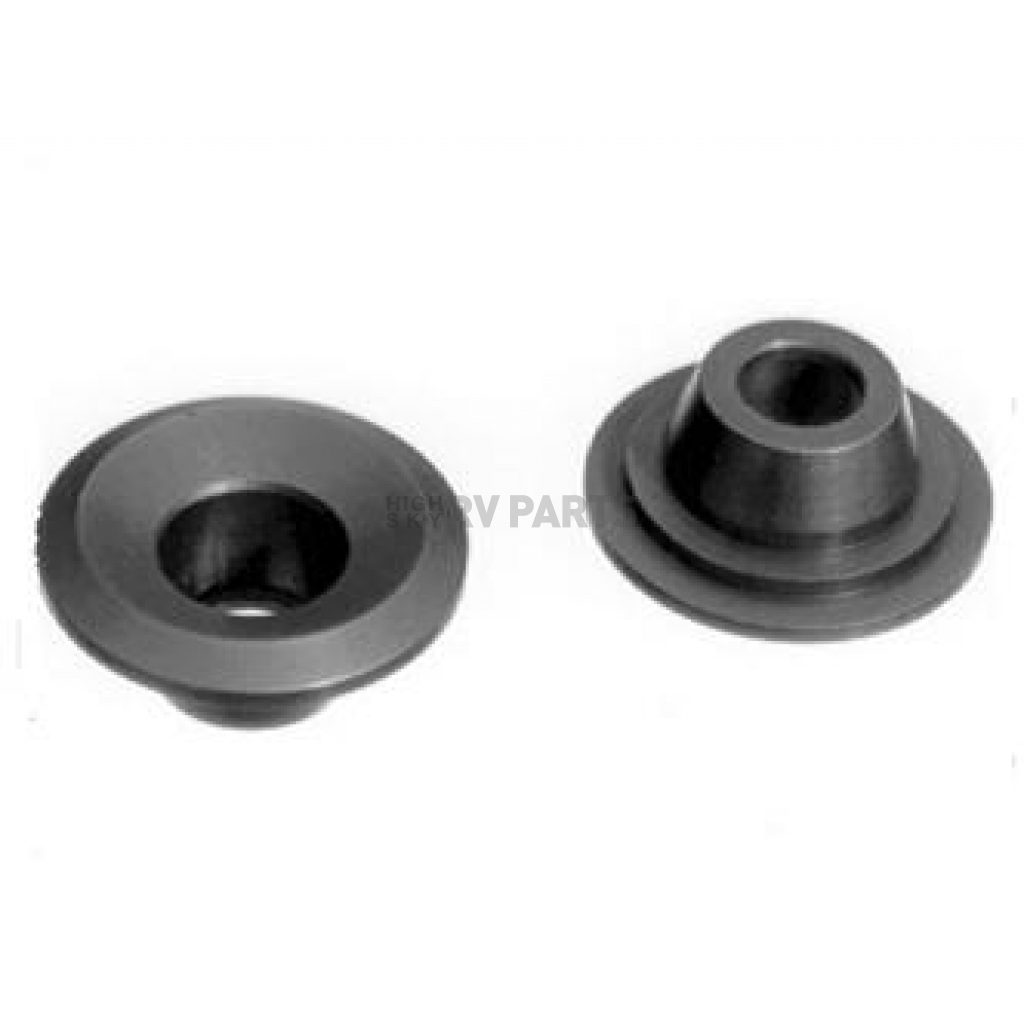

Crane Valve Spring Retainer - 9991516

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 9991516
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $100.79
Price: $95.99
You Save: $4.80
Inner Diameter Of Retainer (IN)
0.607 Inch
Intermediate Diameter Of Retainer (IN)
0.867 Inch
Lock Angle
7 Degree
Material
Steel
Outer Diameter Of Retainer (IN)
1.203 Inch
Quantity
Set Of 16
Spring Type
Single/ Dual
Valve Spring Diameter (IN)
1.225 Inch To 1.250 Inch
Valve Stem Size
11/32 Inch
Share this page

Crane Valve Spring Retainer

Valve Spring Retainer; For Use With 1.225 Inch To 1.250 Inch Outside Diameter Valve Springs; 1.203 Outside Diameter; 0.015 Inch Shorter Installed Height; 7 Degree Lock Angle; Single Or Dual Spring; 11/32 Inch Valve Stem; Steel; Set Of 16

MPN: 9991516

Crane cams’ steel valve spring retainers are precision manufactured from high quality bar stock steel, heat treated for maximum strength and durability and black oxided for corrosion resistance.
Material: Steel
Lock Angle: 7 Degree
Valve Stem Size: 11/32 Inch
Spring Type: Single/ Dual
Valve Spring Diameter (IN): 1.225 Inch To 1.250 Inch
Outer Diameter Of Retainer (IN): 1.203 Inch
Intermediate Diameter Of Retainer (IN): 0.867 Inch
Inner Diameter Of Retainer (IN): 0.607 Inch
Quantity: Set Of 16

Features

  • Multi-Fit Style Has The Same Basic Tapered Inner Diameter Dimensions As A Normal 7 Degree Steel Retainer Made For A 3/8 Inch Valve Stem Diameter
  • Retainers Are Manufactured From Premium Quality Bar Stock Material
  • By Using The Special Thick Multi-Fit Valve Stem Locks, These Retainers Can Be Used With Either 5/16 Inch Or 11/32 Inch Valve Stem Diameters
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 9991516
Inner Diameter Of Retainer (IN) 0.607 Inch
Intermediate Diameter Of Retainer (IN) 0.867 Inch
Lock Angle 7 Degree
Material Steel
Outer Diameter Of Retainer (IN) 1.203 Inch
Quantity Set Of 16
Spring Type Single/ Dual
Valve Spring Diameter (IN) 1.225 Inch To 1.250 Inch
Valve Stem Size 11/32 Inch
