Crane Valve Spring Retainer - 996812

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 996812
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $66.14
Price: $62.99
You Save: $3.15
Inner Diameter Of Retainer (IN)
0.635 Inch
Intermediate Diameter Of Retainer (IN)
1.135 Inch
Lock Angle
7 Degree
Material
Titanium
Outer Diameter Of Retainer (IN)
1-1/2 Inch
Quantity
Set Of 2
Spring Type
Triple
Valve Spring Diameter (IN)
1.560 To 1.630 Inch
Valve Stem Size
11/32 Inch
Share this page

Crane Valve Spring Retainer

Valve Spring Retainer; Posi-Stop; 1.560-1.630 Inch Valve Spring Diameter; 1.500 Inch/ 1.135 Inch/ 0.635 Inch Retainer Dimensions; Adds 0.165 Inch Installed Height; 7 Degree Lock Angle; Triple Spring; 11/32 Inch Valve Stem; Titanium; Set Of 2 With Valve Stem Locks

MPN: 996812

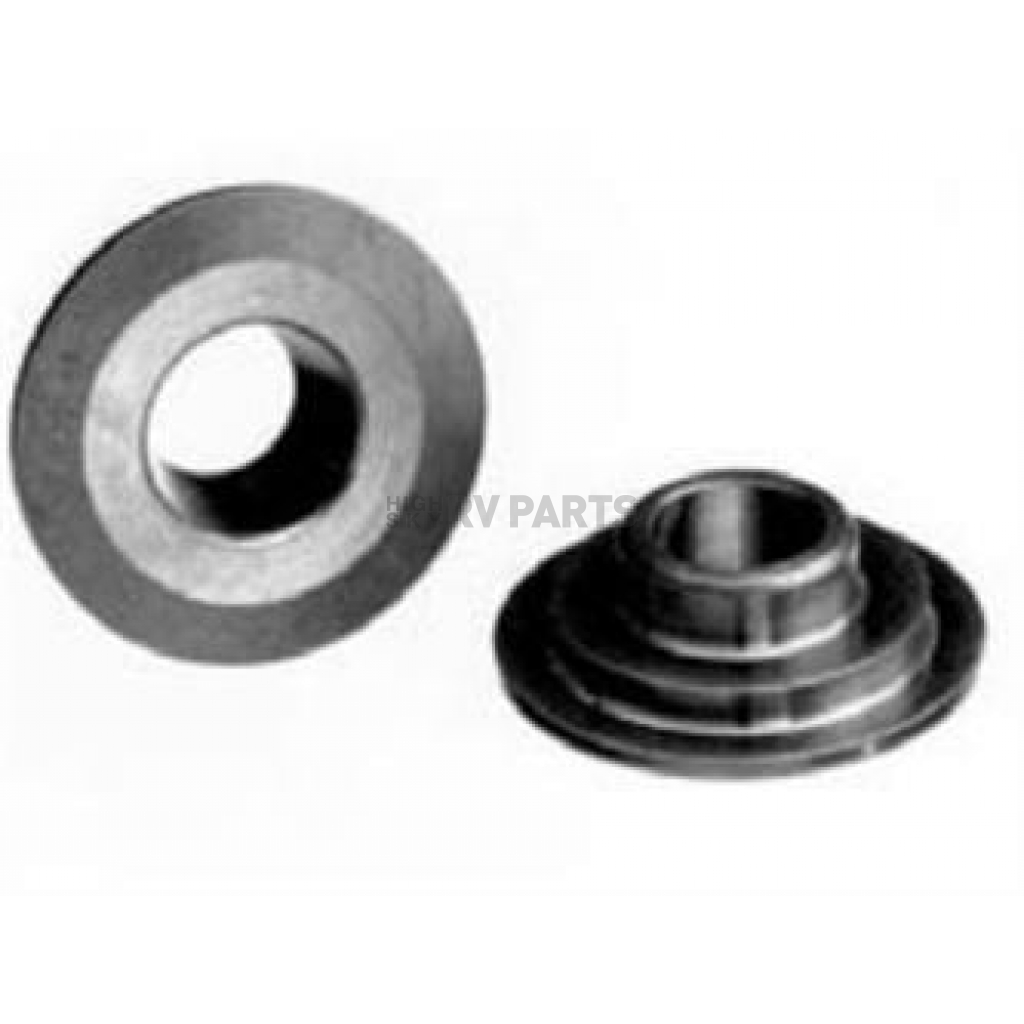

Crane Cams’ Posi-Stop titanium retainers feature the patented stepped design that reinforces the bottom of the retainer. This both significantly increases the integral strength of the retainer, and eliminates the valve lock’s ability to pull through the bottom of the retainer. "Posi-Stop" retainers are made for 5/16 Inch, 11/32 Inch, or 3/8 Inch valve stem diameters with 7 Degree taper, and come with matching Crane machined valve stem locks.
Material: Titanium
Lock Angle: 7 Degree
Valve Stem Size: 11/32 Inch
Spring Type: Triple
Valve Spring Diameter (IN): 1.560 To 1.630 Inch
Outer Diameter Of Retainer (IN): 1-1/2 Inch
Intermediate Diameter Of Retainer (IN): 1.135 Inch
Inner Diameter Of Retainer (IN): 0.635 Inch
Quantity: Set Of 2

Features

  • Absolutely The Strongest Titanium Retainer
  • Feature The Patented Stepped Design That Reinforces The Bottom Of The Retainer
  • Increases The Integral Strength Of The Retainer, And Eliminates The Valve Lock’s Ability To Pull Through The Bottom Of The Retainer
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Valve Spring Retainer - 996812
Inner Diameter Of Retainer (IN) 0.635 Inch
Intermediate Diameter Of Retainer (IN) 1.135 Inch
Lock Angle 7 Degree
Material Titanium
Outer Diameter Of Retainer (IN) 1-1/2 Inch
Quantity Set Of 2
Spring Type Triple
Valve Spring Diameter (IN) 1.560 To 1.630 Inch
Valve Stem Size 11/32 Inch
